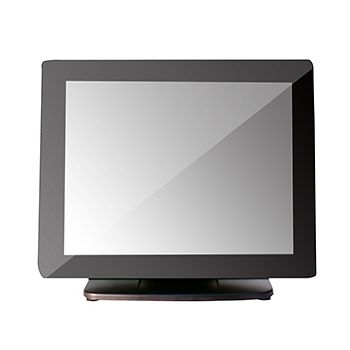

Posiflex XT-3815-G2 15" POS Terminal

Overview

Powered by Intel processor Elkhart Lake, the XT-3815-G2 features a 15" bezel-free true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, the XT-3815-G2 looks right at home at any elegantly decorated store. And more than just good looks, the XT-3815-G2 also offers ample performance and flexibility to satisfy the most demanding of daily POS operations.

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

15” bezel-free true-flat PCAP touch screen
Intel Elkhart Lake Celeron J6412
DDR4 SO-DIMM x 2, max. 32GB
128GB M.2 SSD
Fully adjustable stand and viewing options
Tidy cable management
IP65 rated

Sleek Look

Slimmer than ever! Every curve and detail of the XT-3815-G2 is carefully thought out to make itself one of the most visually desirable terminals in the market.

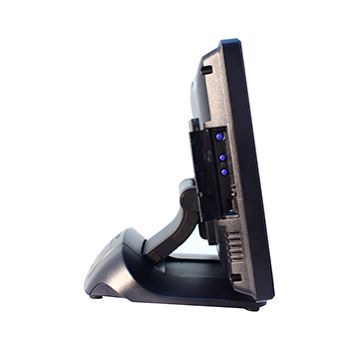

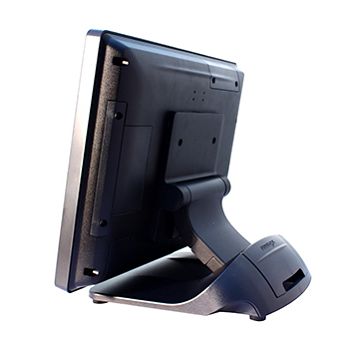

Multi-Position Folding Base

The patented foldable base of the XT-3815-G2 enables users to adjust the screen to a height and angle of their choice, providing unparalleled flexibility. (U.S. Patent 9004436)

Performance

The XT-3815-G2 is able to equipped with Intel Elkhart Lake processor that is powerful enough to process anything throws at it without even breaking a sweat.

Fanless Design

Solve the fan maintenance issue and provide silent mode operation, which is ideally suited for high-end boutique stores or hospital environments.

GEN8E Base

Optional GEN8E Base (U.S. Patent 9004436) that integrates internal power adaptor and PoweredUSB port into the base stand, which keeps counters clutter-free.

Specification	XT-3815-G2
Processor	Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory	DDR4 SO-DIMM x 2, max. 32GB
Storage Device	M.2 connector [supporting AHCI mode] x 2
Power Supply	12V/60W
TPM Support	Yes, TPM 2.0
OS Support	Windows 10 IoT 64 bit

Display & Touch	XT-3815
LCD	15" TFT LCD
Resolution	1024 x 768
Touch	True-flat PCAP touch with multi-touch support (IP65 on front panel)

I/O Expansion	XT-3815
Serial Port	6, DB9 x 3 + RJ50 x 1 + 2 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM 4 (all converter cables are optional)
Parallel Port	1, via optional conversion cable through service window
Standard USB Port	7, USB 3.0 x 3 + USB 2.0 x 4
PoweredUSB Port	Optional 24V x 1 + 12V x 3 via GEN8E base
LAN Port	10/100/1000 Mb x 1
Display Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable
PS/2 Port	1, via optional conversion cable through service window
UPS Port	Yes, battery optional
Audio	Internal 2W speaker x 1
Expansion Slot	M.2 slot x 1
