Bixolon XD5-40d Direct Thermal Desktop Barcode and Label Printer

Make an enquiry

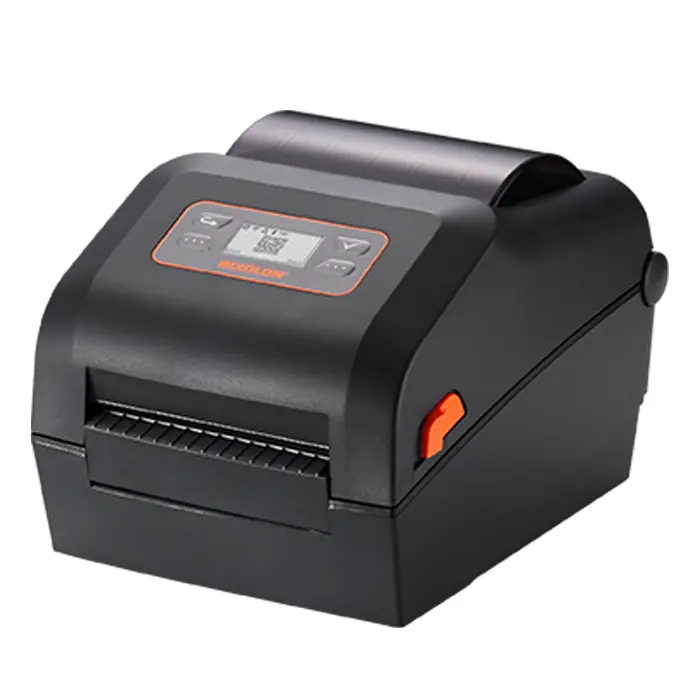

XD5-40d POS Printer

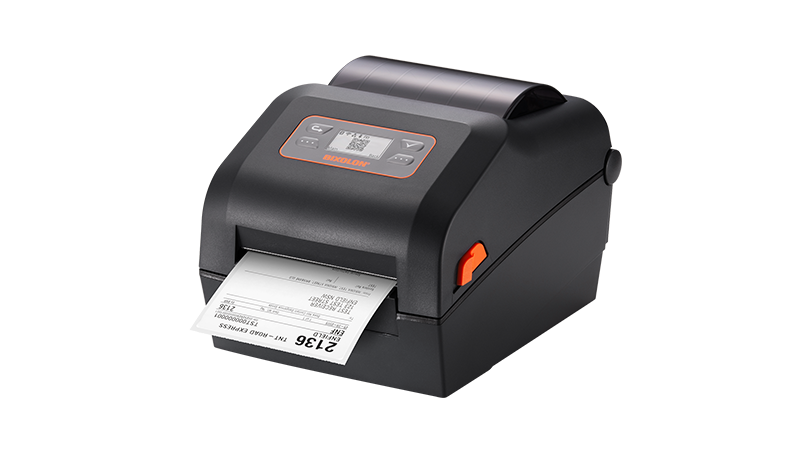

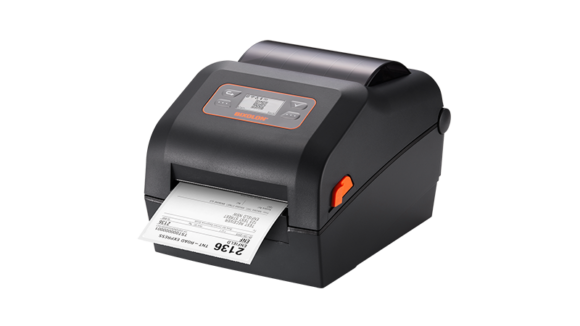

XD5-40d POS Printer Printing

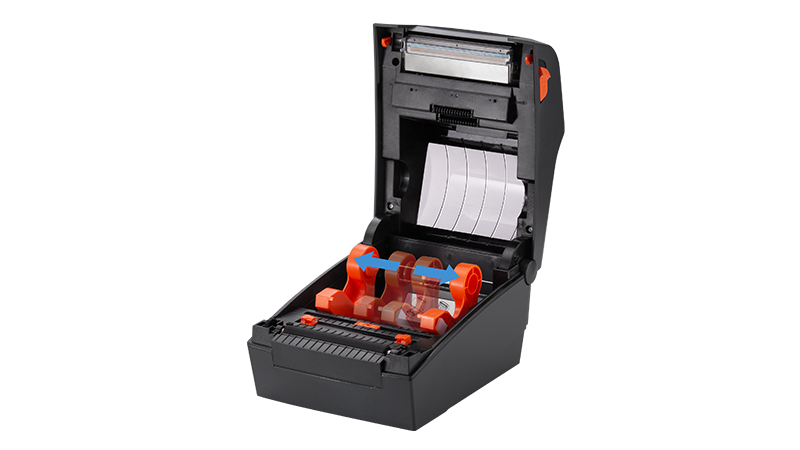

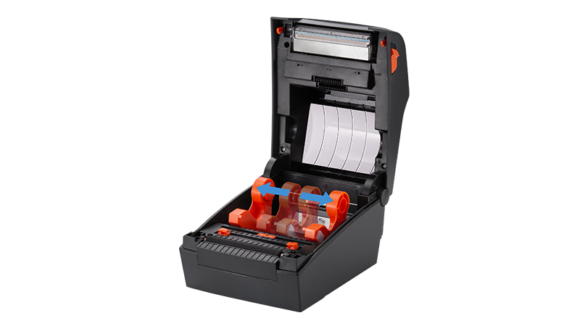

XD5-40d POS Printer Open

Overview

The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Drivers and utilities can be found here, see more about the Bixolon XD5-40d in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Print speeds of up to 7 ips
  • 300 dpi high resolution choice for fine print quality
  • Dual-band WLAN (5 GHz and 2.4 GHz)
  • An adjustable media guide and a holder
  • Dual-mode Bluetooth V4.1 Classic and LE

The XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.

Print Characteristics
Print Method Thermal Transfer, Direct Thermal
Print Speed "XD5-40d: Up to 7 ips (178 mm/sec)XD5-43d: Up to 5 ips (127 mm/sec) XD5-40t: Up to 6 ips (152 mm/sec)XD5-43t: Up to 4 ips (102 mm/sec) "
Print Resolution "XD5-40d, 40t : 203 dpiXD5-43d, 43t : 300 dpi"
Print Width "XD5-40t: Up to 108 mm XD5-43t: Up to 105.7 mm"
Print Length Up to 1,000 mm
Sensor Transmissive(Fixed), Reflective(Adjustable), Head Open
Media Characteristics
Media Type Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width 15~118mm
Media Roll Diameter Up to 127mm
Media Thickness 0.06 ~ 0.20 mm
Supply Method Easy Paper Loading
Inner Core 25.4 ~ 38.1mm
Ribbon Characteristics
Ribbon Type Wax, Wax/Resin, Resin, Outside
Ribbon Width 33 ~ 110 mm
Ribbon Length Up to 300 m
Core Inner Diameter 25.4 mm, 12.7 mm
Physical Characteristics
Dimensions (WxDxH) "XD5-40d: 194 x 248 x 169 mm (7.64 x 9.76 x 6.65 inch)XD5-40t:210 x 284 x 188 mm (8.3 x 11.2 x 7.4 inch)"
Weight "XD5-40d: 1.89kg (4.17 lbs.)XD5-40t: 2.48kg (5.46 lbs.)"
Electrical "EnergyStar Certified, External Power Adaptor 100-240V AC, 50/60Hz"
Display "Standard: NoneOptional: FSTN LCD (200 x 100 pixels)"
Performance Characteristics
Memory "STD:64 MB SDRAM, 128 MB FlashOptional: ① 64 MB SDRAM, 128 MB Flash ② 256 MB SDRAM, 256 MB Flash"
Interface "Standard: USB +USB HostOptional: ① USB+USB Host+Serial+Ethernet ② USB+USB Host+Serial+Ethernet+WLAN ③ USB+USB Host+Serial+Ethernet+Bluetooth------------------------------------------------------------------WLAN: Built-in type, 802.11a/b/g/n (2.4G and 5G)Bluetooth: Built-in type, V4.2 Classic / LE, Class 1, MFi certifiedEthernet: 10/100Mbps"
Real Time Clock Supported(Option)
Environment Characteristics
Temperature "Operating:XD5-40d: 0 ~ 40℃ (32 ~ 104℉)XD5-40t: 5 ~ 40℃ (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)"
Humidity "Operating: 10 ~ 80% RHStorage 10 ~ 90% RH"
Fonts/Graphics/Symbologies
Fonts 10 SLCS™ / One SLCS™ / 16 BPL-Z™ / One BPL-Z™ / 5 BPL-E™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies "1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 "
Accessories
Standard USB cable
Optional Peeler, Auto Cutter, External Paper Supply, Serial cable
