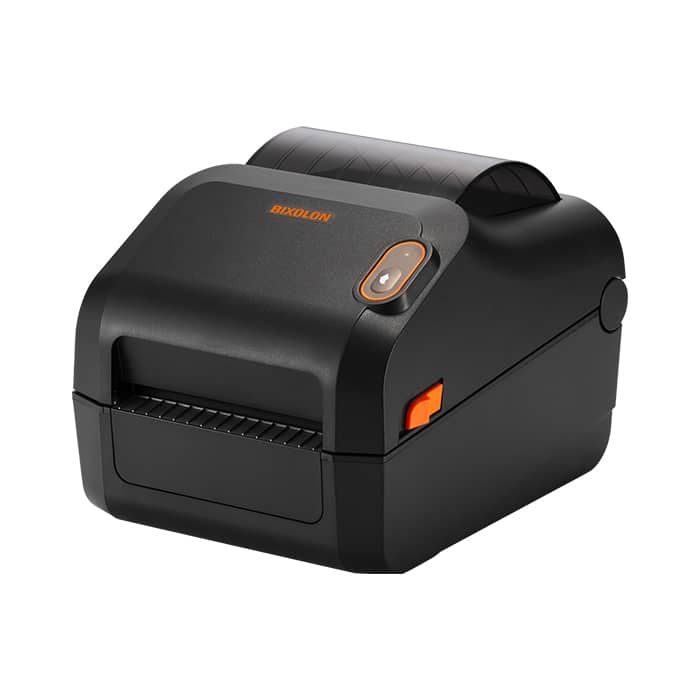

Bixolon XD3-40d Direct Thermal Desktop Barcode and Label Printer

Overview

The Bixolon XD3-40d is a 4-inch (118mm) Direct Thermal Desktop Barcode and Label Printer featuring a compact design, key industry features and competitive pricing, ideal for labelling applications within Manufacturing, Retail, Warehousing and Logistics markets. Drivers and utilities can be found here, see more about the Bixolon XD3-40d in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

Printing speed up to 5 ips (127 mm/sec)
Fully compatible with market-leading programming languages
Supporting stand-alone configuration mode by visual LED
Smart switch programming languages without setting the mode
Easy paper loading with adjustable paper guide and holder

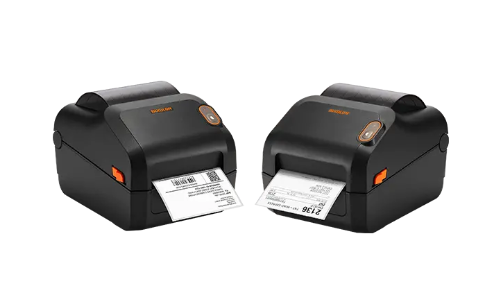

The XD3-40d standard model offers quick data processing and print speeds up to 5 ips (127mm/sec) at 203 dpi to produce high quality text, graphics and barcodes to labelling media.

Supporting a stand-alone configuration with a visual LED and a media roll diameter up to 127mm. The XD3-40d offering easy paper loading with adjustable paper guide and plus holder, alongside an optional peeler, plus an external paper supply. For added simplicity, the label printer also offers simple toolless maintenance of the roller and print head.

Available with USB interface as standard and optional USB V2.0 + Serial + Ethernet. The XD3-40d is compatible with market-leading programming languages including SLCS, BPL-Z™ and BPL-E™, while supporting Smart Switch Programming Languages to allow for seamless integration into legacy and current installations. The XD3 series is also accompanied with comprehensive SDKs for Windows and Linux, alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®. While backed by a 2 year warranty as standard.

Print Characteristics
Print Method	Thermal Transfer or Direct Thermal
Print Speed	Up to 5 ips (127 mm/sec)
Print Resolution	203 dpi
Print Width	Up to 104 mm
Print Length	Up to 1,000 mm
Sensor	Transmissive(Fixed), Reflective(Adjustable), Head Open, Ribbon-End (XD3-40t only)

Media Characteristics
Media Type	Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width	15~118mm
Media Roll Diameter	Up to 127mm
Media Thickness	0.06 ~ 0.20 mm
Supply Method	Easy Paper Loading
Inner Core	25.4 ~ 38.1mm

Ribbon Characteristics
Ribbon Type	Wax, Wax/Resin, Resin, Outside
Ribbon Width	33~ 110mm
Ribbon Length	Up to 300m
Core Inner Diameter	25.4 mm, 12.7 mm

Physical Characteristics
Dimensions (WxDxH)	XD3-40d: 181 x 222 x 168 mm (7.13 x 8.74 x 6.62 inch)XD3-40t: 210 x 284 x 186 mm (8.3 x 11.2 x 7.3 inch)
Weight	XD3-40d: 1.7kg (3.75 lbs.)XD3-40t: 2.6kg (5.73 Ibs.)
Electrical	EnergyStar Certified,External Power Adaptor 100-240V AC, 50/60Hz

Performance Characteristics
Memory	64 MB SDRAM, 128 MB Flash
Interface	Standard: USBOptional: USB + Serial + Ethernet
Real Time Clock	Not Supported

Environment Characteristics
Temperature	Operating:XD3-40d: 0 ~ 40℃ (32 ~ 104℉)XD3-40t: 5 ~ 40℃ (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity	Operating: 10 ~ 80% RHStorage 10 ~ 90% RH

Fonts/Graphics/Symbologies
Fonts	Bitmap Fonts (SLCS , BPL-Z, BPL-E) / Scalable Fonts (SLCS, BPL-Z) / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics	Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies	"1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39 "

Accessories
Standard	USB cable
Optional	Peeler,External Paper Supply, Serial cable
