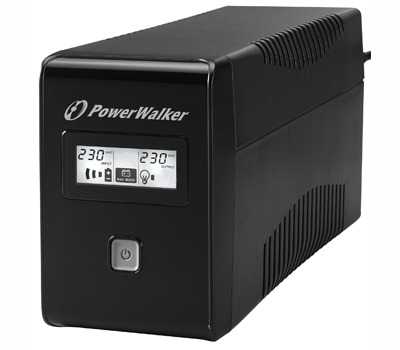

650VA UPS Battery Backup with LCD

Overview

The 650VA UPS (uninterruptible power source) with LCD is a battery backup, that can provide emergency power to a load when the input power source, typically mains power, fails.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 650VA Line-interactive UPS
  • 2 x UK and 1 x IEC outlets, RJ-11 Surge Protection
  • LCD status display
  • USB Connection for monitoring
  • LCD display for status view
  • Col start built-in boost and buck AVR function

It provides comprehensive protection and high power density in a small and economic package. This UPS is compact unlike traditional UPS packages and and offers greater comprehensive power protection against surges and spikes. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connect EPOS or PC equipment and is perfect for any business or small office application.

This UPS features an LCD display for status view and also the unique 2 x UK power outlets allowing direct connection of your EPOS/ PC terminal and 1 x IEC power outlet. It has a smart charger to shorten charging time, built-in boost and buck AVR, simulated sine wave, auto restart while AC is recovering, off-mode charging, cold start function, USB communication port and RJ-11 surge protection.

Product Features VI 650 LCD UPS
Capacity 650VA/360W
Voltage Input 220/230/240VAC
Voltage Input Range 160-290VAC
Voltage Output 220/230/240VAC
Voltage Regulation (Battery Mode) ± 10%
Frequency 50Hz or 60Hz
Frequency Regulation (Battery Mode) ± 1Hz (Battery Mode)
Waveform Simulated Sine Wave
Battery Type 12V / 7Ah
Battery Quantity 1x
Recharge Time 4h for 90%
Transfer Time Typical 2-6ms
LCD Display Indicators AC mode, Battery mode, Load level, Battery capacity, Input voltage, Output voltage, Overload alarm, Fault alarm, and Low battery alarm
Protections Discharge Prevention, Deep Discharger, Overcharge, Overload
Connections Communications USB
Outlets 2x UK and 1 x IEC
Surge Protection RJ-11 (in/out)
Software ViewPower
Dimensions 287 x 100 x 142 mm
Colour Black
Weight 4.3 kg
Model Code PWUPS-650-LED
Operating Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Battery Mode Audio Indicators Battery Mode Beep every 4 sec
Low Battery Audio Indicators Beep every second
Fault Audio Indicators Continuous Beep
Battery Weak Audio Indicators Beep every 2 sec
Battery Fault Audio Indicators Beep (x3 interval)
