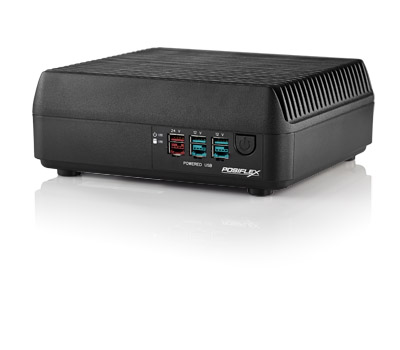

Posiflex TX-5000E Modular POS Box

Overview

The Posiflex TX-5000E a high-end fanless POS box designed for both hospitality and retail environments. The small footprint design allows this POS box solution to be placed under the counter, beside the register or anywhere you need a POS system. The Posiflex TX-5000E features built-in powered USB ports reducing the number of power adaptors used for peripherals therefore tidy cable management and neat counter space. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Innovative highly compatable modular POS
  • Intel G1820/2.7GHz/2M Cache Intel G3320TE/2.3GHz/3M Cache Intel Core i3-4330TE/2.4GHz/4M Cache Intel Core i5-4570TE/2.7GHz up to 3.3GHz/4M Cache Intel Core i7-4770TE/2.3GHz up to 3.3GHz/8M Cache
  • 60Gb SSD as standard
  • Fast, fanless POS box
  • Powered USB
  • Up to 6 x COM ports
  • Small footprint for space saving
  • Up to 16Gb RAM

Compact and Hassle-free
Small footprint of the TX-5000 Series allows for easy installation in anywhere you need a Point of Service system. Built-in PoweredUSB ports free up the need for multiple power adapters for peripherals and keep the counter neat and tidy.

High Performance
With SSD and the 4th generation Intel Haswell processor up to Core i7, the TX-5000 Series is faster, cooler and more efficient.
TX-5000E Intel® G1820/2.7GHz/2M Cache
TX-5000E Intel® Core i3-4330TE/2.4GHz/4M Cache
TX-5000E Intel® Core i5-4570TE/2.7GHz up to 3.3GHz/4M Cache
TX-5000E Intel® Core i7-4770TE/2.3GHz up to 3.3GHz/8M Cache

Fanless Design
With patented fanless technology, the TX-5000 Series delivers the unparalleled performance at completely silent operation.

 Expandable and Configurable
Connect to a series of POS peripherals and options for greater productivity and flexibility to fit in your store environment.



System Configuration TX-5000
Processor Intel G1820/2.7GHz/2M Cache Intel G3320TE/2.3GHz/3M Cache Intel Core i3-4330TE/2.4GHz/4M Cache Intel Core i5-4570TE/2.7GHz up to 3.3GHz/4M Cache Intel Core i7-4770TE/2.3GHz up to 3.3GHz/8M Cache
System Memory DDR3 1333 SO-DIMM x 2, max. 16GB (DDR3 1333/1600 for Core i3 and above CPU)
Storage Device SATA Storage x 2, factory default 32GB SSD x 1
RAID N/A
Power Supply 12V/150W
OS support Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Linux per request
Connectivity
Serial Port 6, DB9 x 4, COM5/COM6 via optional cable from service window, 5V/12V support on all COM ports
Parallel Port 1
Standard USB Port 5 (USB 3.0/2.0 x 2 + USB 2.0 x 3)
PoweredUSB Port 24V x 1 + 12V x 2
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors; DP x 1
CR Port 1, control 2 CR via optional Y-cable
PS/2 Port N/A
UPS Port N/A
Audio Internal 2W speaker x 1 (optional) + Mic-in/Line-out
Internal Expansion Slot mini-PCIe slot x 1
Built-in Device
Built-in WIFI Optional mini-PCIe WIFI module
Physical Dimension
Dimension (W x D x H in mm) 220 x 202 x 83
Weight (N. W. in kg) 2.75
Environmental
Operating Condition 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
