Key Features
- 10.1" TFT LCD
- Bezel-free PCAP touch
- Touchscreen
- For RT Series
The LM-4011 is a 10.1″ LCD 2nd monitor bezel-free display with PCAP touch, supporting up to 1280 x 800 resolution for all RT Series POS terminals.

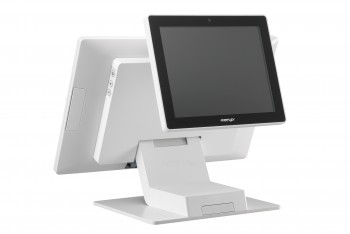

Posiflex TM-4011 10.1" LCD Touch Display for RT Series
Overview
The TM-4011 is a 10.1" LCD 2nd monitor bezel-free display with PCAP touch. Supporting up to 1280 x 800 resolution for all RT Series POS terminals.
Register to get started
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account| Specification | |
| LCD | 10.1" TFT LCD |
| Resolution | Up to 1280 x 800 |
| Active Area | 216.96 (H) x 135.60 (V) |
| Pixel Pitch | 0.1695 (H) x 0.1695 (V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Angle | 85/85/85/85 degree (U/D/L/R) |
| Contrast Ratio | 800 : 1 |
| Response Time | 25 ms (Raising + Falling) |
| Brightness | 400 cd/m2 |
| Touch Type | Bezel-free PCAP touch |
| Interface | USB |
| Display Interface | VGA |
| Power Supply | 12V from Posiflex terminal VGA port |
| System Supported | RT Series |
