Posiflex TK-3230 32" Self Service Kiosk

Make an enquiry
Posiflex TK-3230 32" Self Service Kiosk

Overview

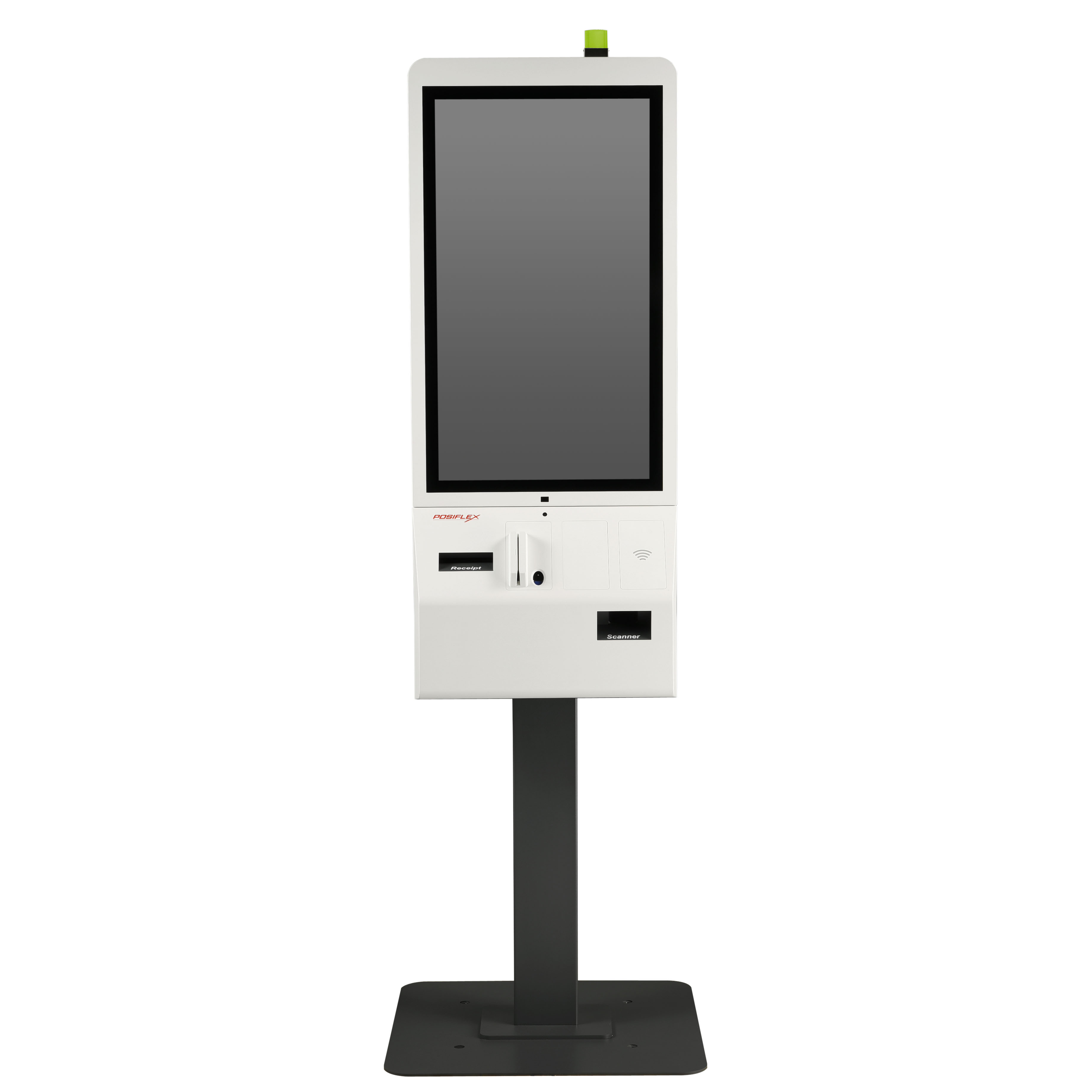

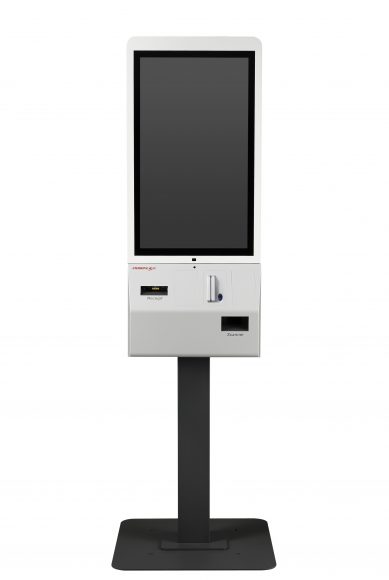

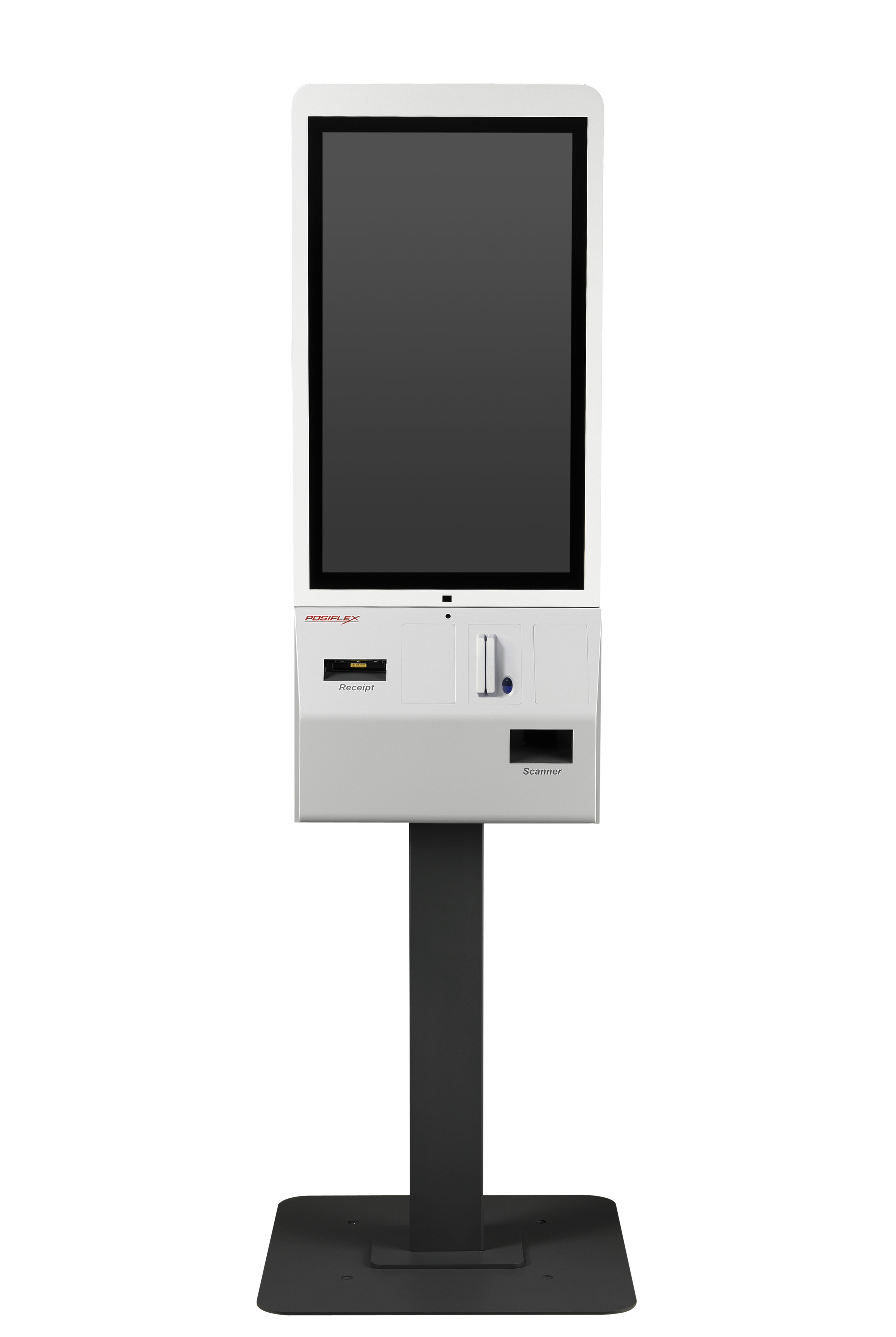

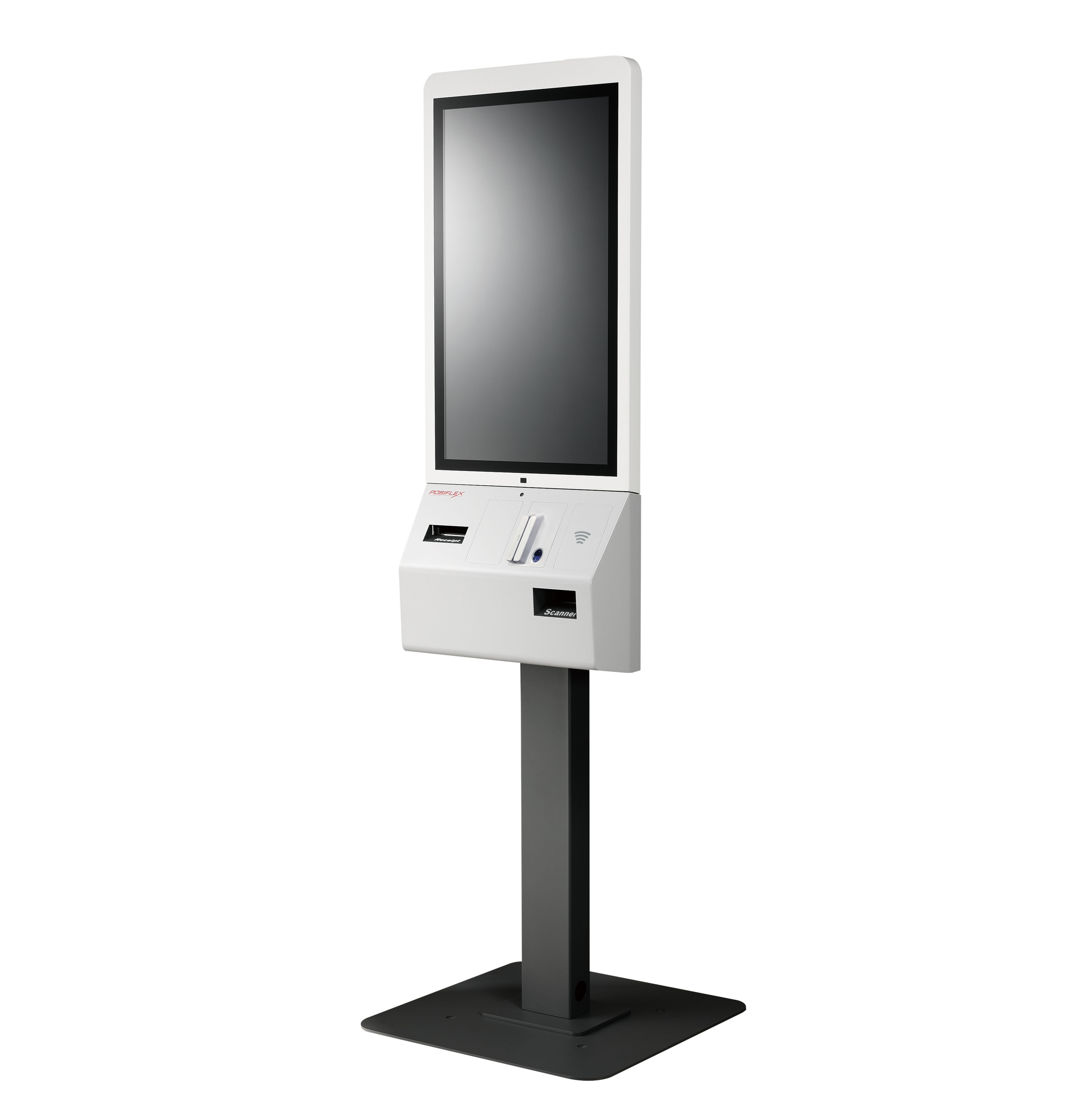

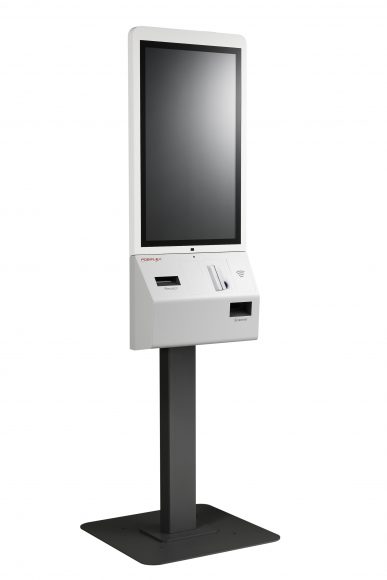

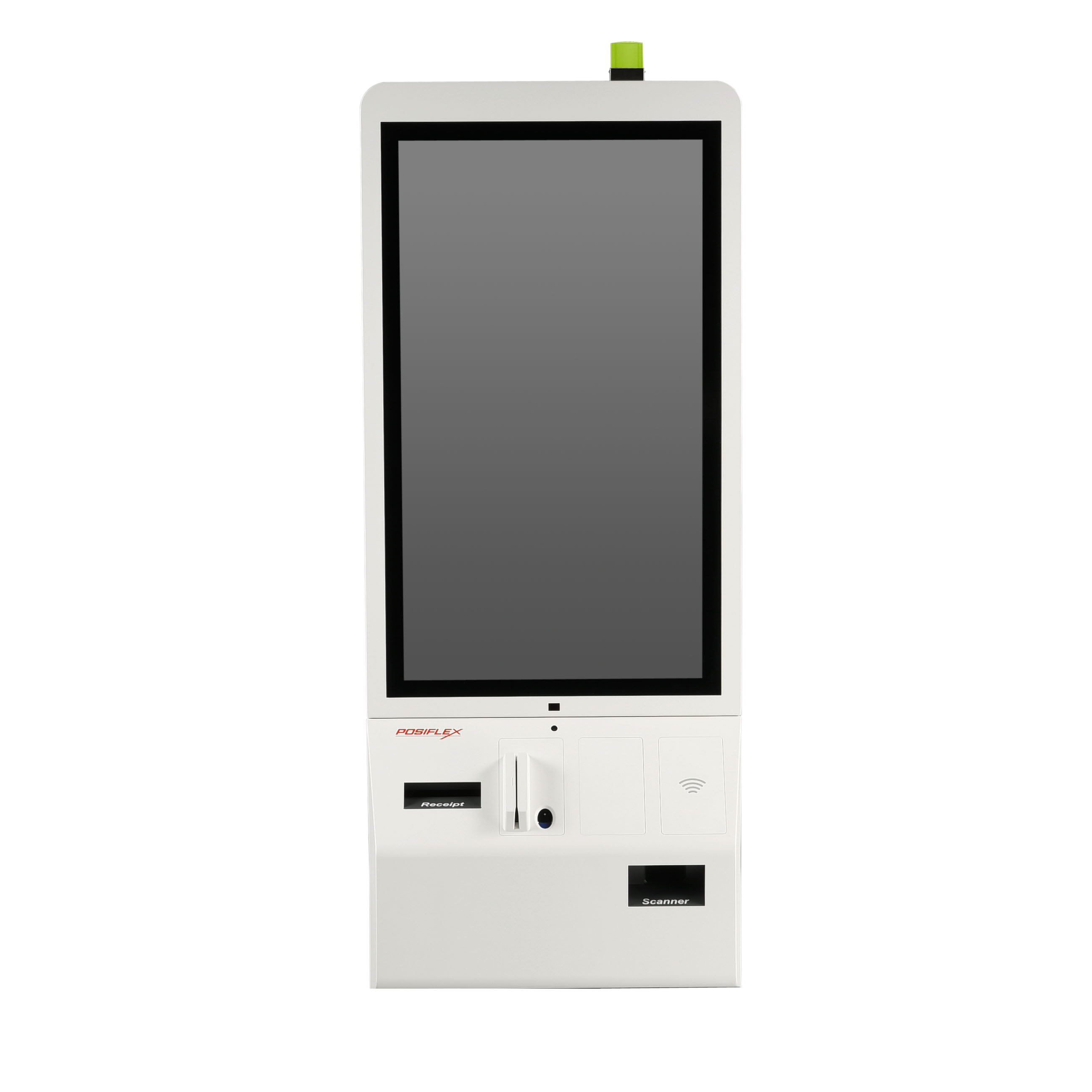

the Posiflex TK-3230 Series is a 32” self-service, interactive  kiosk that is highly suited for quick service and fast casual restaurants. It serves as a seamless extension of the existing POS terminals, helping the store owner drive sales during peak times, and offering various ways for the consumer to order, pay and engage with the brand. The Posiflex TK Series is designed for easy maintenance with hinged doors and simple component access, see the Product Showcase here. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 32" PCAP Touch LCD
  • Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
  • 64Gb SSD as standard
  • Up to 8Gb RAM

Stylish, Modern, and Built for Intuitive Interactive Use
Designed with both functionality and aesthetics in mind, the Paragon TK-3200 Series features a bright, high definition 32” PCAP touch screen and sleek, durable enclosure, providing a contemporary and sophisticated human-machine interface.

Versatile Functionalities
Incorporating a wide range of peripherals in self-service applications including 2D scanner, receipt printer, NFC, service indicator, bracket for EMV payment devices, and more.

Modularity for Easy Serviceability

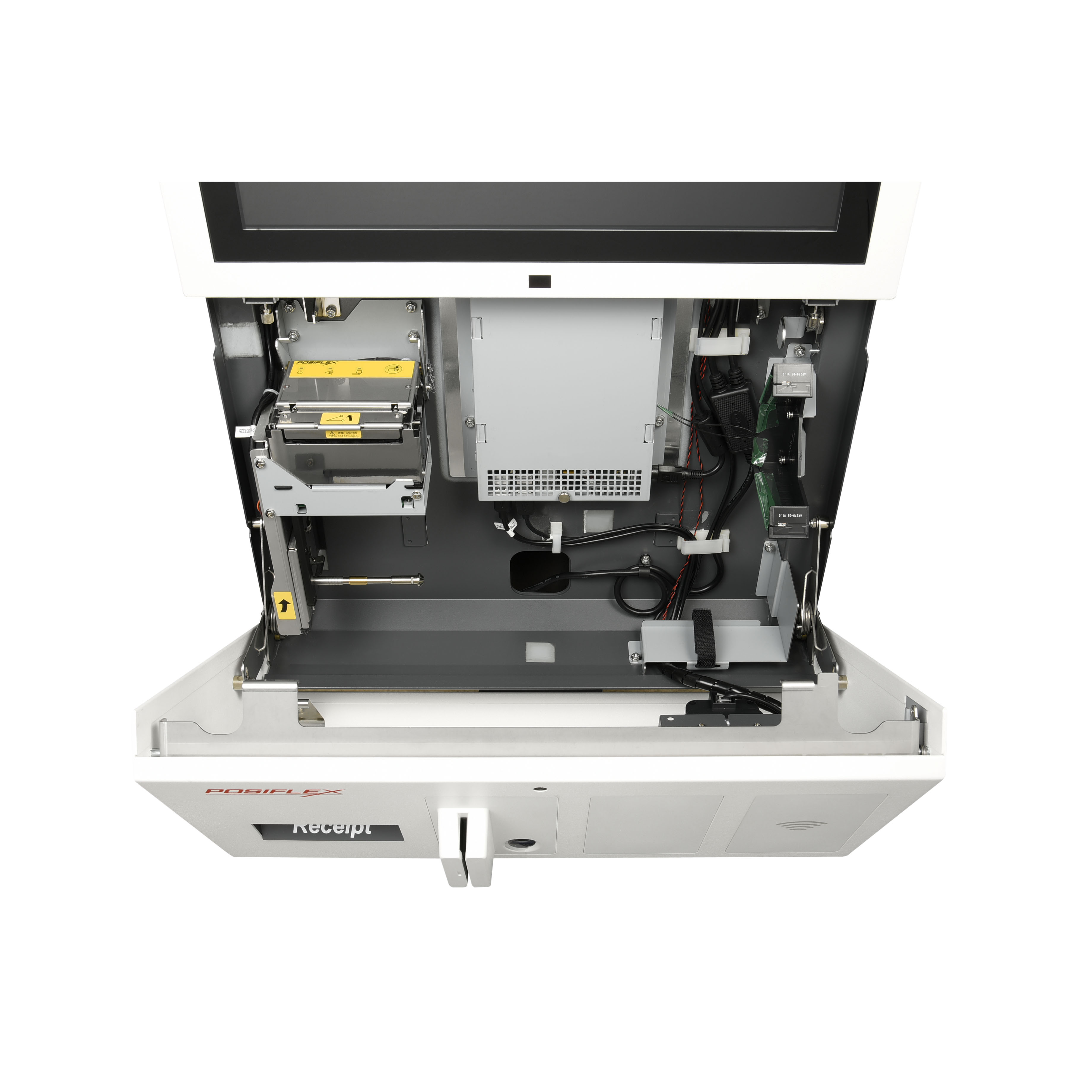

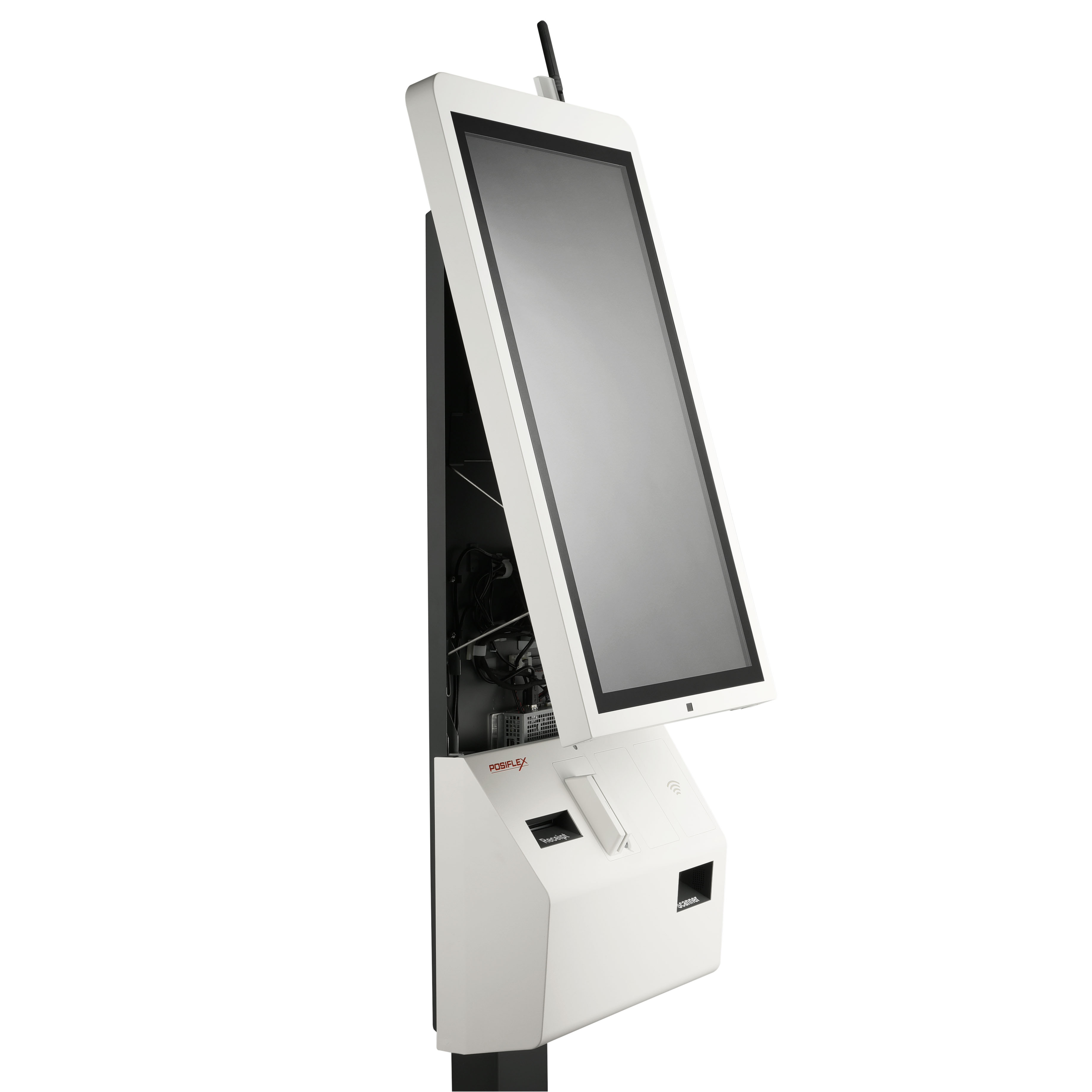

Modular design makes installation, maintenance and component replacement easy, fast and convenient, and speeds up the return on investment by reducing repair cost.

Specification TK-3230
Processor Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory DDR3L SO-DIMM slot x 1, max. 8 GB
Storage Device SATA SSD x 1
Intel vPro Support N/A
TPM Support Yes (for option)
Power Supply 12V/84W x 1 + 24V/60W x 1
OS Support Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT
Serial Port 6, DB9 x 1 + RJ50 x 5, 5V/12V support on all COM ports
Standard USB Port 6, USB 3.0 x 1 + USB 2.0 x 5
OTG USB N/A
Display Port miniDP x 1
LAN Port 10/100/1000 Mb x 1
Audio Internal 3W speaker x 2
Internal Expansion Slot M.2 x 1
Display & Touch
LCD 32"
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support
Physical Dimension
Dimension (W x D x H in mm) 495 x 184 x 1188 (estimated, without pole) 495 x 602 x 1859 (estimated, with pole)
Weight (N. W. in kg) 35 (estimated, without pole set) 67 (estimated, with pole set) 39 (estimated, with wall mount bracket)
Environmental
Operating Condition 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Standard Components
Status Indicator RGB Color LED Indicator
Proximity Sensor Range from 60 cm to 100 cm
Camera 1MP wide angle camera
Printer 3" open frame printer w/auto cutter, 250 mm/sec (max.)
Optional Components
WiFi M.2 WiFi/BT module
Scanner 2D barcode scanner
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
NFC Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G LTE Support selected bands & countries with full SIM slot (mini-PCIe module) by request
