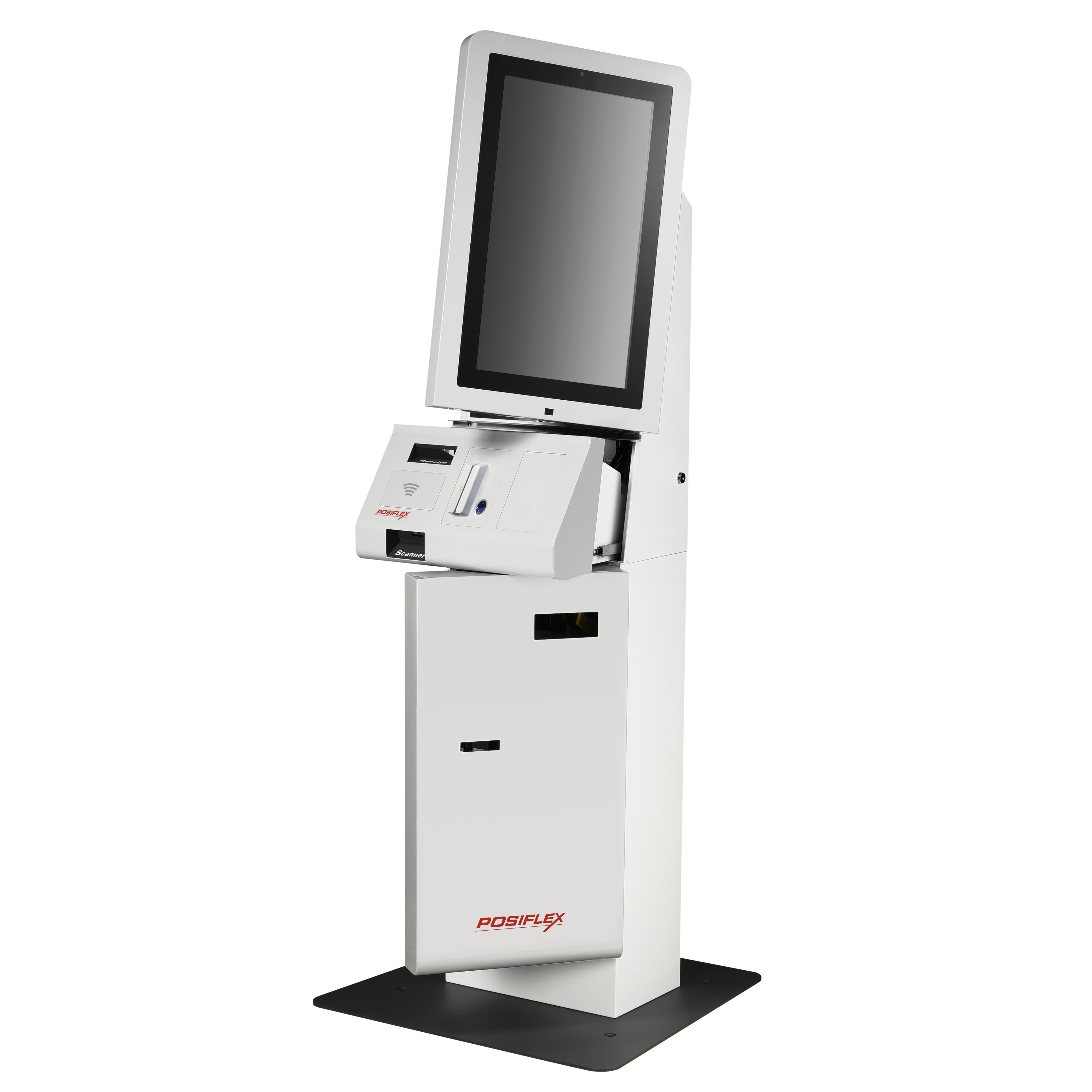

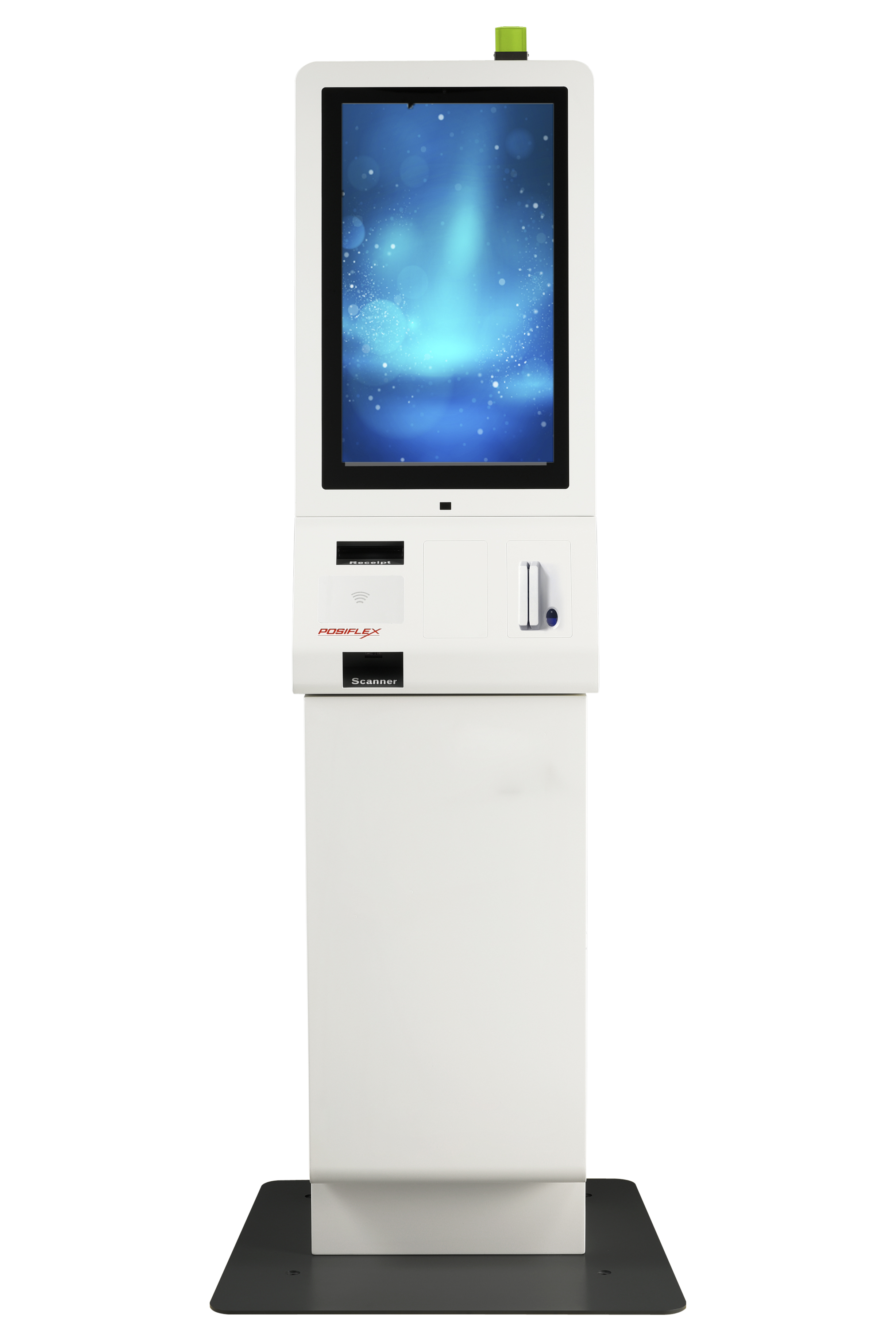

Posiflex TK-2150 Self-Service Kiosk

Overview

The Posiflex Stellar TK-2150 is a modular kiosk that can be tailored to blend into the existing store decoration and complement the company’ s branding. Purpose-built for various self-service applications, this kiosk can be integrated with diverse peripherals, delivering versatile performance to help business owners enhance customer engagement. The entire kiosk is modular for ease of transporting and cost-efficient shipping. The Posiflex TK Series is designed for easy maintenance with hinged doors and simple component access, see the Product Showcase here. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 21.5" PCAP Touch LCD
  • Intel 7th Generation Kaby Lake U Core i3 / i5 / i7
  • 64Gb SSD as standard
  • Up to 16GB RAM
  • Built-in Printer
  • Proximity Sensor
  • 1MP Wide Angle Camera
  • available as a countertop kiosk or floor-standing kiosk with pedestal,
  • Easy access for consumables / maintenance

Modular Design
The Stellar TK-2100 Series is available as a countertop kiosk or floor-standing kiosk with pedestal,

Customised Approach
Choose from a series of peripherals options including barcode scanner, receipt/ticket printer, bill acceptor, coin dispenser, and card dispenser, to create the kiosk solution you exactly need.

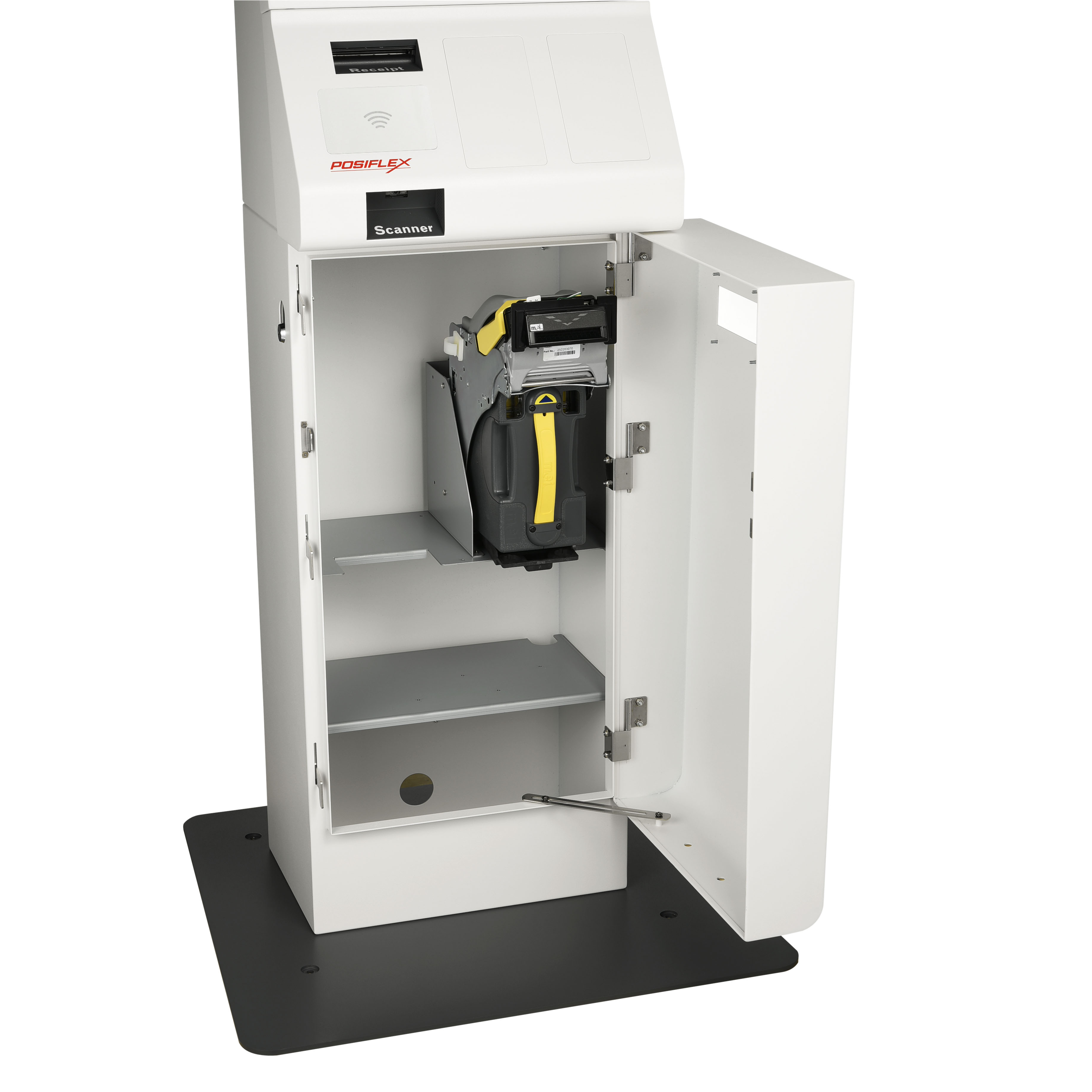

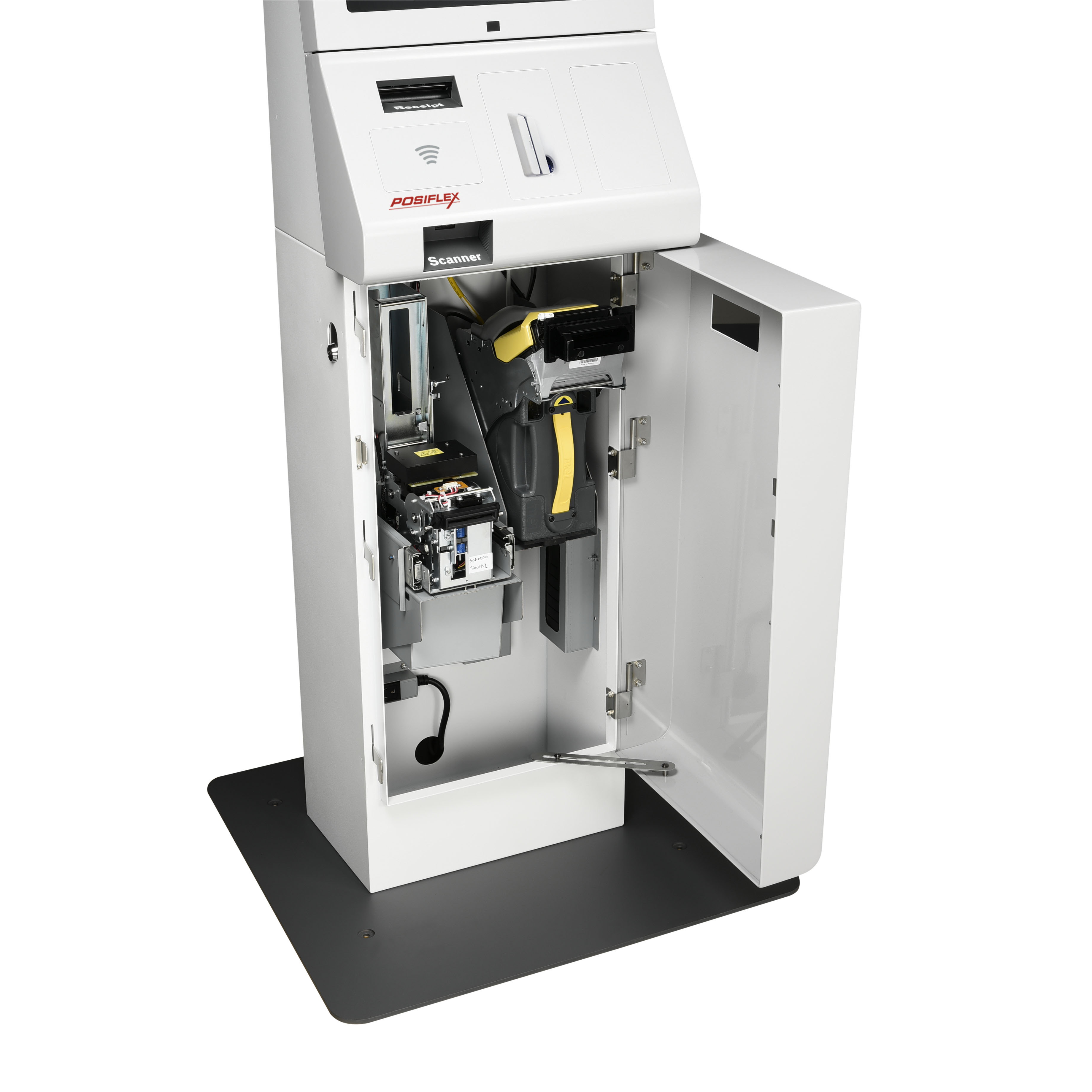

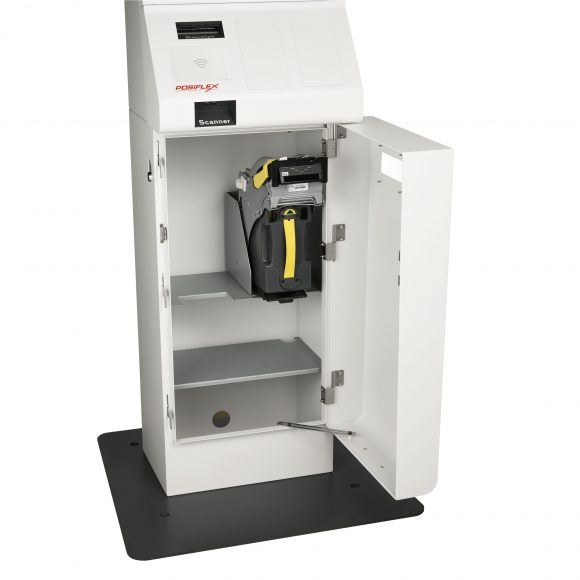

Easy Maintenance
All access doors open at the front providing easy access for service and maintenance. There is no need to move the kiosk away from walls, or dismantle the main body of the kiosk to remove components for servicing.

Various Applications
Designed for public access, the Stellar TK-2100 Series is suitable for a wide variety of self-service applications such as: retail Point-of-Sale, loyalty program, restaurant self-ordering/food court preordering, hotel self check-in, hospital patient check-in, cinema/museum self-ticketing, and access control.

Specification TK-2150
Processor Intel 7th Generation Kaby Lake U Core i3 / i5 / i7
System Memory DDR4 SO-DIMM slot x 2, max 16 GB
Storage Device SATA SSD x 1
Intel vPro Support Core i3: N/A Core i5/Core i7: Yes (for option)
TPM Support Yes (for option)
Power Supply 12V/100W
LAN Port 10/100/1000 Mb x 1
Audio Internal 3W speaker x 2
OS Support Windows 10 IoT 64 bit
Serial Port 6, DB9 x 1 + RJ50 x 5, 5V/12V support on all COM ports
Standard USB Port 6, USB 3.0 x 2 + USB 2.0 x 4
OTG USB N/A
Display Port miniDP x 1
LAN Port 10/100/1000 Mb x 1
Audio Speaker connector x 2
Internal Expansion Slot M.2 x 1
Display & Touch
LCD 21.5"
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support
Physical Dimension
Dimension (W x D x H in mm) Countertop version: 400 x 460 x 832 Floorstanding version: 625 x 610 x 1620
Weight (N. W. in kg) Countertop version: 27.5 Floorstanding version: 60
Environmental
Operating Condition 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Standard Components
Status Indicator RGB Color LED Indicator
Proximity Sensor Range from 60 cm to 100 cm
Camera 1MP wide angle camera
Printer 3" thermal printer w/auto cutter, 200 mm/sec (max.)
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Optional Components
WiFi M.2 WiFi/BT module
Scanner 2D barcode scanner
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
NFC Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
Bill Acceptor (integrated in the pedestal PT-200) Storing up to 900 notes
Card Dispenser (integrated in the pedestal PT-200) Integrated RFID Reader/Writer, supporting ISO 14443 Type A/B contactless cards; Storing up to 175 cards
Ticket Printer (integrated in the pedestal PT-300) Fanfolded ticket printer for ticket thickness: .004” to .011”, ticket width: 2.0” to 3.25”
Note Bill Acceptor & Card Dispenser can be set in the same pedestal PT-200, but only the pedestal PT-300 can accommodate Ticket Printer.
