Bixolon SRP-E300 thermal receipt and ticket printer

Make an enquiry
Bixolon SRP-E300 thermal receipt and ticket printer

Overview

The Bixolon SRP-E300 is a cost-effective 3” (80mm) direct thermal receipt and ticket printer ideal for Retail, Hospitality and Banking. Producing print speeds of up to 220mm/sec and offering a print resolution of 180dpi (SRP-E300) to produce high quality graphics, text and barcodes. This POS thermal printer sports a highly reliable mechanism of 150km TPH and a 1.5 million cuts Auto Cutter. Part of the Bixolon SRP Series Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 3” (80mm) Direct Thermal POS Receipt and Ticket Printer
  • Compact user friendly, durable design
  • Interface USB V2.0 FS + Ethernet + Serial
  • Stand-alone or wall-mount option for space-saving use

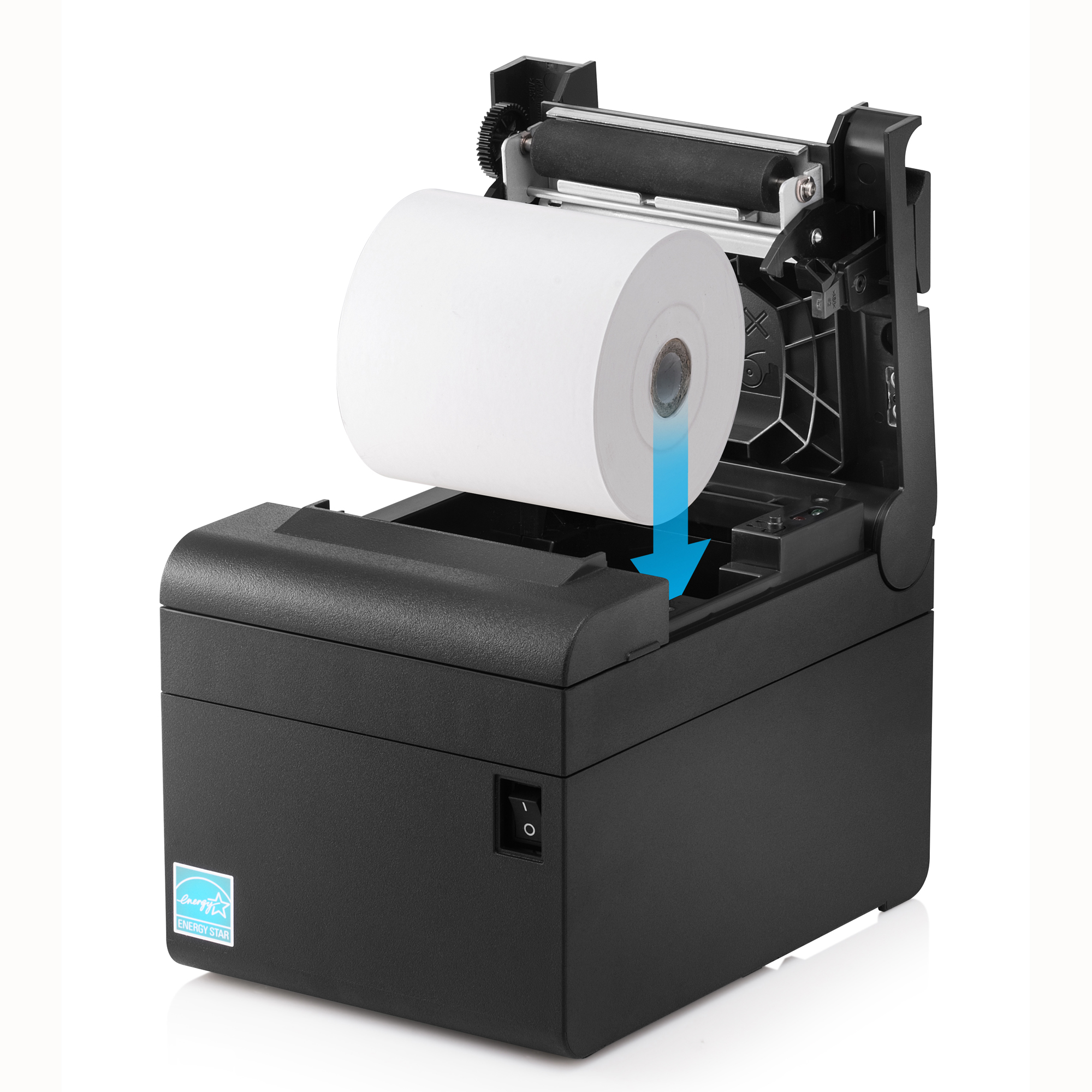

  • Easy paper loading
  • LED paper and error display
  • Print speed up to 220mm/sec
  • Highly reliable mechanism: 150km TPH & 1.5 Million cuts Auto Cutter
  • Cost efficient, paper saving mode, reducing the length of a receipt up to 25%
  • Compatible with marketing leading platforms including Windows®, iOS™, Android™, Linux®, Xamarin™, Chrome™ and Cordova™ through comprehensive SDKs.
  • Energy Star Certified
  • 2 year warranty as standard

Compatible with a traditional static point-of-sale setup or as part of a mobile POS, the SRP-E300 is compatible with all major operating platforms including Windows®, iOS™, Android™, Linux®, Xamarin™, Chrome™ and Cordova™ via a comprehensive set of SDKs (Software Developer Kits).

The compact, ergonomic design, means the SRP-E300 can be used as a stand-alone printer or wall-mounted for extra space-saving opportunities. For cost-efficiency the printer is available in a USB only version or BIXOLON’s all in one Plus™ Interface which includes USB V2.0 FS + Ethernet + Serial. Also incorporated is a paper saving mode which can reduce the length of a receipt by up to 25%. The SRP-E300 also comes with a 2 year warranty as standard and full Energy Star Certification.

SRP-E300 Specification
Print Method Direct Thermal (Top / Front Exit)
Print Speed 220 mm/sec
Print Resolution 180dpi
Print Width 72mm
Sensor Paper End
Media Type Receipt
Media Width 80mm
Media Roll Diameter Up to 83mm
Media Thickness 0.062 ~ 0.075 mm
Supply Method Easy Paper Loading
Dimensions (WxDxH) 132 x 182.4 x 128.5 mm (5.19 x 7.18 x 5.05 inch)
Weight 1.23kg (2.71 lbs)
Power EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz
Drawer Port 2 ports (via y-type adaptor)
NV Image Memory 768 Kbytes (Mono)
Receive Buffer 4 Kbytes
User Define Buffer 12 Kbytes
Interface USB V2.0 FS + Ethernet + Serial
Temperature Operating: 0 ~ 40℃ (32 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity Operating: 10 ~ 80% RH Storage 10 ~ 90% RH
Thermal Print Head (TPH) 150 km
Driver/Utility Windows Driver, OPOS Driver, JPOS Driver, CUPS Driver(Linux/Mac), Virtual COM USB Driver, Utility Program
SDK/Plugin iOS SDK, Android SDK, Windows SDK, Linux SDK, Xamarin SDK, Chrome Plugin, Cordova Plugin
Character Size Font A: 12 x 24 Font B: 9 x 17 Font C: 9 x 24 KOR, CHN, JPN: 24 x 24
Characters Per Line Font A: 42 Font B, C: 56 KOR, CHN, JPN: 21
Character Sets Alphanumeric: 95 Extended Graphics: 128 x 35 page International: 32
Graphics Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code
Accessories Standard USB A-B Cable
Accessories Optional External buzzer, B-Melodist
