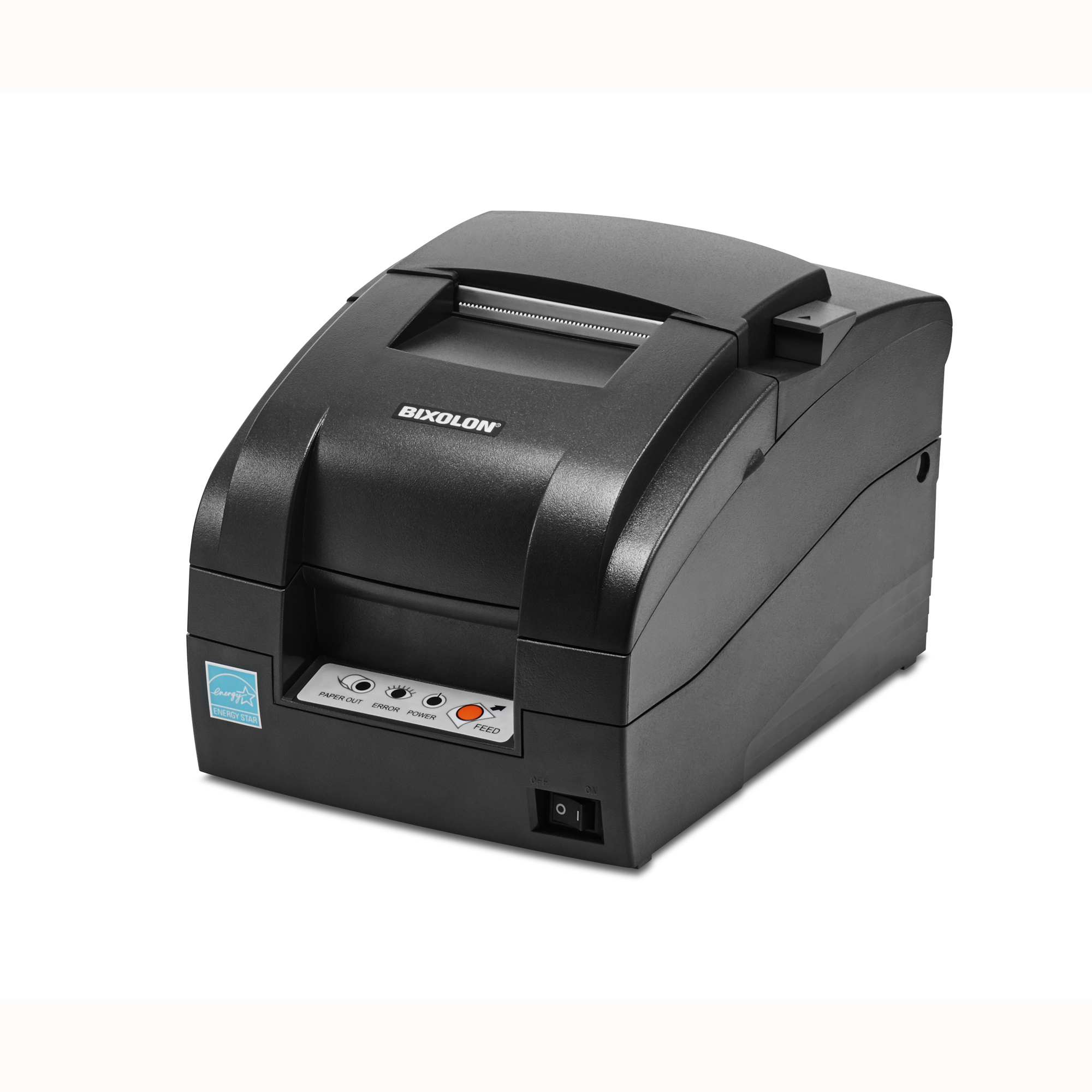

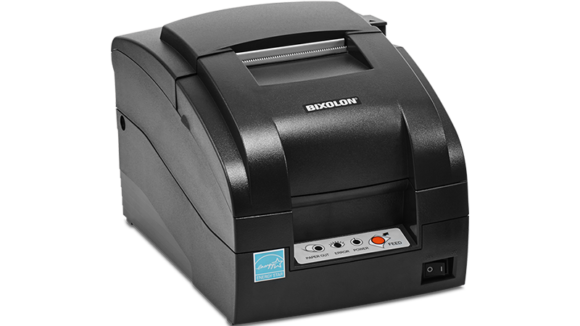

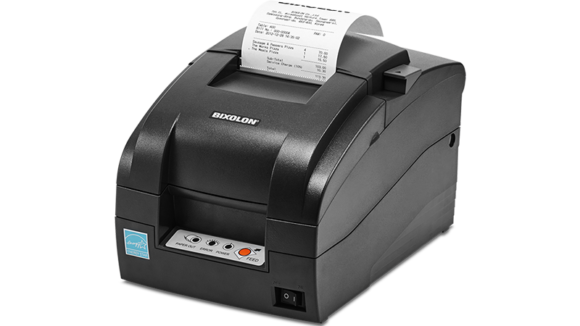

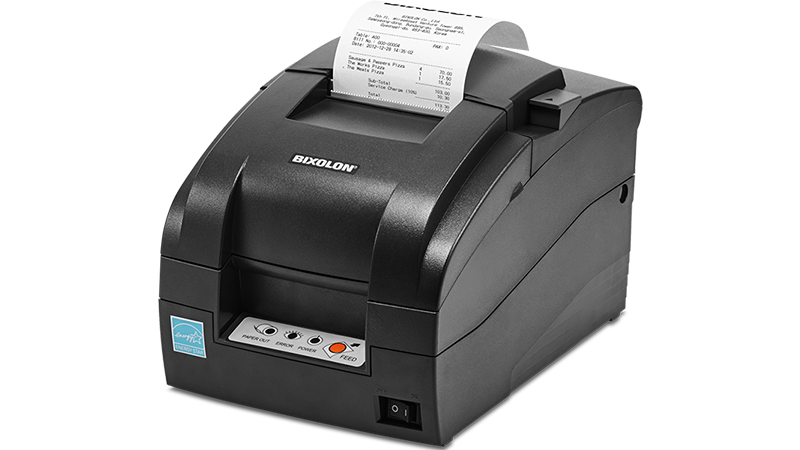

Bixolon SRP-275III dot-matrix receipt printer

Overview

SRP-275III 3” serial dot matrix receipt printer suited to a range of applications, from kitchen printing, to end-of-day reporting, customer receipting, service reports and can produce simultaneous multiple copies. All of this makes the SRP-275III dot matrix printer suitable to a variety of environments. Part of the Bixolon SRP Series Drivers and utilities can be found here, see more about the Bixolon SRP-275III in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

High performance dot matrix printer
Two colour printing
Ergonomic design for counter space saving
Internal kitchen buzzer and built in SMPS
Simple drop-in paper loading

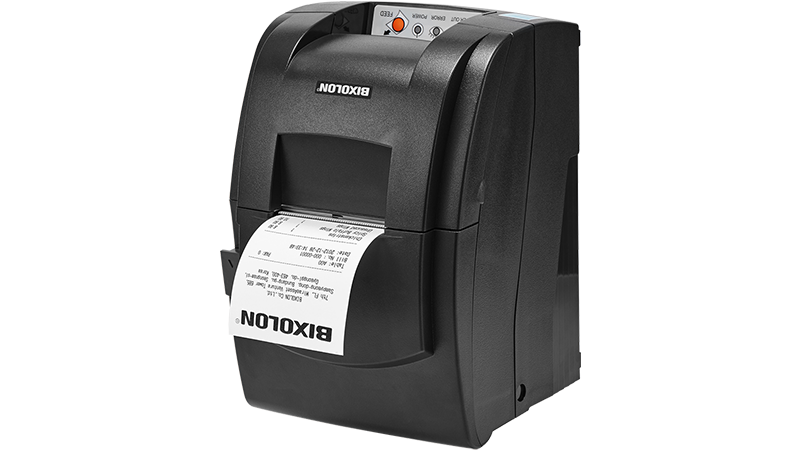

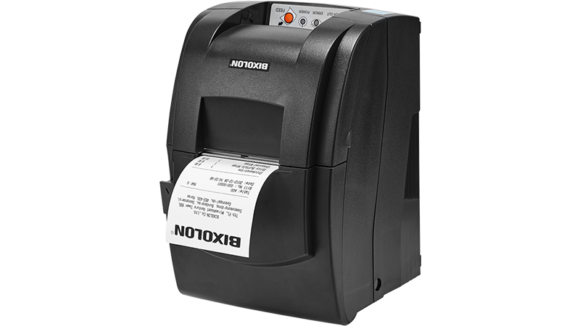

Stand-alone and wall-mount options
Energy Star Compliant
2 year warranty

Featuring an ergonomic easy clean design and easy print paper loading, the SRP-275III has the option of either Tear-Bar or Auto-cutter. Boasting three interface options including USB V2.0 FS + Serial + Ethernet*, USB V2.0 FS + Parallel or USB V2.0 FS + Serial (*DHCP enabled).

Offering Intelligent Logic Seeking and Bi-Directional Print Technology, the SRP-275III is fast and quiet and has the ability to print multiple copies with reliability of up to 18 million lines. Alongside a Virtual Memory Switch Manager (VMSM) allowing the printer settings and the default language to be changed easily. The SRP-275III also features an easy logo/firmware download program to efficiently update receipt designs with company logos.

Specification
Print Method	Dot Matrix
Print Speed	5.1 lps (at 40 columns)
Print Resolution	80 dpi (Horizontal) 144 dpi (Vertical)
Print Width	Up to 63.5 mm
Sensor	Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark
Media Type	Receipt
Media Width	76.5 mm
Media Roll Diameter	Up to 83 mm
Media Thickness	0.06 ~ 0.085 mm
Supply Method	Easy Paper Loading
Dimensions (WxLxD)	160 x 239 x 157 mm (6.29 x 9.40 x 6.18 inch)
Weight	A: 2.4 kg (5.29 lbs.) C: 2.5 kg (5.51 lbs.)
Power	EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz
Drawer Port	2 ports (via y-type adapter)
Memory	64 Mbit SDRAM, 16 Mbit FlashROM
NV Image Memory	256 Kbytes (mono)
Receive Buffer	64 Kbytes
User Define Buffer	64 Kbytes
Interface	Triple Interface USB V2.0 FS + Serial + Ethernet
Temperature	Operating: 0 ~ 40℃ (32 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity	Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH
Thermal Print Head (TPH)	300 Million Dots/Wire
Auto Cutter	1.5 Million Cuts
Emulation	BXL / POS
Driver / Utility	Windows Driver, OPOS Driver, JPOS Driver, Linux / Mac CUPS Driver, Virtual COM USB/Ethernet Driver, Utility Program
SDK	iOS SDK, Android SDK
Character Size	Font A: 9 x 9 Font B: 7 x 9 KOR: 17 x 9 CHN: 16 x 16
Characters Per Line	Font A: 35 Font B: 40 KOR: 20 CHN: 22
Character Sets	Alphanumeric: 95 Extended Graphics:128 × 27 page International: 48
Graphics	Supporting user-defined fonts, graphics, formats, and logos
Optional	Wall Mount, Splash Proof Cover, Ribbon Catrridge, B-Melodist, External Buzzer
