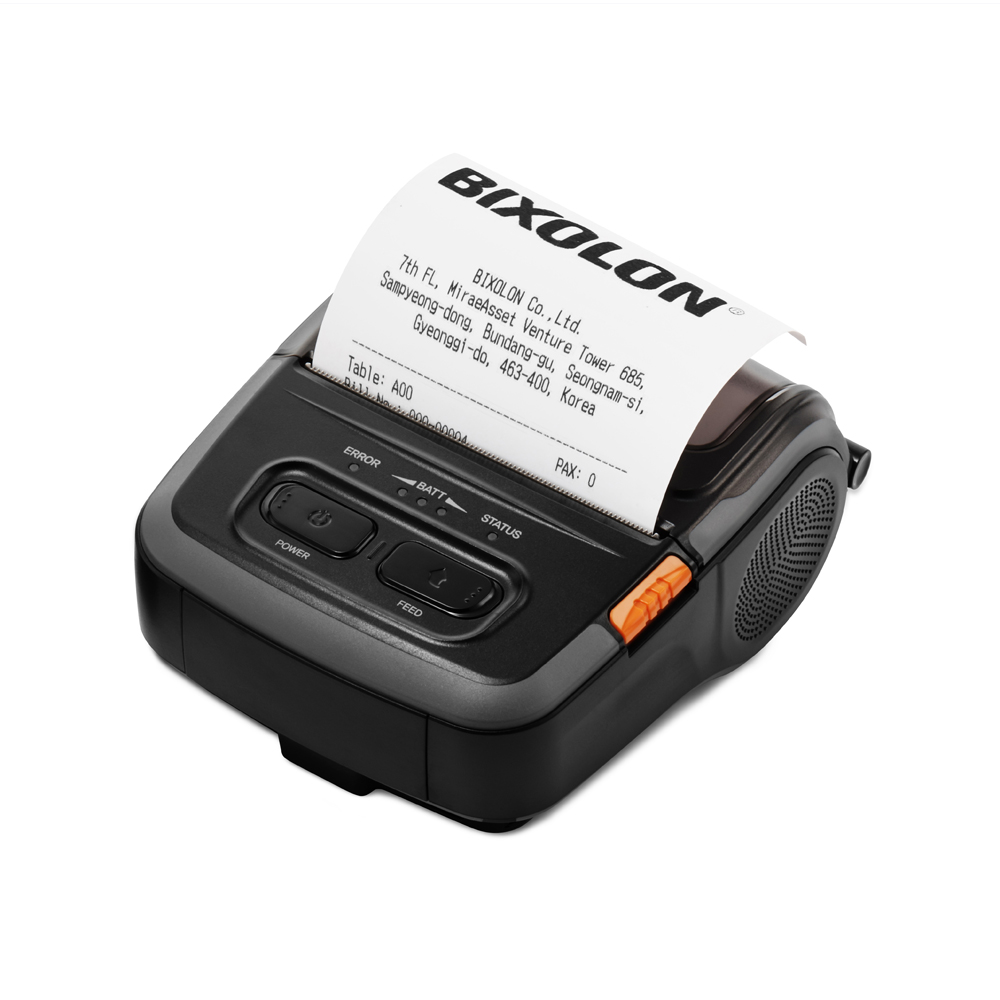

Bixolon SPP-R310 3” receipt, label and ticket mobile printer

Make an enquiry
Bixolon SPP-R310 3” receipt, label and ticket mobile printer

Overview

The Bixolon SPP-R310 3” receipt, label and ticket mobile printer is super compact, rugged and ergonomic printer accompanied with Bluetooth, WiFi, USB and Serial connectivity options. Drivers and utilities can be found here, see more about the Bixolon SPP-R310 in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 3” (80mm) durable 2.35 kg mobile printer
  • speeds up to 100mm/second
  • 203dpi high resolution
  • Long lasting battery life (24- hour stand by time)
  • 2 year warranty as standard (battery 6 months)

Supporting Easy Bluetooth Pairing via an embedded NFC tag enabling easy auto pairing with Apple iOS™, Android™ Symbian™ & Windows® smart devices, alongside Apple MFi iAP2 certification. The SPP-R310 also features a Auto-Switch function which provides simple automatic switching between iOS mode and standard Bluetooth modes.

Printing at speeds of 100mm/sec (receipt) at 203dpi printing resolution. The SPP-R310 provides a 24 hour battery life supporting continuous printing of 253 metres. Alongside a 1.8 metres drop certification and IP54 dust and water resistance rating within its protective case. Operating in an extreme temperature range of +50°C to -15°C due to its integrated temperature sensor, the 3” mobile printer with a 2 year warranty (including the print head) is fully functional in the harshest of environments.

Specification
Print Method Direct Thermal
Print Speed Up to 100 mm/sec (Receipt) Up to 80 mm/sec (Linerless) 12.5% pattern
Print Resolution 203dpi
Print Width Up to 72mm
Sensor Paper End: Reflective sensor Paper Cover Open: Mechanical switch
Media Type Receipt, Label and Linerless (Optional)
Media Width 80mm
Media Roll Diameter Up to 50 mm
Media Thickness 0.07 ± 0.005 mm
Supply Method Easy paper loading
Dimensions (WxLxD) 105.0 x 126.0 x 58.0 mm (4.14 x 4.97 x 2.29 inch)
Weight Including battery: 385 g (0.85 Ibs.) Including MSR: 405 g (0.9 Ibs.) Paper : 133 g (0.29 lbs.)
Battery 7.4 V Li-ion, 2,600 mAh, Rechargeable Charging time: Up to 4.0 hrs
Memory 64 Mbit SDRAM, 32 Mbit FlashROM
Interface Options USB V2.0 FS Serial Bluetooth V3.0 + EDR* WLAN 802.11b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct) – WEP40/104, WPA1/2(PSK, EAP) * Easy Bluetooth Pairing™ via NFC
Temperature Operating: -15 ~ 50℃ (5 ~ 122℉) Storage: -30 ~ 70℃ (-22 ~ 158℉)
Humidity Operating: 10 ~ 80% RH
Sealing IP43 (IP54 with protective case)
Drop Rate 1.8 m (6 ft.)
Emulation BXL / POS
Drivers Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver
SDKs iOS SDK, Android SDK, Windows SDK
Character Size Font A: 12 × 24 Font B: 9 × 17 Font C: 9 × 24 KOR, CHN: 24 x 24
Characters Per Line Font A: 48 Font B, C: 64 KOR, CHN: 24
Character Sets Alphanumeric: 95 Expanded Graphics:128 × 33 page International: 32
Graphics Supporting user-defined fonts, graphics, formats, layouts, and logos
Barcode 1D: Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Aztec, Data Matrix, GS1 Databar, MaxiCode, PDF417, QR code
Standard Belt Clip, Battery Pack, Battery Charger, Power Cord, Paper
Optional Belt Strap, Case, Protective Case, Shoulder Strap, Single Battery Cradle, Quad Battery Charger, Cigarette Lighter Charger, Serial/USB Cable, Cleaning Pen
MSR 3 Track (T-DES/DUKPT(Optional)) BIXOLON SPP-R310plus

Accessories

Bixolon Vehicle Charger

Bixolon Vehicle Charger

Bixolon Vehicle Charger. Easily keep your mobile printer charged while on the road.
Bixolon Single Docking Cradle

Bixolon Single Docking Cradle

Bixolon Single Docking Cradle. A singular docking cradle to keep Bixolons SPP-R range of mobile printers charged and ready to...
Bixolon Battery Pack V2

Bixolon Battery Pack V2

Bixolon Battery Pack V2 with outer contacts, designed for Bixolon’s range of Mobile POS Printers.
Bixolon Shoulder Strap

Bixolon Shoulder Strap

Bixolon Shoulder Strap for SPP-R Series printers. Used for a hands-free method of carrying your Bixolon mobile printer.
Bixolon Protective Leather Case

Bixolon Protective Leather Case

Bixolon Protective Leather Case – Equip your mobile printer for maximum protection with this weather resistant leather case.
Bixolon Belt Clip

Belt Clip

  • Bixolon belt clip
  • belt clip for secure hands-free convenience.
  • For SPP-R200III, SPP-R310, SPP-R210, SPP-R400II
