SNBC BTP-U80II thermal printer

Make an enquiry

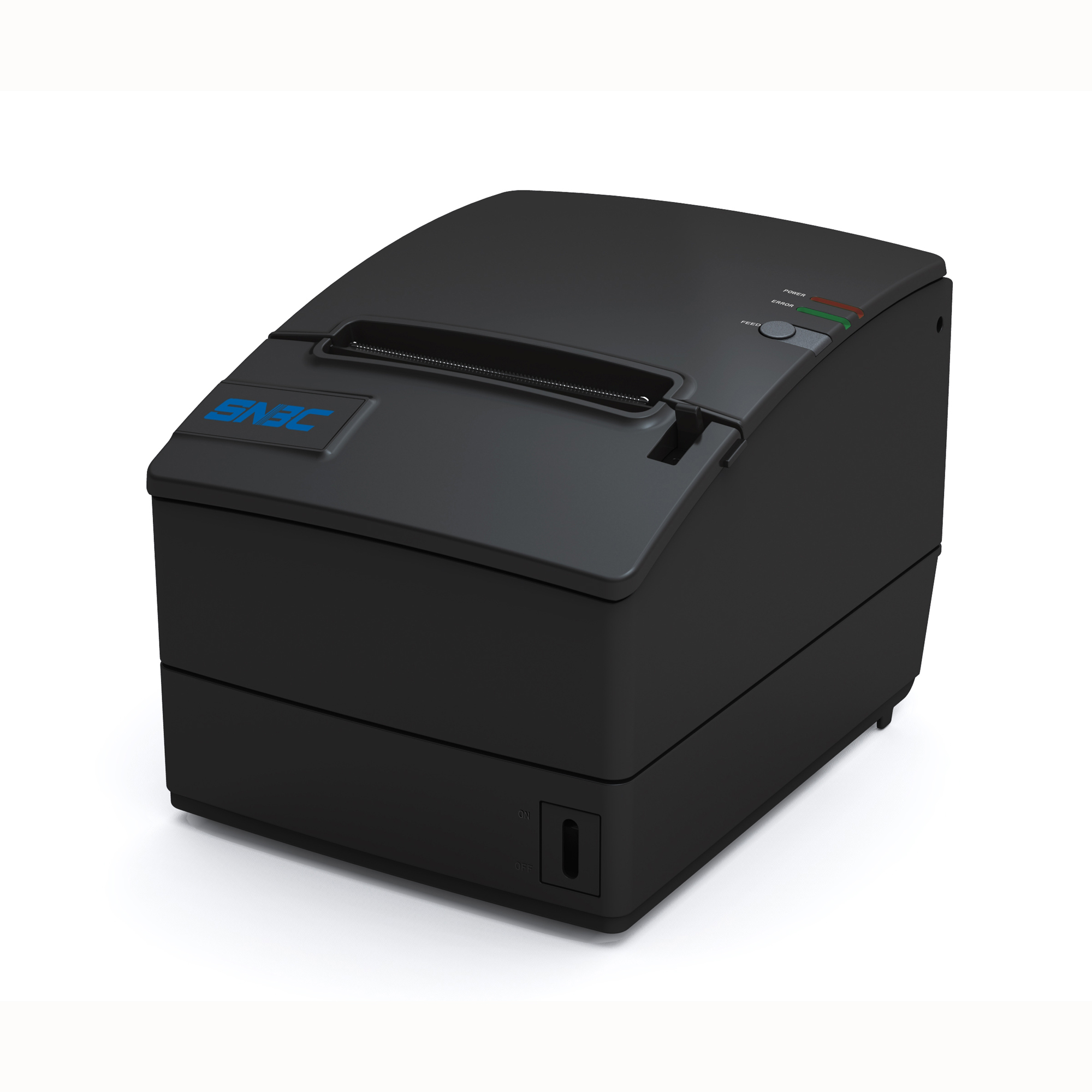

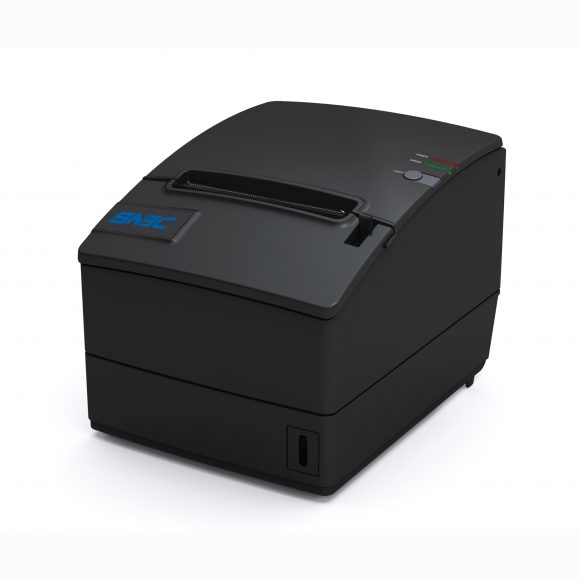

SNBC BTP-U80II Thermal Printer

Overview

SNBC BTP-U80II is a high speed, low noise, thermal printer. This SNBC thermal printer features a top feeding paper exit with a print speed of up to 200mm/s. Furthermore, the SNBC BTP-U80II thermal printer is a highly recommended choice for the majority of retail, hospitality, health care and leisure environments. The BTP-U80II is part of the SNBC BTP range of printers.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Top paper exit
  • Print speed of up to 230mm/s
  • Multi-interface on board as standard: RS232 serial, USB and Ethernet
  • Drop and print paper loading
  • Two colour and grey printing available
  • Internal buzzer (Adjustable volume)
  • Wall mountable (no bracket required)

The BTP-U80II comes with multiple interfaces, including USB, Serial and Ethernet as standard.

BTP-U80II is designed for ease of use and has a drop and print paper loading mechanism. Paper receipts can be full cut or partially cut using the U80II.

This printer has the capability of an integrated company logo plate for promotion of your brand.

BTP-U80II Specification
Print method Direct thermal printing
Resolution 180 x 180DPI
Print speed Max. 200mm/s
Print width Max. 72mm
Interface Standard interface: RS232 serial, USB, Ethernet
Cash drawer control 1 cash drawer
Barcodes 1D:UPC-A, UPC-E, JAN8 (EAN8), CODE 39, CODE 93, CODE 128, ITF, CODABAR 2D:PDF417, QR, Maxicode, GS1-DataBar
Fonts Font A 12 x 24, Font B 9 x 17, Kanji 24 x 2
Character Set 95 Alphanumeric, 13 types international characters, 128x56 graphic (including user-defined page) Traditional/Simplified Chinese, Thai, Japanese, Korean (optional)
Character modification Rotate (0°, 90°, 180°, 270°) enlarge (1-6X)
Flash Capability 2MB
Flash LOGO Max. 512Kb
Data buffer 64Kb, 4Kb, 45 bytes
Paper type Continuous print, Marked paper
Paper width 57.5/69.5/76/80/82.5mm
Paper thickness 0.06-0.08mm
Paper roll OD 83mm (Max.)
Paper cut Full cut, Partial cut
Input 100~24V AV, 50~60Hz
Output 24V ± 5%DC, 1.5A
Operation conditions 5°C to 45°C, 20% to 90%RH (40°C)
Storage conditions -40°C to 60°C, 20% to 93%RH (40°C)
Print head lifetime 150Km
Cutter lifetime 1,500,000 cuts (full cut, paper thickness:0.065mm)
Dimensions 145(w) x 195(L) x 141(H)
Weight 1.45Kg
Standards CE, CB, FCC, UL

Accessories

Herald alarm / Buzzer for SNBC Printers

Herald Alarm

  • Alarm triggered via the cash drawer port of the printer
  • Alarm triggered via the cash drawer port of the printer
  • Programmable flash-light levels
  • Easy to fit
