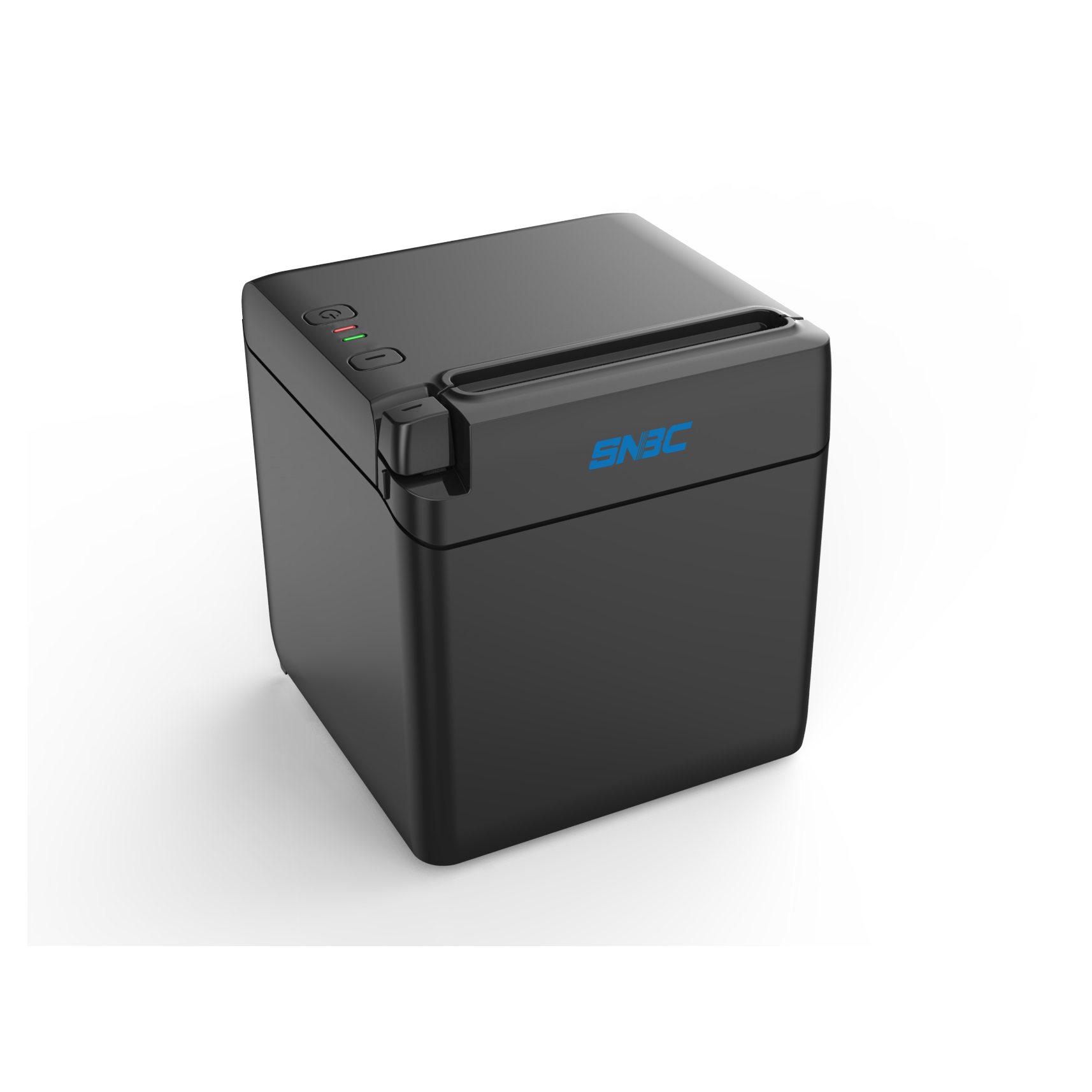

SNBC BTP-S80 thermal printer

Overview

The SNBC BTP-S80 is a high speed, compact, thermal printer, with a print speed of up to 250mm/s. The BTP-S80 thermal printer also features an easy-to-use drop and print paper loading mechanism and low noise. Part of the SNBC BTP range of printers.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

High speed printing, up to 250mm/s
USB, Serial and Ethernet interface as standard
Compact design
Supports top paper out and front paper out applications
Supports wall mounting

The BTP-S80 thermal printer is ideal for hospitality, retail, health care and leisure environments. It is most desirable for hospitality environments such as kitchens and bars due to its front feeding paper exit making it a spill proof design. The spill proof design meets up to IPX1 standard, meaning no liquids, dust or dirt can get trapped inside the printer

BTP-S80	Specification
Print Method	Direct Thermal
Resolution	203 x 203 DPI
Print Width	80mm (Max.)
Print Speed	Max 250mm/s
Memory	RAM 2MB, FLASH 4MB
Sensor	Paper near end sensor, Paper end sensor, TPH position
Driver	Windows drivers (Win2000/XP/2003/Vista/2008/Win7/Win8/Win10), Linux CUPS, MAC
Interface	USB, Serial, Ethernet
Cash drawer control	1-2 cash drawers
Barcode	1D:UPC-A, UPC-E, JAN8 (EAN13), CODE 39, CODE 93, CODE 128, ITF, CODABAR 2D:PDF417, QR, Maxicode, GS1-DataBar
Font	Font A (12 x 24), Font B (9 x 17), traditional Chinese, Korean, Japanese, Thai, Kanji. Font A: 24x24, Simplified Chinese (GB23121, GB18030), English, HK
Character Set	95 Alphanumeric, 14 types international characters, 128x57 graphic (including user-defined page) Traditional/Simplified Chinese, Thai, Japanese, Korean (optional)
Character Modification	Rotate (0°, 90°, 180°, 270°) emphasize, underline, reverse, enlarge (1-6X)
Graphics printing	Bitmap image dowloading and direct bitmap image print, RAM bitmap download: buffer size 128KB, FLASH Bitmap download: buffer size 512KB
Paper Type	Continuous paper, Marked paper
Paper thickness	0.06mm-0.1mm
Paper Width	82.5 ± 0.5, 80 ± 0.5mm, 76 ± 0.5mm, 69 ± 0.5mm, 57.5 ± 0.5mm
Paper roll OD	83mm (Max.)
Paper cut	Full cut, Partial cut
Input	100~24V AV, 50~60Hz
Output	24V ± 5%DC, coverage current 2A
Print head lifetime	150Km
Cutter lifetimg	2,000,000 cuts
Operation condition	5°C to 45°C, 20% to 90%RH (40°C)
Storage condition	-40°C to 60°C, 20% to 93%RH (40°C)
Dimensions	127mm(L) x 127mm(W) x 134mm(H)
Weight	Approx. 1.3Kg
Standards	CE, CB, UL, FCC, CCC
