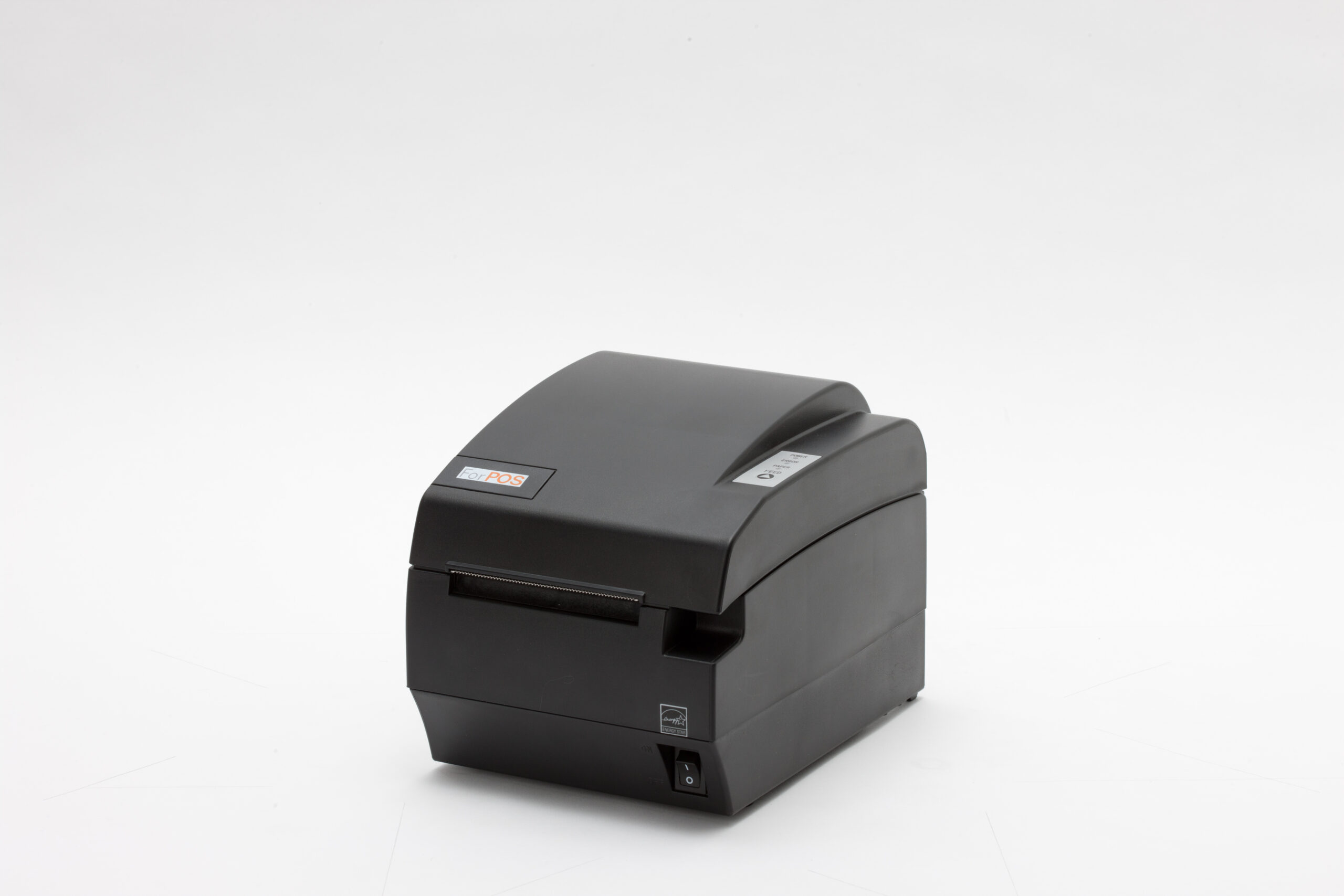

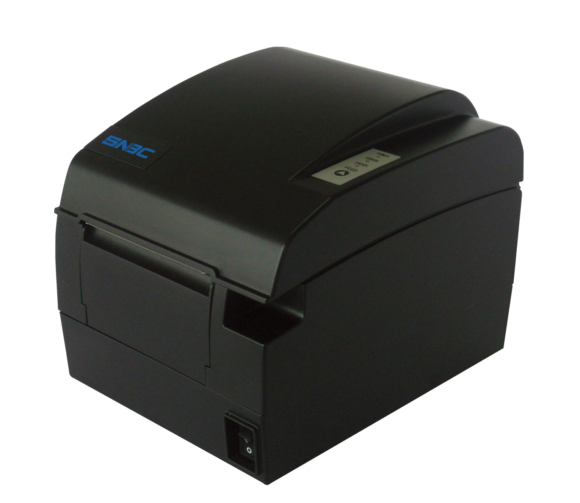

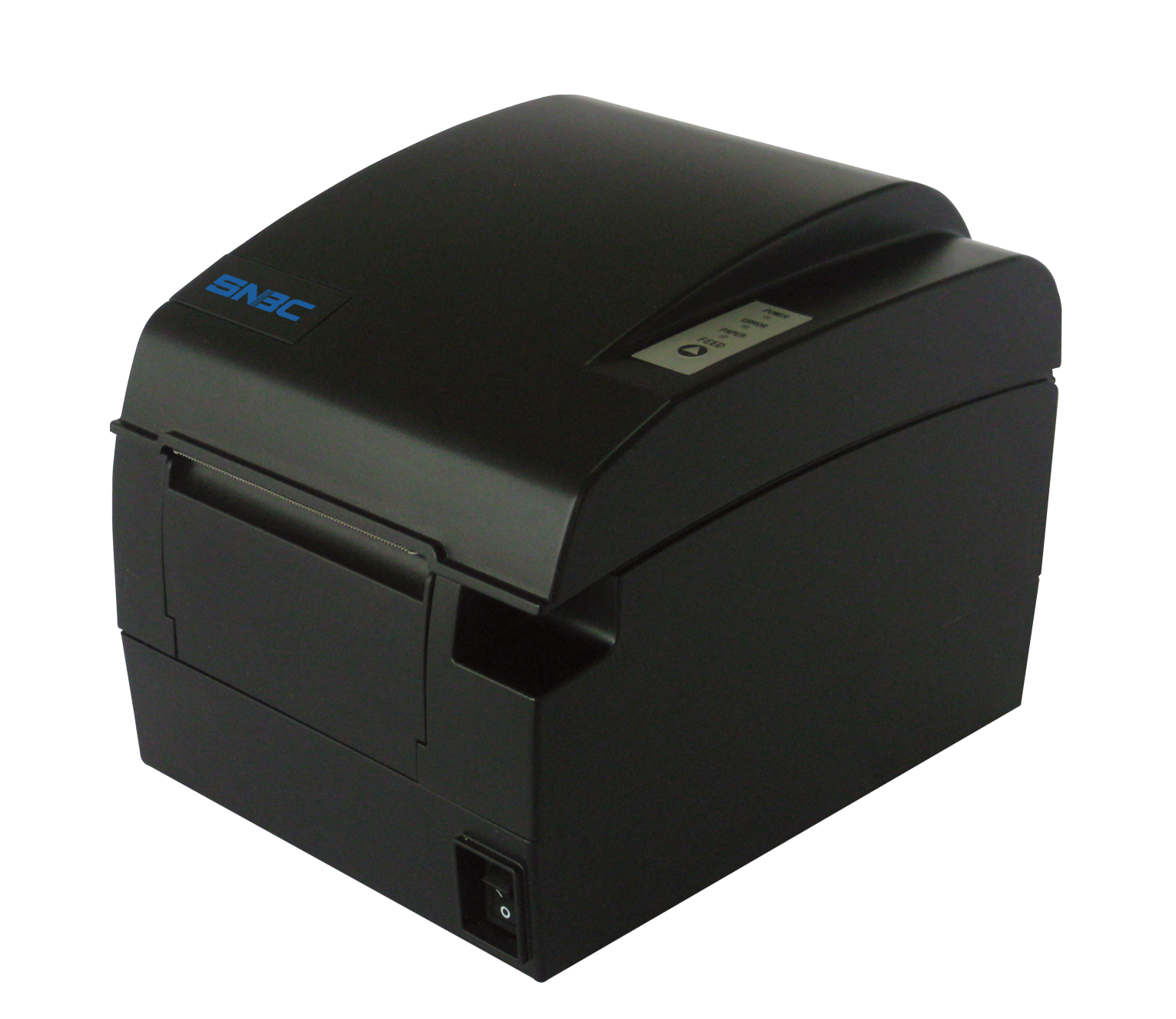

SNBC BTP-R580II thermal printer

Overview

SNBC BTP-R580II is high speed with a print speed of up to 230mm/s. The BTP-R580II also features an easy-to-use drop and print paper loading mechanism and low noise. This printer has an internal power supply reducing exposure of cables and maximising space. Part of the SNBC BTP range of printers.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

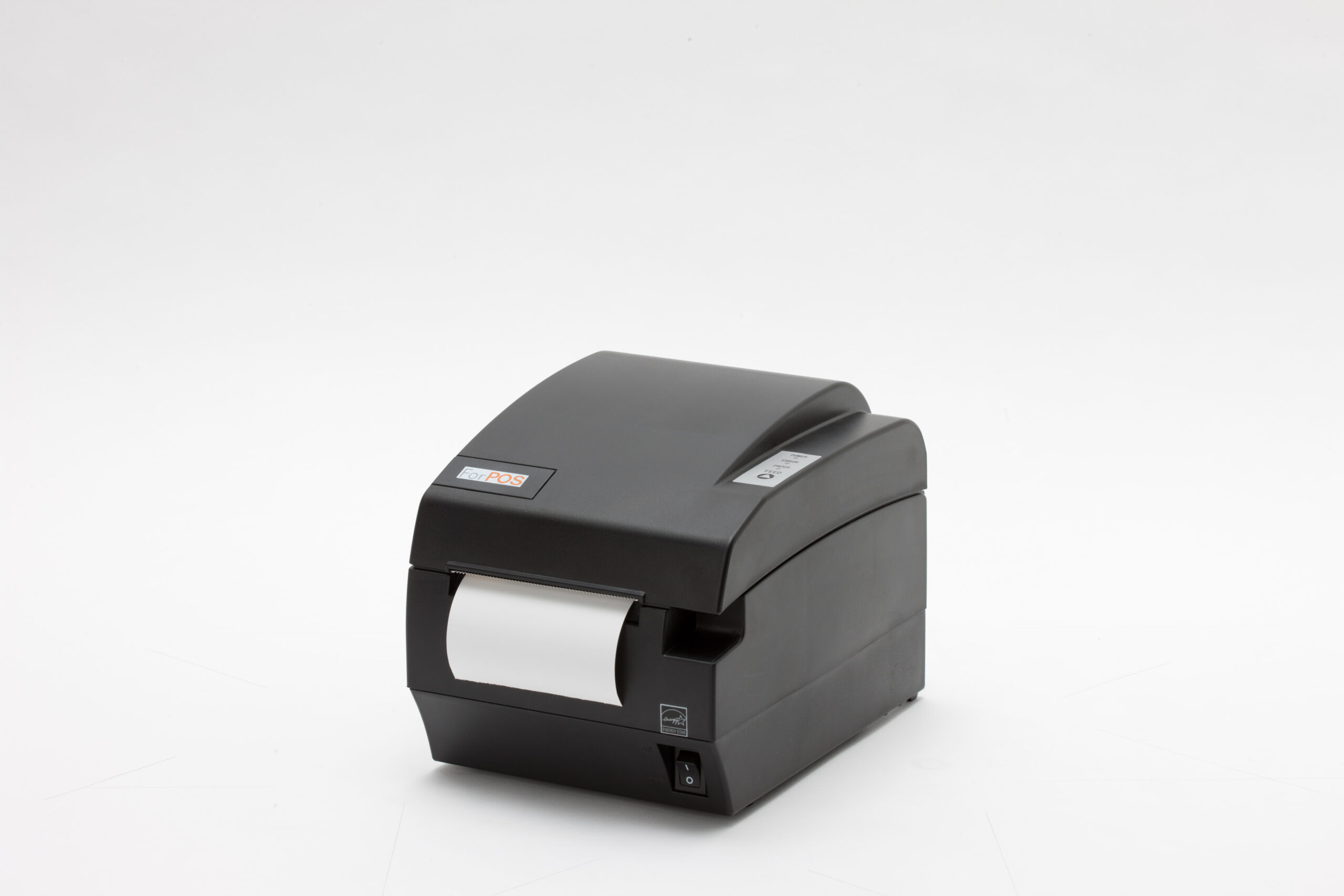

Front paper exit
Print speed up to 230mm/s
USB, Serial and Ethernet interface as standard
Spill-proof meets with IPX1 standard

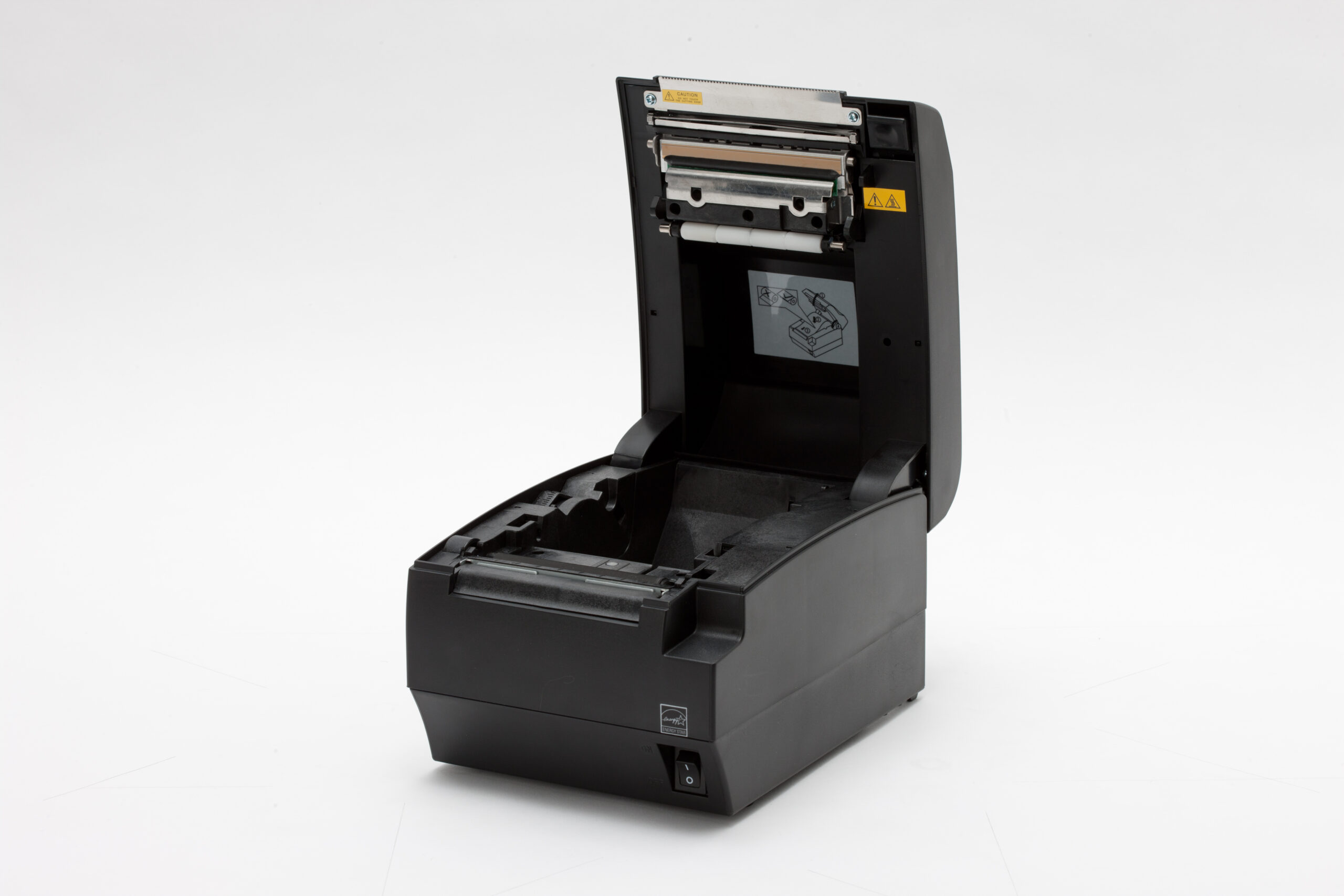

Drop and printer paper loading
Low noise printing
Simple paper jam clearing
Additional options: herald alarm
Multiple interfaces including serial, USB, parallel, Ethernet and WLAN

The BTP-R580II thermal printer is ideal for hospitality, retail, charities and leisure environments. It is most desirable for hospitality environments such as kitchens and bars due to its front feeding paper exit making it a spill proof design. The spill proof design meets up to IPX1 standard, meaning no liquids, dust or dirt can get trapped inside the printer. This thermal printer is ENERGY STAR qualified making it a cost efficient purchase.

BTP-R580II is high speed with a print speed of up to 230mm/s and features an easy-to-use drop and print paper loading mechanism and low noise. This printer has an internal power supply reducing exposure of cables and maximizing space.

This printer has USB, serial interface on board as standard

Additional options include herald kitchen alarms/ buzzers. 1-2 cash drawers (24V) can be powered via this printer. Available in black or white.

This printer has the capability of an integrated company logo plate for promotion of your brand.

BTP-R580II	Specification
Print method	Direct thermal printing
Resolution	203 x 203DPI
Print speed	Standard: 230mm/s (Max), Grey scale print speed: 150mm/s (max), Two-colour print speed: 120mm/s (Max)
Print width	80mm (max)
Memory	RAM: 2MB, Flash: 2MB (standard), 4MB (optional)
Sensors	Paper near end sensor, paper end sensor, TPH sensor, TPH overheating protection , print voltage
Driver	Windows drivers (Win2000/XP/2003/Vista/2008/Win7/Win8), Linux CUPS, MAC
Interface	USB, Serial, Ethernet
Cash drawer control	1-2 cash drawers
Barcode	1D:UPC-A, UPC-E, EAN13, EAN8, CODE 39, CODE 93, CODE 128, ITF, CODABAR 2D:PDF417, QR, Maxicode, GS1-DataBar
Font	Font A (12 x 24), Font B (9 x 17), Kanji. Font A: 24x24,
Character Set	95 Alphanumeric, 13 types international characters, Traditional/Simplified Chinese, Japanese, Korean (optional)
Character Modification	Rotate (0°, 90°, 180°, 270°) emphasize, underline, reverse, enlarge (1-6X)
Graphics printing	Bitmap image dowloading and direct bitmap image print, RAM bitmap download: buffer size 128KB, FLASH Bitmap download: buffer size 512KB
Paper Type	Continuous paper, Marked paper
Paper thickness	0.06mm-0.1mm
Paper Width	54.5-82.5mm
Paper roll OD	100mm (Max)
Paper cut	Full cut, Partial cut, Tear off
Input	100~24V AV, 50~60Hz
Output	24V ± 5%DC, coverage current 2A
Print head lifetime	150Km
Cutter lifetimg	2,000,000 cuts (full cut, paper thickness: 0.07mm)
MCBF	70,000,000 lines
MTBF	360,000 hours
Operation condition	5°C to 45°C, 20% to 90%RH (40°C)
Storage condition	-40°C to 60°C, 20% to 93%RH (40°C)
Dimensions	203mm(L) x 155.5mm(W) x 160mm(H)
Weight	Approx. 1.3Kg
Standards	CE, CB, UL, FCC, CCC
