Bixolon SLP-TX420 4” thermal transfer or direct thermal desktop label printer

Make an enquiry

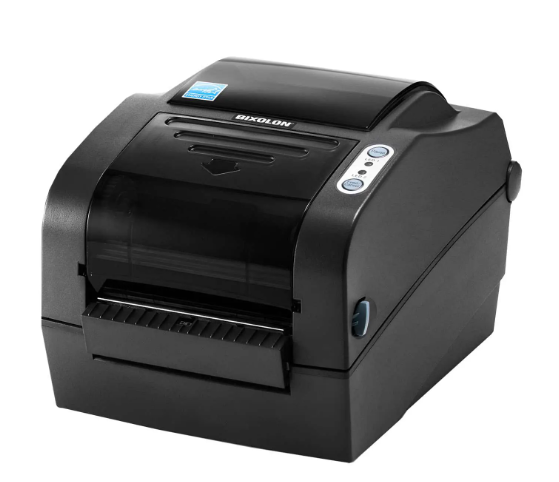

Bixolon SLP-TX420 4” thermal transfer or direct thermal desktop label printer

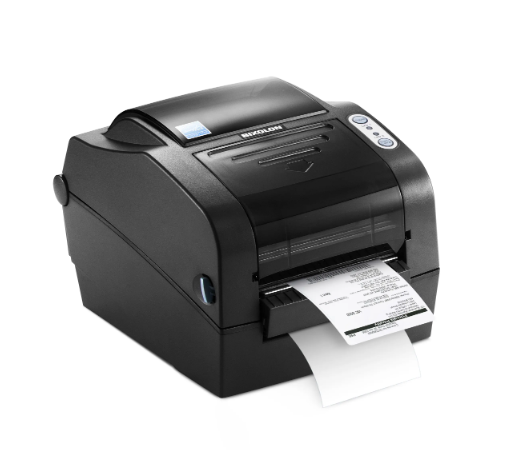

Bixolon SLP-TX420 4” thermal transfer or direct thermal desktop label printer printing

Overview

The Bixolon SLP-TX420, compact and robust and easy to use 4” thermal transfer or direct thermal desktop printer with optional WiFi enabling simple, consistent printing from Android tablets and smartphones and other smart devices. Part of the Bixolon SLP Series, see more about the Bixolon SLP-TX420 in it's Youtube Showcase Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • High quality 4” label and barcode Thermal Transfer or Direct Thermal printer
  • Optional WiFi connectivity
  • High print speed & quality label printing at 178mm/sec (7ips)
  • 203 or 300dpi high quality printing for text, graphics and 1D/2D barcodes
  • Triple interface: Standard: USB, Serial and Parallel Optional: USB, Serial, Ethernet & WLAN*
  • Autocutter or Peeler options
  • 2 year warranty

Offering high speed label printing up to 178mm/second, and superior print quality of 203dpi enabling high quality barcode printing for a range of requirements such as 2D, Maxicode, PDF 417, QR Code and Data Matrix applications. The SLP-TX420 also offers Autocutter or Peeler options.

Offering the All-in-one interface, with Serial, Parallel & USB as standard and optional Serial, USB, Ethernet & WLAN*. The SLP-TX420 is fully compatible with market-leading programming languages such as SLCS, BPL-Z™ and BPL-E™.

The SLP-TX420 also boasts BIXOLON label printer intelligence with Smart Media Detection™, the automatic detection of label and receipt media type and BIXOLON Label Artist™, free-of-charge label customisation software.

*WLAN: 802.11b/g/n USB dongle type (not included in the package)

Specification
Print Method Thermal Transfer, Direct Thermal
Print Speed SLP-TX420: Up to 7 ips (178 mm/s) SLP-TX423: Up to 5 ips (127 mm/s)
Print Resolution SLP-TX420: 203 dpi SLP-TX423: 300 dpi
Print Width SLP-TX420: Up to 108 mm SLP-TX423: Up to 105.7 mm
Print Length 6 ~ 2000 mm
Sensor Transmissive, Reflective (adjustable), Ribbon-End, Head open
Media Type Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width 20 ~ 110 mm
Media Roll Diameter Up to 130 mm
Media Thickness 0.06 ~ 0.20 mm
Supply Method Easy Paper Loading
Ribbon Type Wax, Wax/Resin, Resin, Outside
Ribbon Width 110 mm
Ribbon Length Up to 74 m
Core Inner Diameter 12.5 mm
Dimensions (W x L x H) 200 x 252 x 173 mm (7.87 x 9.92 x 6.81 inch)
Weight 2.35 kg (5.18 lbs.)
Power EnergyStar Certified, External Power Adaptor 100-240V AC, 50/60Hz
Memory 64MB SDRAM, 128MB FlashROM
Interface All-In-One Interface Standard: USBV2.0 HS + Serial + Parallel Optional: USBV2.0 HS + Serial + Ethernet + WLAN* * WLAN: 802.11b/g/n USB dongle type (optional)
Temperature Operating: 5 ~ 40˚C (41 ~ 104˚F) Storage: -20 ~ 60˚C (-4 ~ 140˚F)
Humidity Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH
Emulation SLCS, BPL-Z™, BPL-E™
Driver / Utility Windows Driver (Euro Plus/Seagull), Linux CUPS Driver, Mac Driver, Virtual COM USB/Ethernet Driver, Utiltiy Program, Label Artist™
SDK Android SDK
Fonts • 10 SLCS Resident Bitmap Fonts • One SLCS Resident Scalable Font • 16 BPL-Z™ Resident Bitmap Fonts • One BPL-Z™ Resident Scalable Font • 5 BPL-E™ Resident Bitmap Fonts • 23 Code Page • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics Supporting user-defined fonts, graphics, formats, and logos
Barcode Symbologies 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB 2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC39
Options Ethernet, WLAN (USB dongle type), Peeler, Auto Cutter, RTC (Real Time Clock), External Paper Supply
