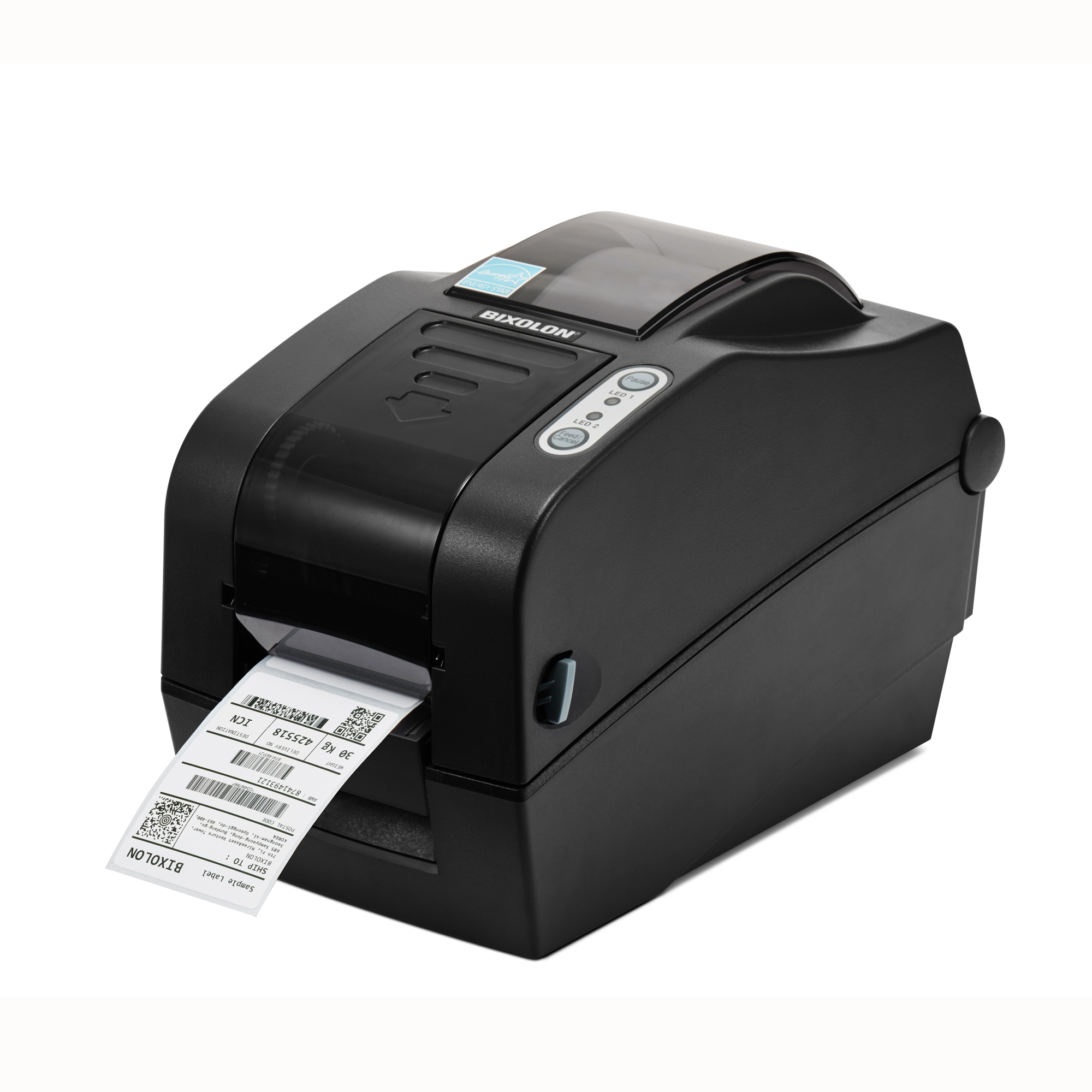

Bixolon SLP-TX220 2” thermal transfer desktop label printer

Overview

Bixolon SLP-TX220 2” thermal transfer desktop label printer with optional Bluetooth or Wi-Fi is perfect for a range of applications from wrist banding, order labelling to barcode printing. Part of the Bixolon SLP Series. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Slim line, high quality 2” thermal transfer label printer with optional Bluetooth and Wi-Fi capabilities
  • Mobile device compatible with built-in Bluetooth with MFi iAP2 certification
  • 203 or 300dpi high quality printing for text, graphics and 1D/2D barcodes
  • Fast data processing and printing speed up to 152mm/sec (6ips)
  • Autocutter and Peeler options
  • Dual interface as standard: Serial & USB (optional Ethernet, USB & WLAN dongle or USB WLAN & Bluetooth)
  • 2 year warranty

The SLP-TX220 is the world’s first 2” thermal transfer desktop printer with built-in Bluetooth with MFi iAP2 certification. Teamed with a smart Bluetooth Auto Switch allowing easy switching from iOS settings to standard Bluetooth mode.

Printing at speeds up to 6ips (152mm/second) and high resolution 203dpi print quality. The SLP-TX220 provides fast data processing speeds for various types of labels. Designed with Autocutter and Peeler options, the SLP-TX220 features a space saving 74mm ribbon and easy paper loading, alongside an adjustable paper guide.

Featuring a Dual interface, with USB & Serial as standard and optional USB, Ethernet and WLAN* or USB, WLAN & Bluetooth** options. The SLP-TX220 is fully compatible with market-leading programming languages such as SLCS, BPL-Z™ and BPL-E™.

BIXOLON Label Artist™ completes the package, this free-of-charge label customisation software, supporting database connection as well as text, drawing lines and boxes, alongside a range of graphics and 1D/2D barcode printing.

*WLAN: 802.11b/g/n USB dongle type (not included in the package)
** Bluetooth: Built-in type, MFi iAP2 certified (Consensus required)

Specification
Print Method Thermal Transfer, Direct Thermal
Print Speed SLP-TX220: Up to 6 ips (152 mm/sec) SLP-TX223: Up to 4 ips (100 mm/sec)
Print Resolution SLP-TX220: 203 dpi SLP-TX223: 300 dpi
Print Width SLP-TX220: Up to 54 mm SLP-TX223: Up to 56.9 mm
Print Length 6 ~ 2000 mm
Sensor Transmissive, Reflective (Adjustable), Head Open
Media Type Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width 15 ~ 60 mm
Media Roll Diameter Up to 130 mm
Media Thickness 0.06 ~ 0.20 mm
Supply Method Easy Paper Loading
Ribbon Type Wax, Wax/Resin, Resin, Outside
Ribbon Width 58 mm
Ribbon Length Up to 74 m
Ribbon Width 12.5 mm
Dimensions (WxDxH) 144 x 250 x 173mm (5.67 x 9.84 x 6.81 inch)
Weight 1.71 kg (3.77 lbs.)
Power EnergyStar Certified, External Power Adaptor 100-240V AC, 50/60Hz
Memory 64MB SDRAM, 128MB FlashROM
Interface Options Dual Interface Standard: USB+Serial Optional: USB+Ethernet+WLAN* USB+WLAN*+Bluetooth** * WLAN: 802.11b/g/n USB dongle type (Optional) ** Bluetooth: Built-in type, MFi iAP2 certified (Consensus required)
Temperature Operating: 5 ~ 40℃ (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH
Emulation SLCS, BPL-Z™, BPL-E™
Drivers Windows Driver (Euro Plus/Seagull), Linux / Mac CUPS Driver, Virtual COM USB/Ethernet Driver, Utility Program, Label Artist™
SDKs Android SDK, iOS SDK, Windows SDK
Fonts • 10 SLCS Resident Bitmap Fonts • One SLCS Resident Scalable Font • 16 BPL-Z™ Resident Bitmap Fonts • One BPL-Z™ Resident Scalable Font • 5 BPL-E™ Resident Bitmap Fonts • 23 Code Page • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics Supporting user-defined fonts, graphics, formats, and logos
Barcode Symbologies 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB 2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Options Ethernet, WLAN (USB dongle type), Peeler, Auto Cutter, RTC (Real Time Clock), Bluetooth(Built-in type), External Paper Supply BIXOLON SLP-TX220 Brochure
