Bixolon SLP-DX220 2” direct thermal barcode label printer

Overview

Bixolon SLP-DX220 is a direct thermal barcode label printer. Ideal for a range of applications from wrist banding, order labelling, barcode printing and also label printing. Part of the Bixolon SLP Series. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Slim line, high quality Direct Thermal label and barcode printer with optional WiFi compatibility
  • High quality label printing at speeds up to 152mm/sec (6ips)
  • 203 or 300dpi high quality printing for text, graphics and 1D/2D barcodes
  • Autocutter and Peeler options
  • Dual interface as standard: Serial & USB (optional Ethernet, USB & WLAN dongle)
  • 2 year warranty

Offering print speeds up to 6ips (152mm/second) and high resolution 203dpi print quality. The SLP-Dx220 provides fast data processing speeds for various types of labels. The SLP-DX220 also offers Autocutter and Peeler options.

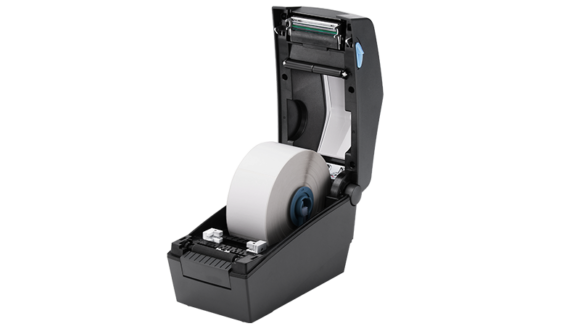

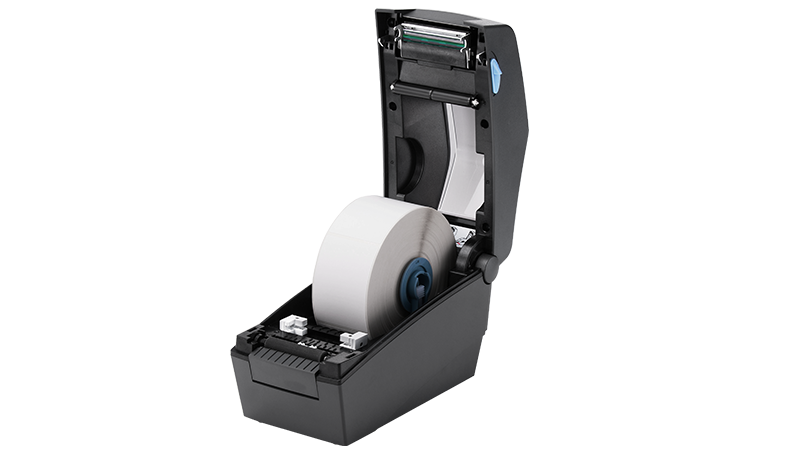

The SLP-DX220’s dynamic design with easy paper loading and adjustable paper guide provides the option for various media sizes.

Offering the dual interface, with USB & Serial standard and optional USB, Ethernet and WLAN*. The SLP-DX220 is fully compatible with market-leading programming languages such as SLCS, BPL-Z™ and BPL-E™.

BIXOLON Label Artist™ completes the package, this free-of-charge label customisation software, supporting database connection as well as text, drawing lines and boxes, alongside a range of graphics and 1D/2D barcode printing.

*WLAN: 802.11b/g/n USB dongle type (not included in the package)

Specification
Print Method Direct Thermal
Print Speed SLP-DX420: Up to 7 ips (178 mm/s) SLP-DX423: Up to 5 ips (127 mm/s)
Print Resolution SLP-DX420: 203 dpi SLP-DX423: 300 dpi
Print Width SLP-DX420: Up to 108 mm SLP-DX423: Up to 105.7 mm
Print Length 6 ~ 1000 mm
Sensor Transmissive, Reflective (adjustable), Head open
Media Type Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width 20 ~ 110 mm
Media Roll Diameter Up to 130 mm
Media Thickness 0.06 ~ 0.20 mm
Supply Method Easy Paper Loading
Dimensions (W x L x H) 194 x 243 x 171 mm (7.63 x 9.56 x 6.73 inch)
Weight 2.20 kg (4.85 lbs.)
Power EnergyStar Certified, External Power Adaptor 100-240V AC, 50/60Hz
Memory 64MB SDRAM, 128MB FlashROM
Interface Triple Interface Standard: USBV2.0 HS + Serial + Parallel Optional: USBV2.0 HS + Serial + Ethernet + WLAN* * WLAN: 802.11b/g/n USB dongle type (optional)
Temperature Operating: 0 ~ 40˚C (32 ~ 104˚F) Storage: -20 ~ 60˚C (-4 ~ 140˚F)
Humidity Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH
Emulation SLCS, BPL-Z™, BPL-E™
Driver / Utility Windows Driver (Euro Plus/Seagull), OPOS Driver, Linux CUPS Driver, Mac Driver, Virtual COM USB/Ethernet Driver, Utility Program, Label Artist™
SDK Android SDK
Fonts • 10 SLCS Resident Bitmap Fonts • One SLCS Resident Scalable Font • 16 BPL-Z™ Resident Bitmap Fonts • One BPL-Z™ Resident Scalable Font • 5 BPL-E™ Resident Bitmap Fonts • 23 Code Page • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics Supporting user-defined fonts, graphics, formats, and logos
Barcode Symbologies 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC39
Options Ethernet, WLAN (USB dongle type), Peeler, Auto Cutter, RTC (Real Time Clock), External Paper Supply
