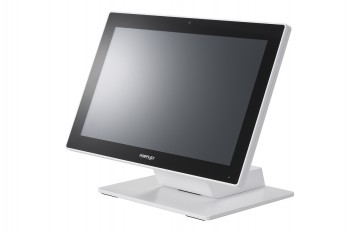

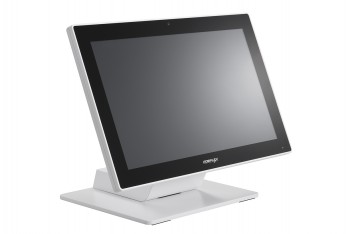

Posiflex RT-5116 15.6" i5 POS Terminal

Overview

The Posiflex RT-5116 radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. Furthermore, the RT-5116 is taking POS terminal design into the next level, setting your brand image apart from the others. Part of the Posiflex RT Series. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15.6" Widescreen True-flat PCAP touch screen with multi-touch support
  • Intel Skylake Core i5-6300U, up to 3.00 GHz / Intel Kaby Lake Core i5-7300U, up to 3.50 GHz
  • DDR4 SO-DIMM slot x 2, max. 16GB
  • 128Gb SSD (2 x SATA)

Slim & Stylish Look

With sleek contours, ultra-slim body, and linear rear cover surface, the RT-5116 features a 15.6″ PCAP touch screen, and full suite of ports that are hidden in the clean rear cover. No screws can be found on its surface maintaining a neat and sleek look.

Patented Fanless Technology

The patented fan-less technology allows the terminal to run quietly in all kinds of harsh conditions and – at the same time – provides a long service life.

Clean Cable Management

Advanced cable management design delivers a truly clutter-free station. The standard base can house the optional Powered USB or USB extension module, while the optional base integrates a UPS backup (RB-5000) for the event of a power failure.

Faster Installation and Serviceability

Rear cover can be removed easily and without tools, thus allowing faster installation and serviceability.

Save Your Time and Money

The terminal can be shipped with customer line display or 9.7” / 10” 2nd customer facing LCD display attached and folded, saving deployment time as well as shipping costs.

Complete your POS bundle by adding a cash drawer and printer to your order.
The ForPOS range of cash drawers will meet any retail and hospitality need. Heavy duty for harsh environments or flip top for a compact space saver the ForPOS range of cash drawers offer reliability and high quality.
ForPOS also offer a wide range of receipt, label and mobile printers.  Compatible with all major operating systems and with a range interface options and accessories.

System Configuration
Processor Intel Skylake Core i5-6300U, up to 3.00 GHz, 3M Cache; Intel Kaby Lake Core i5-7300U, up to 3.50 GHz, 3M cache
System Memory DDR4 SO-DIMM slot x 2, max. 16GB
Storage Device SATA storage x 2
RAID Function Yes, SATA HDD default x 2
Intel vPro Support Yes
TPM Support Yes
Power Supply 12V/60W
OS Support Windows 7/POSReady 7/Windows Embedded 8.1 Industry 64 bit/Windows 10 IoT 64 bit/ Linux per request for Skylake processor Windows 10 IoT 64 bit for Kaby Lake processor
Spill & resistance N/A
Display & Touch
LCD 15.6" TFT LCD
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port 5, USB 3.0 x 2 + USB 2.0 x 3
Parallel Port N/A
Powered USB Port Optional PoweredUSB module with 24V + 12V (USB 3.0 x 1 will no longer be available with the PoweredUSB module)
LAN Port 10/100/1000 Mb x 1
Display Port VGA via proprietary connector (12V support for Posiflex monitors) x 1+ mini DP x 1
CR Port 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port N/A
UPS Port N/A
Audio Internal 2W speaker x 1
M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm) 402 x 207 x 297
Weight (N. W. in kg) 5
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD); 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi M.2 WiFi/BT module
Camera 1MP wide angle camera
AG Glass Cannot co-exist with built-in camera
* The product information and specifications are subject to change without prior notice.
