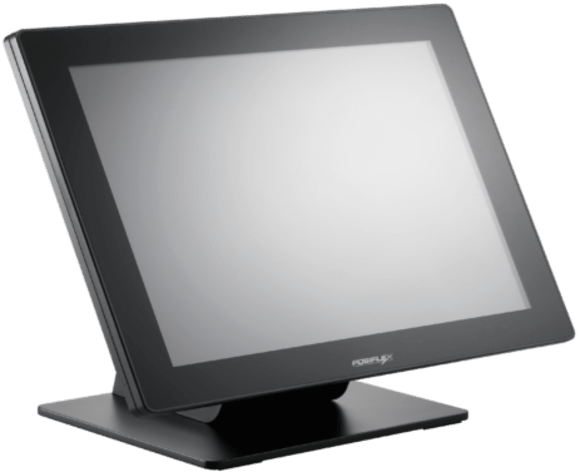

Posiflex RT-2016-G2 POS Terminal

Overview

The RT-2016-G2 radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The RT-2016-G2 is taking POS terminal design into the next level, setting your brand image apart from the others. Part of the Posiflex RT Series. Drivers and Utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15.6" True-flat PCAP Touch Screen
  • Intel Elkhart Lake Celeron J6412 Processor
  • 4 Gb RAM as standard
  • 128 Gb SSD as standard

Slim & Stylish Look

  • With sleek contours, ultra-slim body, and linear rear cover surface, the RT-2016-G2 features a 15.6″ PCAP touch screen, and full suite of ports that are hidden in the clean rear cover. No screws can be found on its surface maintaining a neat and sleek look.

Patented Fanless Technology

  • The patented fan-less technology allows the terminal to run quietly in all kinds of harsh conditions and – at the same time – provides a long service life.

Clean Cable Management

  • Advanced cable management design delivers a truly clutter-free station. The standard base can house the optional Powered USB or USB extension module, while the optional base integrates a UPS backup (RB-5000) for the event of a power failure.

Faster Installation and Serviceability

  • Rear cover can be removed easily and without tools, thus allowing faster installation and serviceability.

Save Your Time and Money

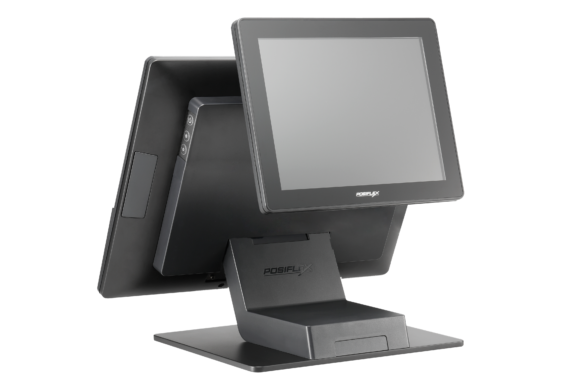

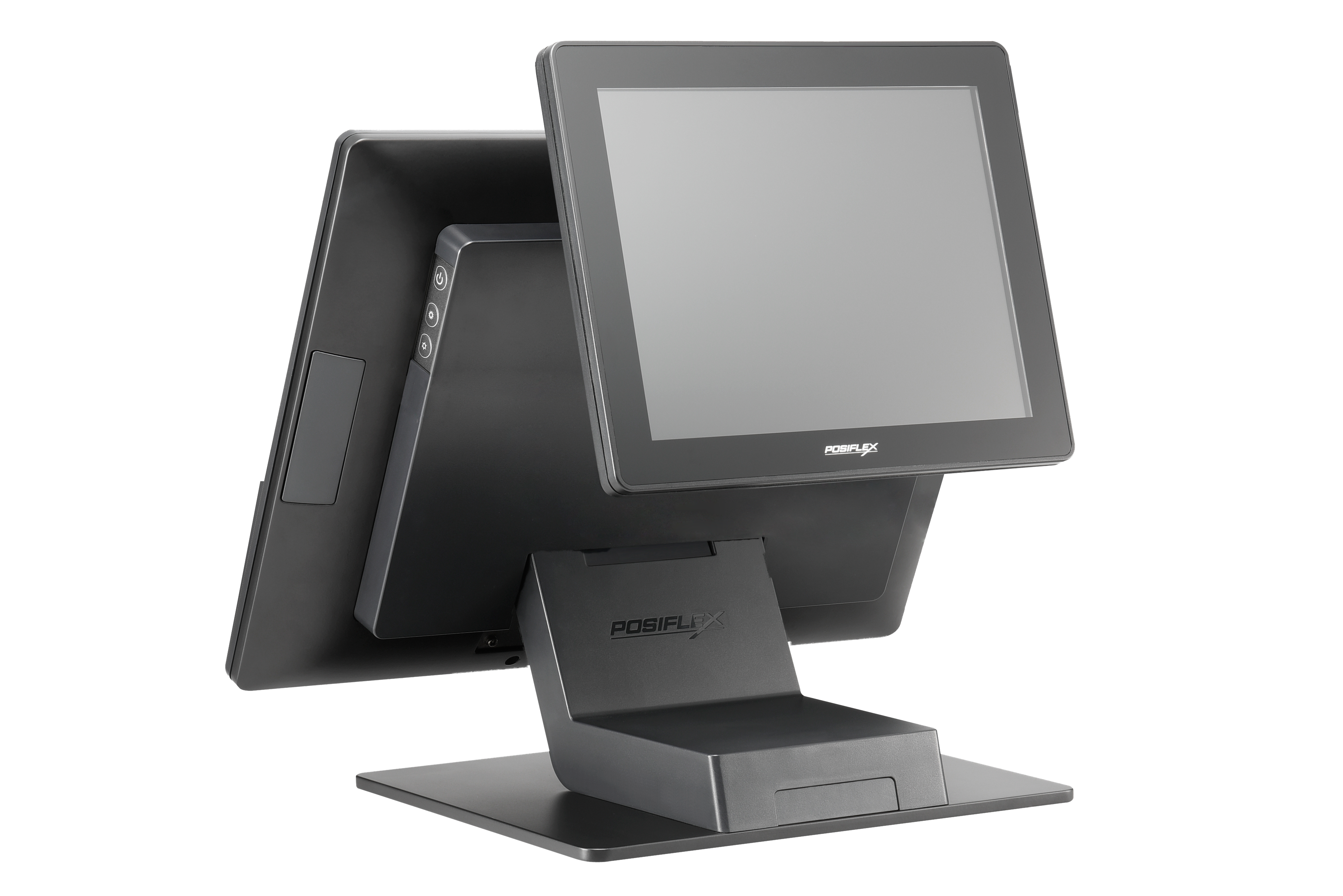

  • The terminal can be shipped with customer line display or 9.7” / 10” 2nd customer facing LCD display attached and folded, saving deployment time as well as shipping costs.



System Configuration
Processor Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory DDR4 SO-DIMM x 2, max. 32GB
Storage Device M.2 connector [SATA Signal Only] x 2
RAID Function N/A
Intel vPro Support N/A
TPM Support Yes, TPM 2.0
Power Supply 12V/60W
OS Support Windows 10 IoT 64 bit
Display & Touch
LCD 15.6" TFT LCD
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Parallel Port N/A
Standard USB Port 5, USB 3.0 x 2 + USB 2.0 x 3
PoweredUSB Port Optional Powered USB module with 24V + 12V (USB 2.0 x 1 will no longer be available with the Powered USB module)
OTG USB N/A
LAN Port 10/100/1000 Mb x 1
Display Port VGA via proprietary connector (12V support for Posiflex monitors) x 1+ mini DP x 1
CR Port 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port N/A
UPS Port N/A
Audio Internal 2W speaker x 1
Expansion Slot M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm) 402 x 207 x 297
Weight (N. W. in kg) 5
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi M.2 WiFi/BT module
Camera 1MP wide angle camera
MSR N/A
AG Glass Cannot coexist with built-in camera
