Posiflex PS-3615-G2

Overview

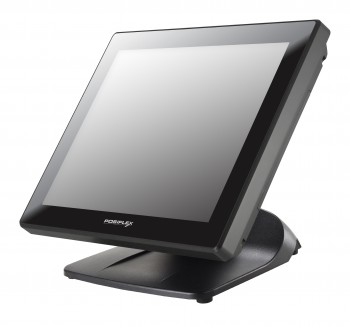

The PS-3615-G2 POS terminal is crafted with functionality and flexibility as a priority. The PS-3615-G2 POS terminal features a 15” wide PCAP touch screen, fanless technology, and an adjustable base. This design allows the terminal to meet both retailers' and consumers' expectations—all within an affordable, yet attractive and feature-rich terminal. Part of the Posiflex PS Series. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15" PCAP wide touchscreen
  • Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
  • DDR4 SO-DIMM x 1, max. 16GB
  • M.2 connector (SATA Signal Only) x 1

Intelligently Designed

Equipped with an adjustable base, PS-3615-G2 enables the ultimate flexibility for space-limited environments.

Expanded Capability

By separating a full set of ports into the top of the terminal, PS-3615-G2 provides extensive connections, easy accessibility, and reliable peripheral cabling.

Compact

Equipped with Intel® Elkhart Lake processor, PS-3615-G2 comes with a 15″ PCAP wide touchscreen and is tailored to operate in an ever-changing retail environment.

ForPOS Complete Solution!
Complete your POS bundle by adding a cash drawer and printer to your order.
The ForPOS range of cash drawers will meet any retail and hospitality need. Heavy duty for harsh environments or flip top for a compact space saver the ForPOS range of cash drawers offer reliability and high quality.
we also offer a wide range of receipt, label and mobile printers.  Compatible with all major operating systems and with a range interface options and accessories.
System Configuration
Processor Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory DDR4 SO-DIMM x 1, max. 16GB
Storage Device M.2 connector (SATA Signal Only) x 1
RAID Function N/A
Intel vPro Support N/A
TPM Support Yes, TPM 2.0
Power Supply 12V/60W
OS Support Windows 10 IoT 64 bit
Display & Touch
LCD 15" TFT LCD
Resolution 1024 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port 4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port 1, via optional conversion cable through service window
Standard USB Port 5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
PoweredUSB Port Optional 24V x 1 + 12V x 3 via GEN8 base
OTG USB N/A
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port 1, via optional conversion cable through service window
UPS Port N/A
Audio Buzzer x 1; Optional internal 2W speaker x 1
Expansion Slot M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm) 372 x 252.7 x 320
Weight (N. W. in kg) 5.86
Environmental
Operating Condition 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi M.2 WiFi/BT module
Camera N/A
MSR N/A
AG Glass N/A
Attachment Options
POS Monitor Non-touch TFT USB LCD: 7"/9.7"
Line Display 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display; 7" color LCD graphical line display
External UPS Pack For RT Series N/A
Attachment MSR; iButton; RFID; Fingerprint Sensor; Keypad
