Overview

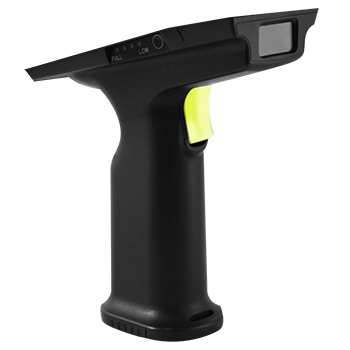

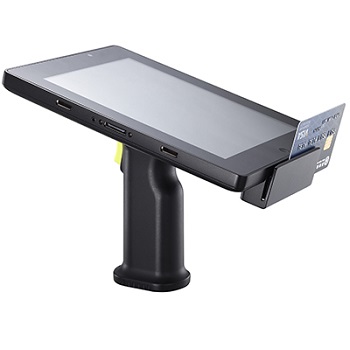

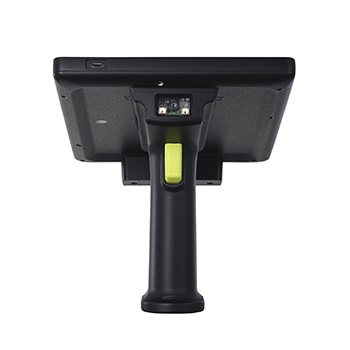

The PG-201E for MT Series tablet (except MT-5310W) is a truly ingenious invention. It houses a 2D barcode scanner in the pistol grip shape handle, which is ergonomically designed to take the strain out of operator’s hand and arm. Furthermore, the additional removable battery that goes into the pistol grip effectively lengthens the operation life of the tablet.
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My accountThe PG-201E for MT Series tablet is a truly ingenious invention. It houses a 2D barcode scanner in the pistol grip shape handle, which is ergonomically designed to take the strain out of operator’s hand and arm, and enables the user to easily carry and handle the tablet. The additional removable battery that goes into the pistol grip effectively lengthens the operation life of the tablet.
| 2D Scanner Module | |
| Symbologies Supported: | 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode |
| Postal Codes: | US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX) |
| Sensor Resolution: | 752 x 480 pixels |
| Field of View: | Horizontal: 40°, Vertical: 25°, Skew Tolerance: ±60°, Pitch Tolerance: ±60°, Roll Tolerance: 360° |
| Focal Distance from Front of Engine: | SR: 8 in. DL: 5.3 in. HD: 2.9 in. |
| Aiming LED (VLD): | 655 ±10 nm Laser |
| Illumination Element: | 625 ±5 nm LEDs (2x) |
| Print Contrast: | Minimum 25% absolute dark/light reflectance measured at 650 nm |
| Swappable Battery | |
| Equipped with a 5000 mAh swappable battery in addition to the built-in battery in the MT Series tablet to prolong the operation time. |
