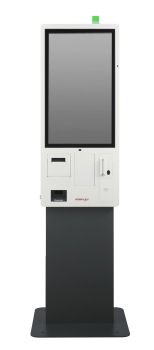

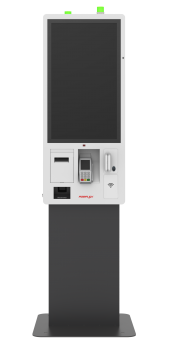

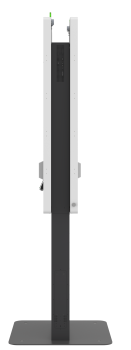

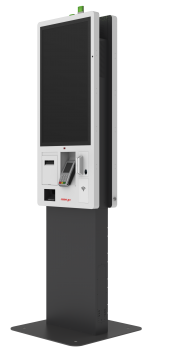

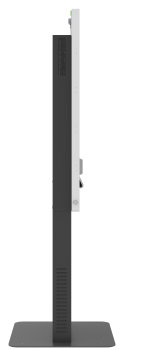

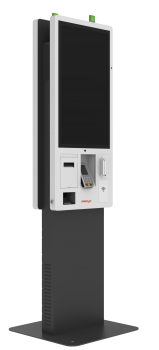

Posiflex JK-3250 32" Self Service Kiosk

Make an enquiry
Posiflex JK-3250 32" Self Service Kiosk

Overview

Posiflex JK-3250 32" Self Service Kiosk. Designed with slimness and flexibility in mind, the Posiflex Cachet JK-3250 is a 32” kiosk that offers endless different ways to blend into any retail environment. With a true-flat enclosure, along with a wide range of peripheral options, the Posiflex Cachet JK-3250 Kiosk is capable of processing all the self-service applications while helping retailers to build intimate relationship with customers. Part of the Posiflex JK Series Self Service Kiosks. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 32” PCAP touch screen
  • Intel 7th Generation Kaby Lake U Core i3/i5
  • Up to 8Gb RAM
  • SSD
  • Slim & Flexible

Slim, Modern, and Intelligent
With a true-flat enclosure, the Cachet JK-3200 Series features a bright, high definition 32” PCAP touch screen that makes it easy for customers to interact in a way they want.

Tailored for Easy Maintenance
Designed for easy installation, cable management, and maintenance, the Cachet JK-3200 Series makes everything simple, slim, and cost-efficient.

Flexible Configurations

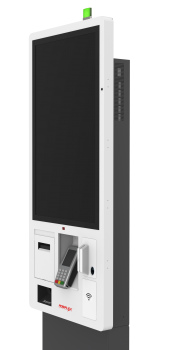

Offering flexible configurations in wall-mounted, single or dual-sided operation, the Cachet JK-3200 Series adapts to evolving business needs.

Limitless Possibilities
The Cachet JK-3200 Series is integrated with a variety of peripheral options in self-service applications, including 2D scanner, receipt printer, NFC, service indicator, bracket for EMV payment devices, and more.

Specification
Processor Intel 7th Generation Kaby Lake U Core i3/i5
System Memory DDR4 SO-DIMM slot x 1, max. 16 GB
Storage Device SATA SSD x 1
Intel vPro Support Core i3: N/A Core i5: Yes (for option)
TPM Support Yes (for option)
Power Supply 12V/60W x 1 + 24V/60W x 1
OS Support Windows 10 IoT 64 bit
Serial Port 3, RJ50 x 2 + DB9 x 1
Standard USB Port 8, USB 3.0 x 2 + USB 2.0 x 6
OTG USB N/A
Display Port HDMI x 1
LAN Port 10/100/1000 Mb x 2
Audio Internal 3W speaker x 2
Internal Expansion Slot M.2 x 1
Display & Touch
LCD 32"
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support
Physical Dimension
Dimension (W x D x H in mm) 602 x 602 x 1902 (Floor-standing) 495 x 152 x 1152 (Wall-mounted)
Weight (N. W. in kg) 65 (with pole) 35 (with wall mount bracket)
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Standard Components
Status Indicator RGB Color LED Indicator
Proximity Sensor Range from 60 cm to 100 cm
Camera 1MP wide angle camera
Printer 3" thermal printer w/auto cutter, 200 mm/sec (max.)
Optional Components
WiFi M.2 WiFi/BT module
Scanner 2D barcode scanner
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
NFC/RFID Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G LTE Support selected bands & countries with full SIM slot (mini-PCIe module) by request
* The product information and specifications are subject to change without prior notice.
