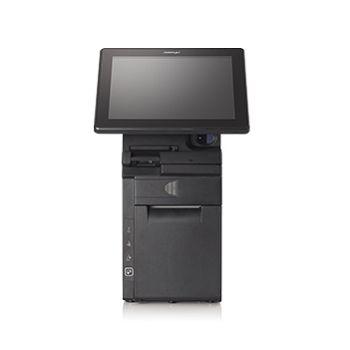

Posiflex HS-6510W all-in-one POS Terminal

Overview

The Posiflex HS-6510W is the new high-end all-in-one terminal that runs on KABYLAKE-U celeron processor. It packs innovativeness and functionality in compact design with stylish look, which is ideal for retail businesses where space is at premium. Its compact all-in-one design frees more room for counter space, so that the store owner can display and promote more merchandise to maximise sales opportunities.

Part of the Posiflex HS Series.

Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

9.7" true-flat projected capacitive touch screen
KABYLAKE-U 3965 celeron Processor
Up to 16Gb RAM
128Gb SSD as standard
Built-in, 3” thermal printer with auto cutter
Compact, all-in-one
Tidy cable management
IP65 rated

Innovative All-in-one Solution
Featuring a 10” PCAP touch screen, the HS-6510W integrates the most widely used peripherals options in daily POS operation including MSR, fingerprint sensor, RFID reader, barcode scanner and thermal printer.
Small Form Factor
Its compact footprint takes space saving to extremes and creates a clean, cable-free environment.
Modular Design
Detachable modularized printer design allows quick access to the components, enabling convenient, efficient serviceability.

Complete your POS bundle by adding a cash drawer to your order.
The ForPOS range of cash drawers will meet any retail and hospitality need. Heavy duty for harsh environments or flip top for a compact space saver the ForPOS range of cash drawers offer reliability and high quality.

Specification	HS-6510W
Processor	Kaby Lake-U 3965 Core Processor
System Memory	DDR4 SO-DIMM slot x 1, max 16 GB
Storage Device	SATA storage x 1
Power Supply	12V DC power adaptor, 100W
Built-in Printer	3” detachable printer w/auto cutter, 250 mm/sec (max.)
OS Support	Windows 10 IoT 64 bit

Display & Touch
LCD	9.7" TFT LCD
Resolution	1024 x 768
Touch	True-flat PCAP touch with 10”pts multi-touch support (IP65 on front panel)

I/O Expansion
Serial Port	3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port	Yes
Standard USB Port	USB 2.0 x 4
LAN Port	10/100/1000 Mb x 1
Display Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable
PS/2 Port	Yes
Audio	Line-out x 1
Expansion Slot	M.2 x 1

Physical Dimension
Dimension (W x D x H in mm)	244.5 x 198 x 434
Weight (N. W. in kg)	4.2

Environmental
Operating Condition	0°C - 40 °C, 20%RH – 90%RH (Equipped with HDD) ; 0°C - 50 °C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition	-20°C - 70°C, 10%RH - 90%RH

Built-in Options
MSR	3 tracks ISO or JISII (HID/VCOM selection)
Finger Print Sensor	Optical type
WiFi	M.2 WiFi/BT module
RFID Reader	Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner	2D barcode scanner
iButton	Yes
4G Communication	Single SIM slot
