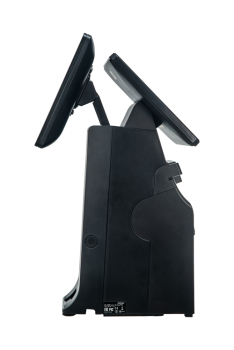

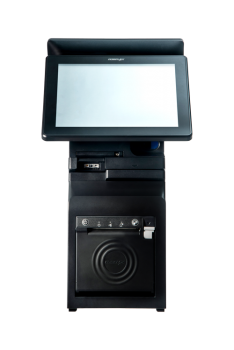

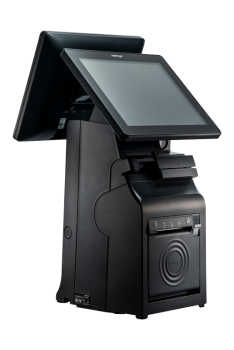

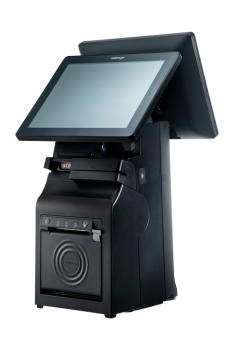

Posiflex HS-3410A All In One POS

Make an enquiry

Overview

The HS-3410A is the best value option for stores where the counter space needs to be maximized smartly. It is an Android-based all-in-one POS featuring a detachable printer for easy maintenance and can be integrated with the most widely used peripheral options in daily POS operation.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Rockchip RK3568, Quad-core Cortex A55 up to 2.0GHz
  • DDR4 4GB or 8GB
  • 32 GB to 128 GB eMMC + microSD slot x 1
  • PP-7900, 3" speedy thermal printer, 250 mm/sec (max.)
  • Android

Compact

  • Space is money; the HS-3410A creates more precious counter space to display and to promote more merchandise, thus increasing profit returns for the store owner.

All-in-one

  • As an “all-in-one” solution, the HS-3410A offers great benefits while still maintaining adequate performance with its ARM based quad-core processor.

Aesthetics

  • With stylish touches added throughout, the HS-3410A is not just a piece of machinery; it is an elegantly crafted piece of art that looks right at home in any store decoration.
System Configuration
Processor Rockchip RK3568, Quad-core Cortex A55 up to 2.0GHz
System Memory DDR4 4GB or 8GB
Storage Device 32 GB to 128 GB eMMC + microSD slot x 1
TPM N/A
Power Supply 24V/60W
Built-in Printer PP-7900, 3" speedy thermal printer, 250 mm/sec (max.)
Built-in WiFi N/A
OS support Android 11*
Display & Touch
LCD 9.7" TFT LCD
Resolution 1024 x 768
Touch True-flat PCAP touch with multi-touch support
I/O Expansion
Serial Port DB9 x 2, 5V/12V support on all COM ports
Parallel Port N/A
Standard USB Port 3, USB 3.0 x 1 + USB 2.0 x 2
OTG USB Micro-USB x 1 (OTG and USB 3.0 HOST feature are selected by DIP SW)
LAN Port 10/100/1000 Mb x 1
Display Port HDMI x 1 , SDK available for software integration
CR Port 1, controlling 2 CR (24V drive)
PS/2 Port N/A
Audio 2W speaker x 1+ lineout x 1
Expansion Slot Mini-PCIe slot x 1
Physical Dimension
Dimension (W x D x H in mm) 244 x 210 x 437
Weight (N. W. in kg) 4.2
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi Mini-PCIe WiFi/ BT module
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
RFID Reader Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner 2D barcode scanner
iButton Yes (cannot coexist with Fingerprint Sensor)
4G / LTE Communication Single SIM slot, selected band support
Attachment Options
POS Monitor Non-touch TFT LCD: 7"/9.7"/12.1"; PCAP touch TFT LCD: 9.7"
Line Display 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display;
Note Google Play services is not supported by this device.
* Product specifications and model configurations are subject to change and may vary by global region.
