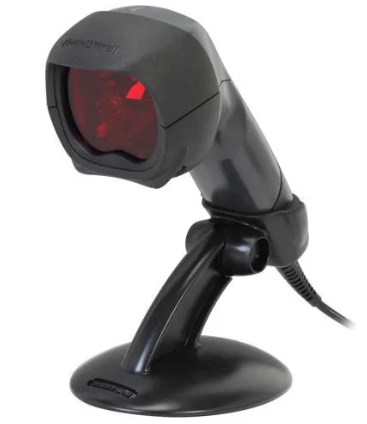

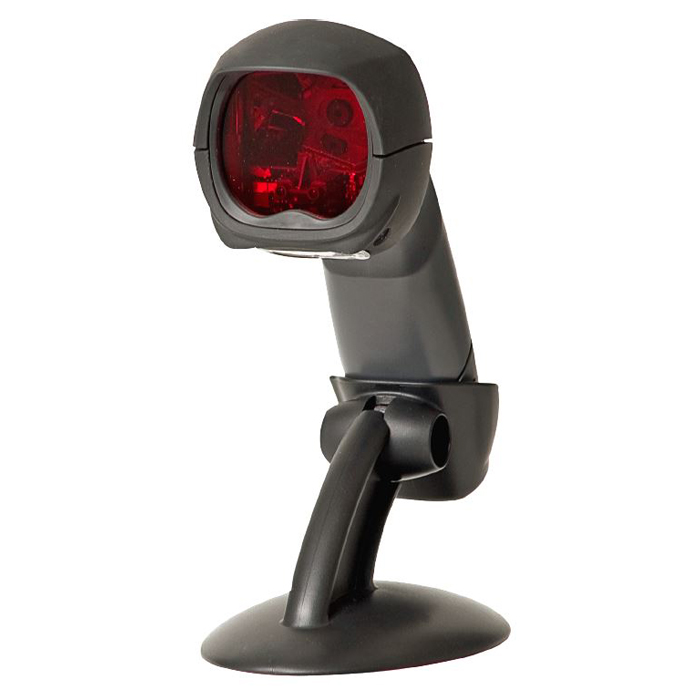

Honeywell Fusion 3780 Handheld/Hands-Free Scanner

Overview

The Fusion 3780 is an affordable handheld devices that provides omnidirectional laser scanning plus single-line scanning capability for standard 1D and GS1 DataBar symbologies. The device’s 20-line scan pattern provides superior scanning over existing single line handheld scanners making it ideal for medium-volume retailers, including speciality stores, pharmacies, liquor stores, and convenience stores. Part of our Honeywell collection of scanners.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Omnidirectional Laser Scanner
  • Sleep Mode With IR Wake Up:
  • Automatic In-Stand Detection:
  • Designed to withstand multiple 1.5 m (5´) drop
  • USB

The Fusion 3780 is an affordable handheld devices that provides omnidirectional laser scanning plus single-line scanning capability for standard 1D and GS1 DataBar symbologies. The device’s 20-line scan pattern provides superior scanning over existing single line handheld scanners making it ideal for medium-volume retailers, including specialty stores, pharmacies, liquor stores, and convenience stores.

The Fusion 3780 scanner also offers attractive features and options that increase operator control, productivity and ease of use even further.

  • Patented CodeGate™ technology lets you easily target the desired barcode and complete data transmission with the press of a single button.
  • Automatic in-stand operation lets you scan barcodes hands free.
  • The adjustable stand features 50 degrees of tilt and three locking positions so your cashiers can position the scanner for their individual comfort and optimal performance. Stabilized with a weighted metal base; hard-mount the stand to a checkout counter or wall.
  • Optional integration of RF EAS Antenna increases efficiency by letting you simultaneously deactivate RF EAS tags and decode barcodes.
  • Standard features such as Flash ROM, MetroSelect™ and MetroSet™2 programming, and user replaceable cables protect your investment by enabling the Fusion 3780 scanner to grow with you and your application needs.

ously deactivating RF EAS tags and decoding barcodes.

MECHANICAL
Dimensions (LxWxH) 189 mm x 65 mm x 73 mm (7.4 in x 2.6 in x 2.9 in)
Weight 195 g (6.9 oz)
ELECTRICAL
Input Voltage 5 VDC ± 0.25 V
Operating Power 1.4 W (275 mA @ 5 V)
Standby Power 1.0 W (200 mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
ENVIRONMENTAL
Operating Temperature -20°C to 40°C (-4°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand multiple 1.5 m (5 ft) drop
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
SCAN PERFORMANCE
Scan Pattern Omnidirectional: 5 fields of 4 parallel lines; Button activated single line
Scan Speed Omnidirectional: 1,333 scan lines per second; Single line: 67 scan lines per second
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 3 year factory warranty
