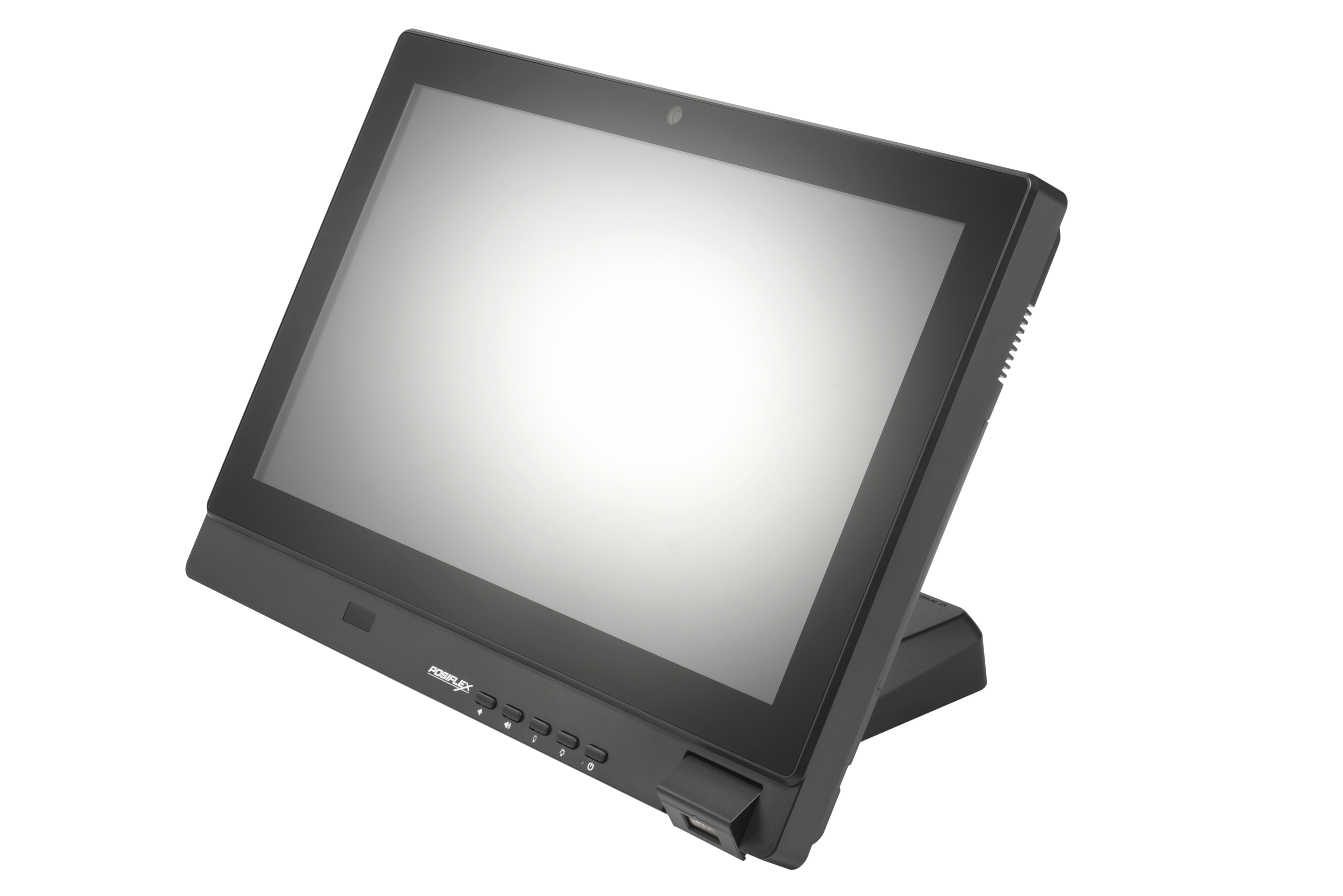

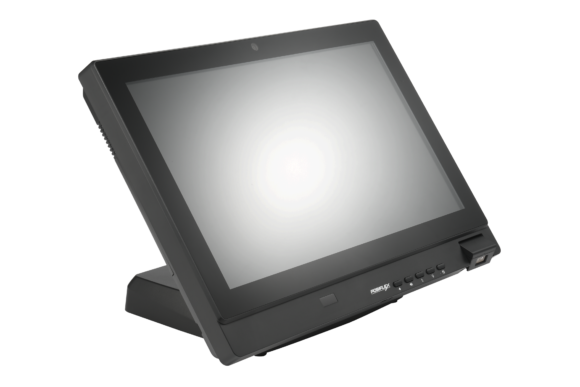

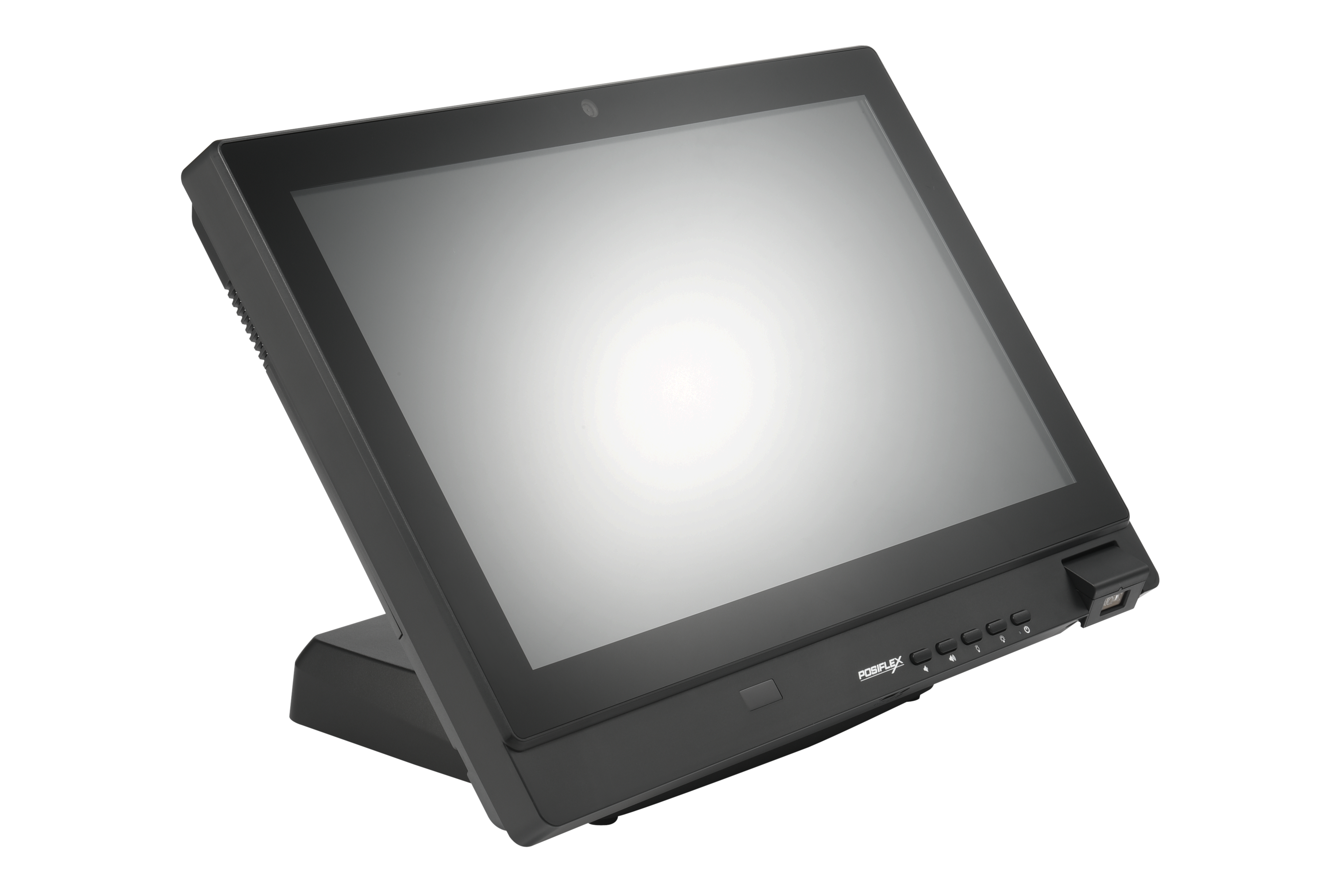

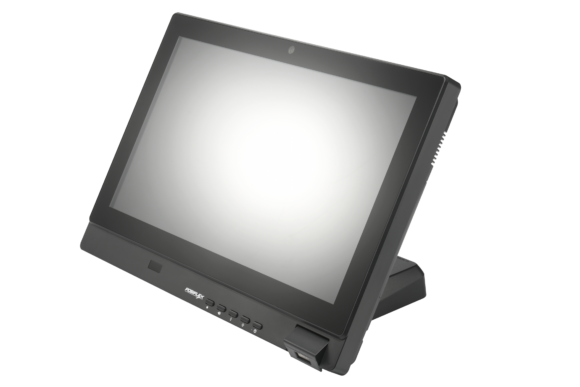

Posiflex HC-1521P-Pro high-end infotainment terminal

Overview

The HC-1521P-Pro is a high-end infotainment terminal with a 21.5 PCAP touch screen display. Well-suited to meet durability and aesthetic requirements. The HC-1521p offers real versatility for a variety of interactive solutions including self-service kiosks, kitchen display systems, and healthcare computing solutions. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
  • 21.5” wide screen
  • OS: Windows 7/POSReady 7/Windows Embedded 8.1 Industry/ Windows 10 IoT/Linux per request
  • max. 8GB RAM

Slim and Fanless Design
Clean lines and contemporary look of the HC-1521P Series enhances customers’ perception of the brand image. More than just visual appeal, its patented fanless architecture allows the terminal to run in harsh or high-traffic environments and under near-silent operation.

Comfortable Viewing Experience
Offered in 21.5” wide screen format (16:9), the HC-1521P Series provides spacious area, allowing more content to be displayed. The full high definition (FHD) LCD display brings clarity to the viewing experience.

Flexibility for Every Demand
It can be customized for each specific usability requirements – in a kiosk, on a pole with mounting and hardware options.

High Performance, Multifunction
The HC-1521P Series offers a wealth of peripheral options, including built-in camera, optional TV tuner, 2D barcode scanner, 3 in 1 module of MSR, RFID and Fingerprint reader and price checker kit. The integrated, versatile design with rich I/O ports extends function delivering high performance, and eliminates issues with device compatibility.

Applications

Retail
Self-service i.e. Price Checker
Interactive Kiosk
Advertising

Food Service
Self-ordering kiosk
Kitchen Display System (KDS)
Advertising

Healthcare
Point-of-Information
Bedside Terminals

Specification HC-1521P
Processor Intel Haswell Core i5-4570TE CPU, up to 3.30 GHz, 4M Cache
System Memory DDR3L SO-DIMM x 2, max. 16GB in 2 slots
Storage Device SATA x 1 + mSATA x 1
Intel vPro Support Yes
Power Supply 12V/100W
OS Support Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Display & Touch
LCD 21.5” TFT LCD
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Serial Port 4, DB9 x 4, 5V/12V support on all COM ports
Standard USB Port 7, USB 3.0 x 2+ USB 2.0 x 5
LAN Port 10/100/1000 Mb x 2
Display Port VGA x 1 + HDMI x 1, 12V support on VGA port for Posiflex monitors
Camera Front facing, 5MP, auto focusing
Audio Internal 3W speaker x 2 + Mic-in/Line-out
Expansion Slot Mini-PCIe slot x 2

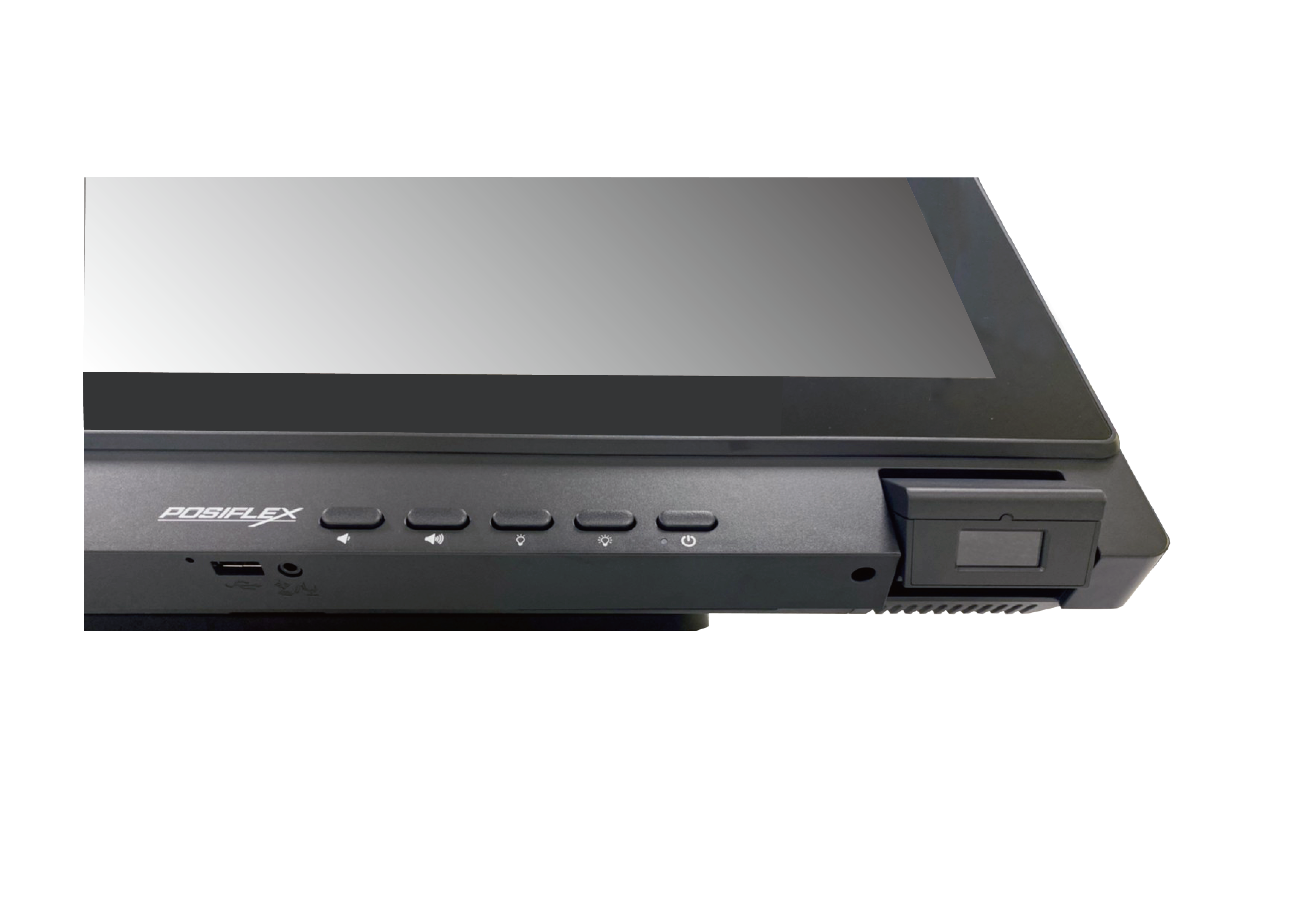

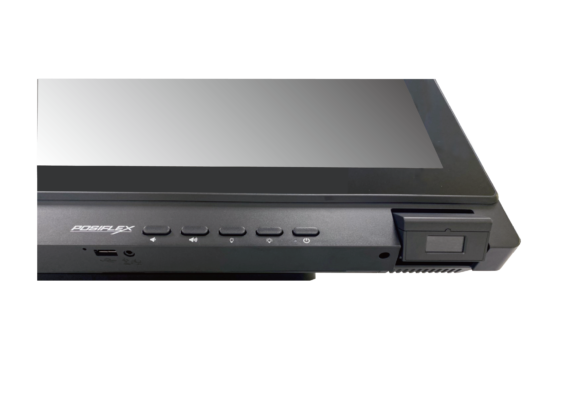

Hotkeys Volume up, volume down, brightness up, brightness down, power (hotkeys lockable)
Physical Dimension
Dimension (W x D x H in mm) 547 x 61 x 377
Weight (N. W. in kg) 6.6
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD); 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi Mini-PCIe WiFi/BT module
Scanner 2D barcode scanner
Attachment Options
Peripherals MSR; iButton; RFID; Fingerprint Sensor; Price Checker Kit (with wall mount bracket + 2D barcode scanner)
Standalone Options TV tuner
