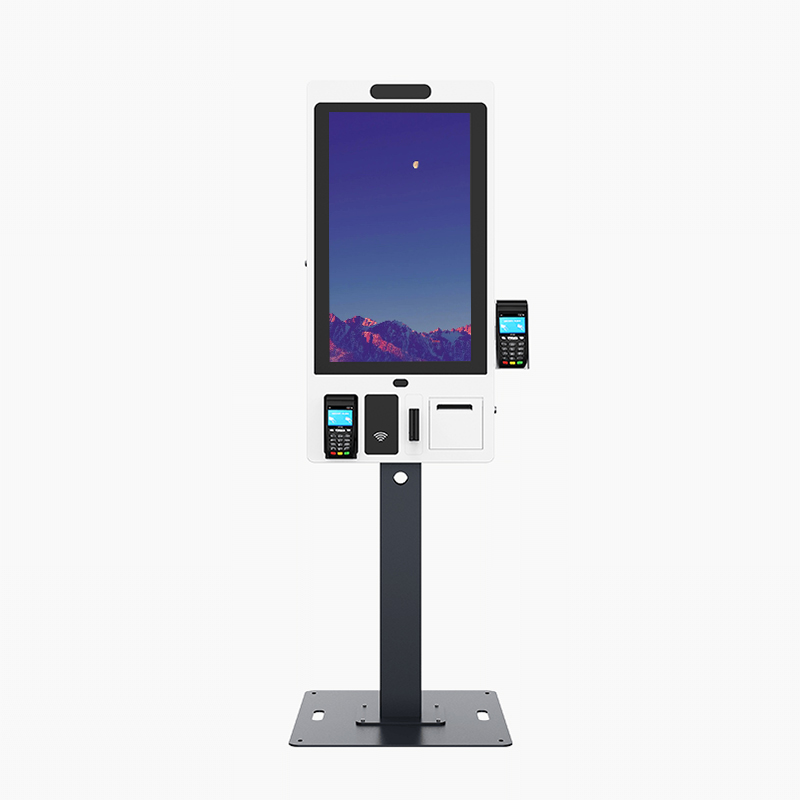

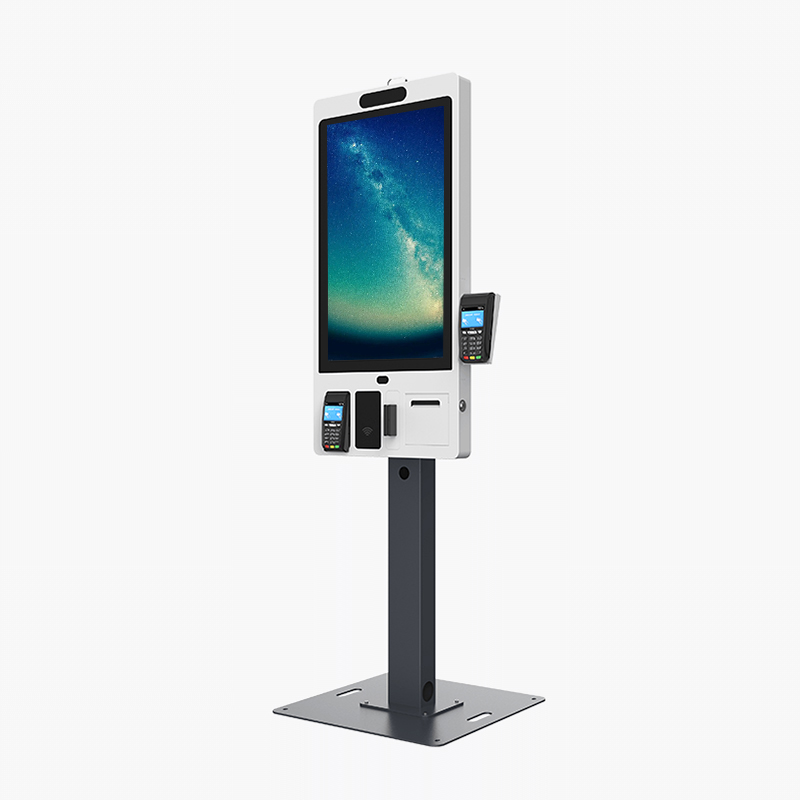

FPK32 32" Self-Service Kiosk

Overview

The FPK32 is a 32" self-service kiosk. Designed in a modular fashion with a sleek and modern look the FPK32 kiosk is perfect for retail and hospitality settings. In addition, the FPK32 kiosk hosts a variety of features such as an inbuilt thermal printer and scanner.  Part of ForPOS' wide range of kiosk solutions.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 32" FHD industrial-grade LCD with PCAP touch panel
  • Modular design - printer, scanner and camera
  • Optional logo light, status indicator and proximity sensor
  • 1 x mSATA SSD 128GB

The FPK32 offers a wide variety of features:

  • 32″ FHD industrial-grade LCD with PCAP touch panel;
  • Modular design, printer, scanner, camera, NFC,
  • MSR or customized devices;
  • Optional logo light, status indicator and proximity sensor;
  • Mini-PC box design for swap service purpose,
  • support Windows and Android;
  • Standard I/O ports connection;
  • Sturdy pedestal, able to support two kiosks, wall mount optional;
  • Lock (for kiosk chassis and printer) strengthens safety;
  • Invisible, neat and safe cable management;
  • Splashproof and dust-prevent design, excellent cooling system
Specifications
CPU Support Intel Celeron J1900, Intel Core i3-6100U, Intel Core i5-6200U
System Memory 1x DDR3,SO-DIMM, 4GB, Max.8GB / 1x DDR4, SO-DIMM, 4GB, Max.16GB
Storage Device 1x mSATA SSD 128GB (64GB/256GB Optional)
Power 1 x 12V-7A/84W + 1 x 24V-2A/48W
OS Support Windows 10
LCD
Size 32" TFT LCD Panel
Brightness 400cd/m²
Resolution 1920*1080
Touch Screen True-Flat Projected Capacitive Touch
External I/O Port
USB 2 x USB 3.0 + 6 x USB 2.0
Serial Port 2x RJ50 + 1x DB9
DC-IN 1 x DC-IN
DC-OUT 1 x DC-OUT
VGA 1 x VGA
HDMI 1 x HDM
LAN 2 x LAN 10/100/1000Mb
Audio 1 x Audio 3.5mm earphone connector, Support Line-Out & Line-In
Standard Components
Printer 80mm thermal printer,auto cutter, 170mm/sec (max.)
Camera 5MP Single camera /5MP Dual camera Optional
Proximity Sensor 60-80cm Proximity Sensor
Speaker 2 x 2w Speaker
Environment
Operating Condition 0°C - 50°C,20%RH - 90%RH
Storage Condition 20°C - 70°C,10%RH - 90%RH
Physical Dimension
Principal machine 1176*656*248mm/36.8Kg
Column 1305*305*265mm/18.5Kg
Chassis 698*693*70mm/18.1Kg
