ForPOS FP-100 12/24V Standard Cash Drawer

Make an enquiry

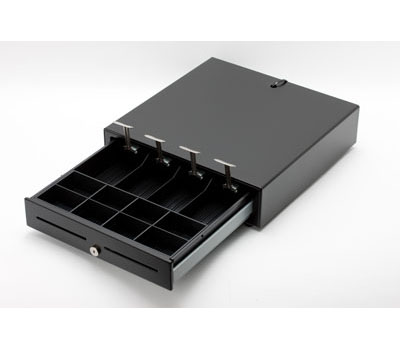

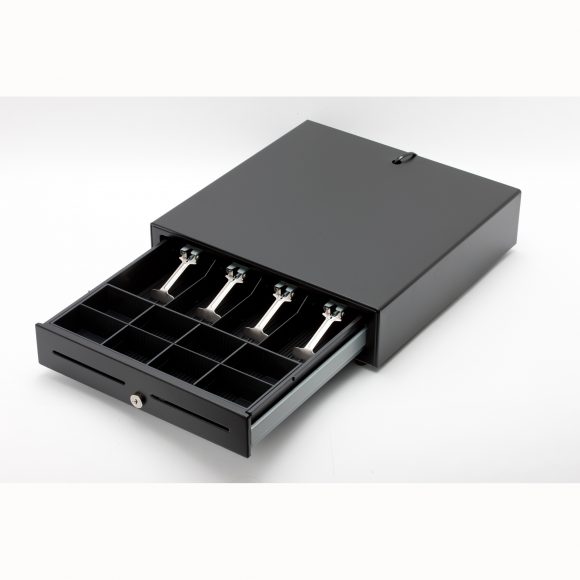

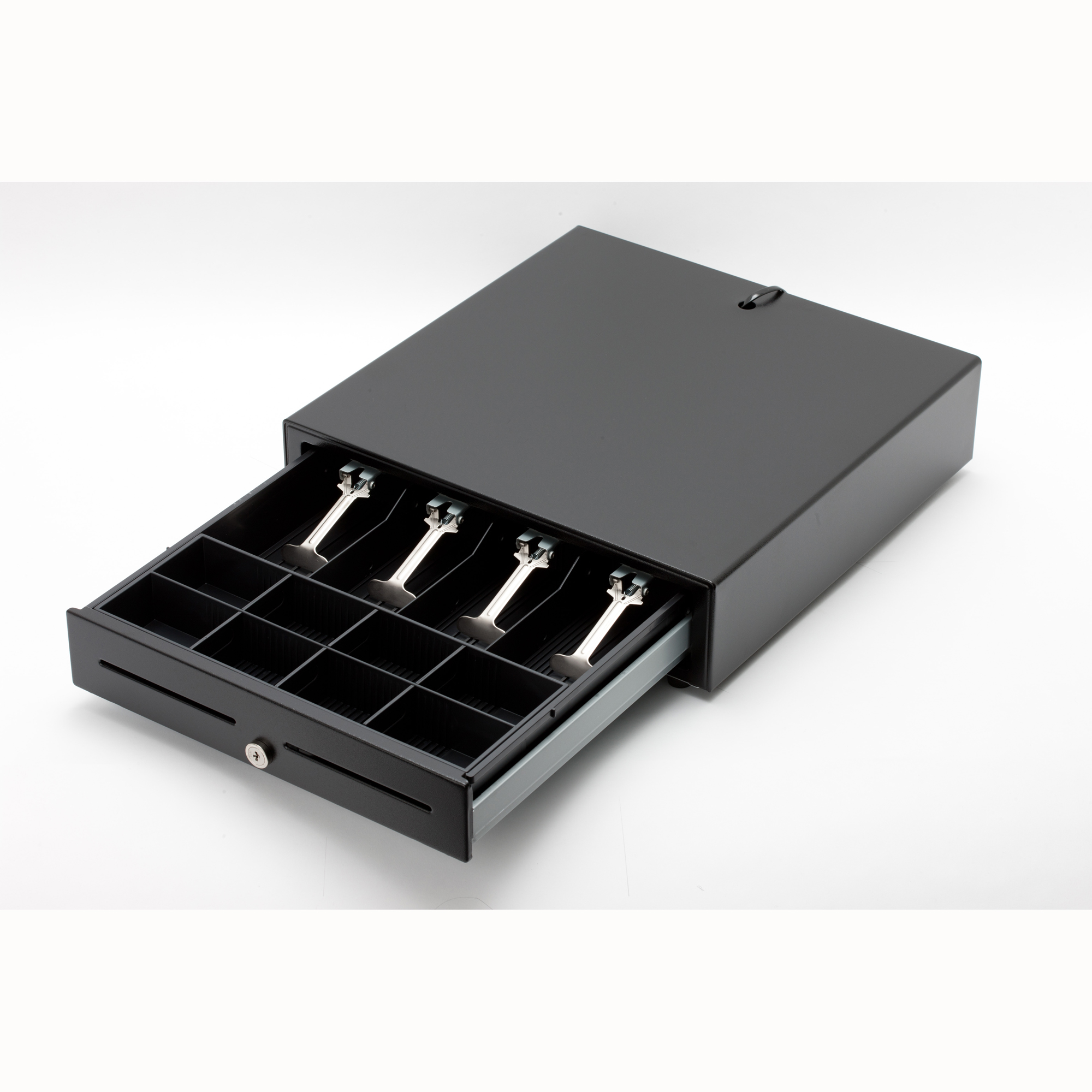

ForPOS FP-100 12/24V Standard Cash Drawer

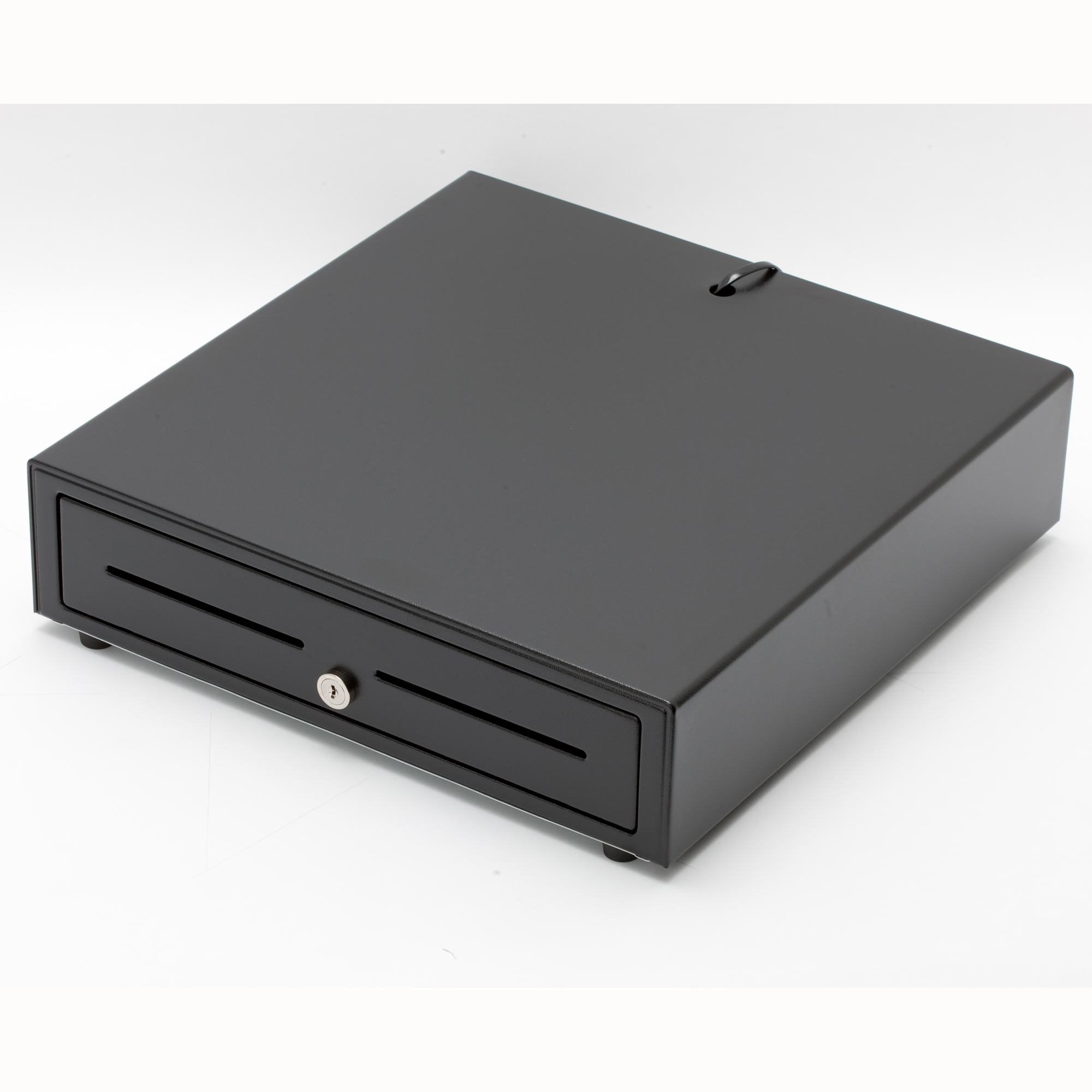

FP-100 Standard Cash Drawer closed

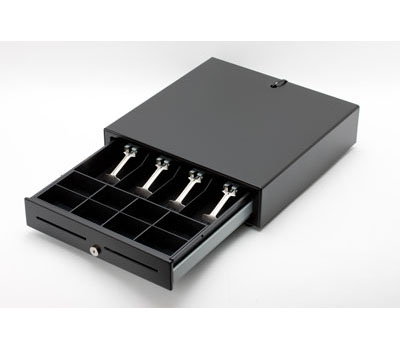

FP-100 Standard Cash Drawer with insert

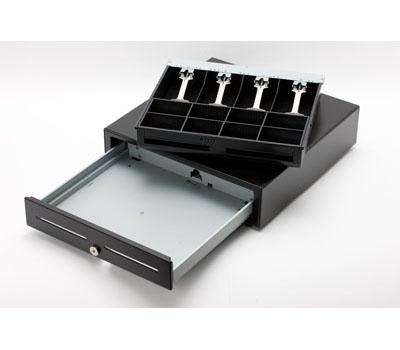

ForPOS FP-100 Standard Cash Drawer Insert

Overview

The FP-100 standard cash drawer is a cost effective, quality and dependable cash drawer and a popular choice for most ForPOS bundles. In addition, this cash drawer is robust and ideal for retail, hospitality, charities and leisure environments.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Standard Cash Drawer
  • 12/24V
  • 4 bills, 8 coin slots and 1 cheque slot
  • Metal T-note clips

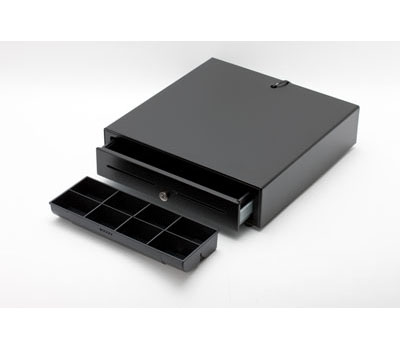

  • Removable inner coin tray
  • Various key lock combinations
  • Lockable lid available

The FP-100 cash drawer has an aluminium rail with nylon wheel release type. Featuring metal T-note clips (metal wire grippers available on request), 1 cheque slot, 4 bills, 8 coin compartments, a removable inner coin tray insert and 8 key lock combinations.
Spare key sets are available for various key lock combinations. Lockable lids and inserts are available for security.
This cash drawer can be mounted under a counter top to maximize counter space. Under counter mounting brackets are available.

The connector cable exits from the top of the cash drawer at the back and is 1.5M. EPSON RJ-12-6 Pins (solenoid: 2&4, Micro-Switch 3&6, Earth: 1 Removed: 5).

Specification
Drawer Type Standard Cash Drawer with Two Media Slots
Dimensions (inch) 16.1"W X 16.3"D X 3.9"H (inch, without Feet)
Dimensions (mm) 410W X 415D X 100H (mm, without Feet)
Panel Steel
Casing Thick gauge cold rolled steel & SECC
Finish Scratch Resistant Textured Hybrid Powder Coat
Roller Wear-resistant Plastic Rollers
Slide Steel Slide
Bill Clipper Metal T-bar
Currency Layout 4 Bills, 8 Coins\ Adjustable Dividers\ Removable Coin Tray
Media Slot 2
Key Lock 20 Key Combinations; Three -position Lock: Locked Open/ Closed, Electronically Driven
I/O Interface 12V \ 24V for RJ11 \ RJ12
Emergent Release Emergent release lever on the Chassis of drawer
Micro Switch Cash Drawer Status Micro Switch
Durability 1 Millions
Dimensions: 410mm (W) x 415mm (D) x 100mm (H) (without Feet)
Weight 6.8kg

Accessories

DT105U cash drawer trigger

DT105U

  • Connects cash drawer directly to computer via USB
  • DT105U opens cash drawer when it receives trigger command from PC
  • Compatible with 12V Cash Drawer and printer
  • USB Interface
FP-100 Standard Cash Drawer Brackets

FP-100 Brackets

  • Under counter mounting
  • Maximises counter top space
  • For ForPOS FP-100 cash drawer
FP-100 Standard Cash Drawer Keys Set

FP-100 Keys Set

  • Key set - 2 Keys
  • For ForPOS FP-100 Cash Drawer
FP-100 Standard Cash Drawer Lock & Key Set

FP-100 Lock & Key Set

  • Lock and Key set
  • For ForPOS FP-100 Cash Drawer

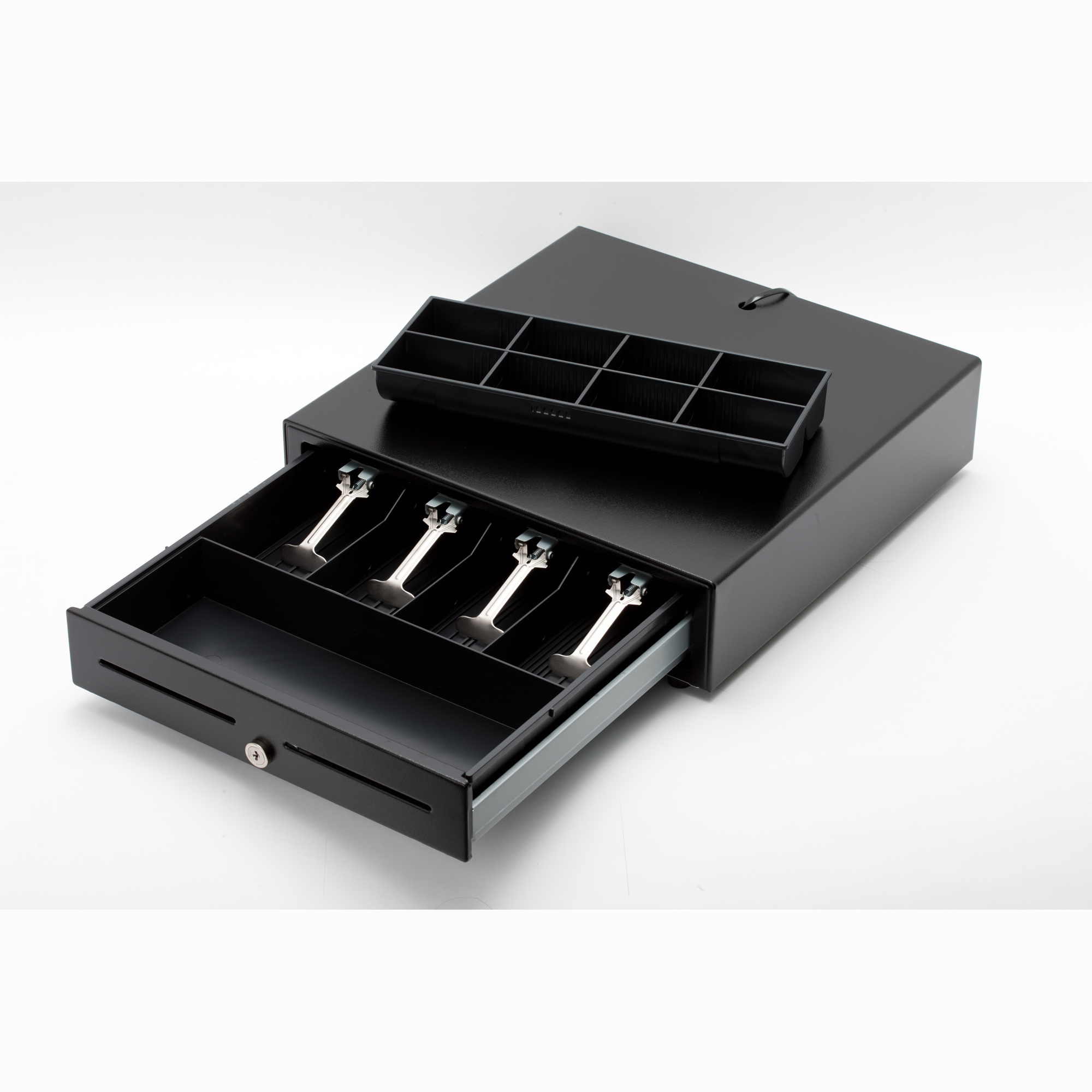

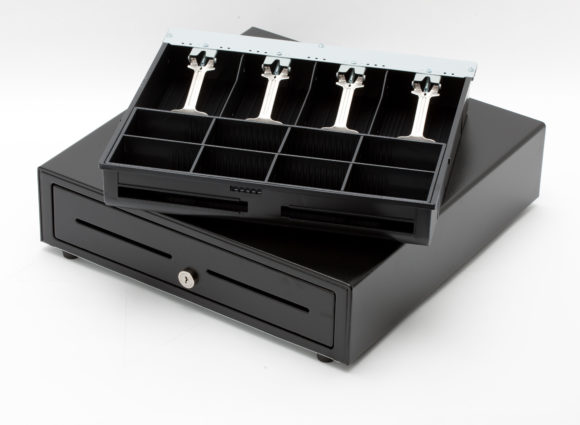

ForPOS FP-100 Standard Cash Drawer Insert

FP-100 Insert

Cash drawer insert/ money tray for ForPOS FP-100 standard cash drawer.
