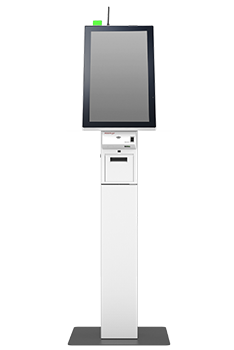

Posiflex EK-2150 21.5" Self Service Digital Kiosk

Make an enquiry
Posiflex EK-2130 21.5" Self Service Digital Kiosk

Overview

Posiflex EK-2150 21.5" Self Service Digital Kiosk. Posiflex EK-2100 Series is a 21.5”-display digital kiosk with a stylish and functional design that will blend seamlessly in any retail environment. Part of the Posiflex EK Series Digital Kiosks. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 21.5" True-flat PCAP touch
  • Intel 7th Generation Kaby Lake U Core i3/i5
  • 64Gb SSD as standard
  • Up to 16GB RAM
  • Status Indicator
  • Proximity Sensor
  • Camera
  • Printer

Available in portrait or landscape mode, EK-2100 Series can serve as an Ordering/Queue Kiosk/Information Kiosk to interact with customers and simultaneously help retailers to drive more demand and business.

Stylish and Intelligent Design
With its sleek, intelligent and attractive design, EK-2100 Series not only attracts customers’ attention, but also delivers uncompromised performance.

Reinventing Customer Experience
With display options available in portrait or landscape mode, EK-2100 Series meets the demands of your business while reinventing the perfect customer experience.

Flexible Configurations
Offering choices of floor-standing or counter-top, EK-2100 Series is suitable for any self-service application and gives your business a competitive advantage.

Adaptable and Customizable
Equipped with a wide array of choices of peripherals including NFC/RFID reader, 2D scanner, and a bracket for EMV payment devices, EK-2100 Series is able to fulfill with self-service tasks.

Specification
Processor Intel 7th Generation Kaby Lake U Core i3/i5
System Memory DDR4 SO-DIMM slot x 1, max. 16 GB
Storage Device SATA SSD x 1
Intel vPro Support Core i3: N/A Core, i5: Yes (for option)
TPM Support Yes (for option)
Power Supply 12V/60W x 1 + 24V/60W x 1
OS Support Windows 10 IoT 64 bit
Serial Port 3, DB9 x 1 + RJ50 x 2
Standard USB Port 8, USB 3.0 x 1 + USB 2.0 x 7
OTG USB N/A
Display Port HDMI x1
LAN Port 10/100/1000 Mb x 2
Audio Internal 3W speaker x 2
Internal Expansion Slot M.2 x 1
Display & Touch
LCD 21.5"
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support
Physical Dimension
Dimension (W x D x H in mm) Countertop version (Portrait): 395 x 395 x 774, Floorstanding version (Portrait): 500 x 500 x 1548
Weight (N. W. in kg) Countertop version: 22.6, Floorstanding version: 34.8
Operating Condition 0°C ~ 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Standard Components
Status Indicator RGB Color LED Indicator (for portrait mode only)
Proximity Sensor Range from 60 cm to 100 cm
Camera 1MP wide angle camera
Printer 3" thermal printer w/auto cutter, 200 mm/sec (max.)
Optional Components
WiFi M.2 WiFi/BT module
Scanner 2D barcode scanner
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices
NFC/RFID Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-180
4G LTE Support selected bands & countries with full SIM slot (mini-PCIe module) by request
** The product information and specifications are subject to change without prior notice.
