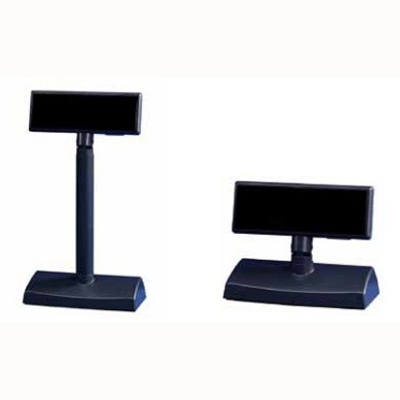

DSP840 Universal pole display

Overview

DSP840 Universal Pole Display is a simply designed POS system peripheral device. The SP840 is  also capable of displaying advertising messages or any messages controlled by the host computer.

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Universal pole display
  • RS232 (serial) connector or USB Interface
  • Display format 40 characters (20 x 2)
  • Blue-green VFD provides wide viewing angle
  • Capable of displaying purchased items, prices, quantities and advertising messages
  • Adjustable height

The DSP840 is a multi-purpose universal free standing two line customer display, ideal for running advertising messages, displaying product information, pricing and quantities. The DSP840 plugs into the serial port of most EPOS terminals. This customer pole display is equipped with three poles to adjust height positions (low, mid-low, mid-high and high). The DSP840 can be fixed to a desktop by screws and is able to display 40 characters (20 x 2).

Display
5 x 7 dot matrix, blue-green VFD
Number of characters: 40 (20 columns x 2 lines)
Character size: H9 x W6 mm
Character type: Alphanumeric
View area: H22.4 x W164.1mm
Power supply: DC 12V, 500 mA
Dimensions
Display unit: W230 x H85 x D42mm
Base stand: W235 x H47 x D115mm
Total height: Low – 182.5mm Mid-low – 312.5mm Mid-high – 427.5mm High – 557.5mm
Tilt angle: up to 30 degree
Horizontal rotation: 300 degrees
Interface options
RS-232 interface with Baudrate selectable 600~38400
USB
